23375 - Toro 21" Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

21" Walk-Behind Mower

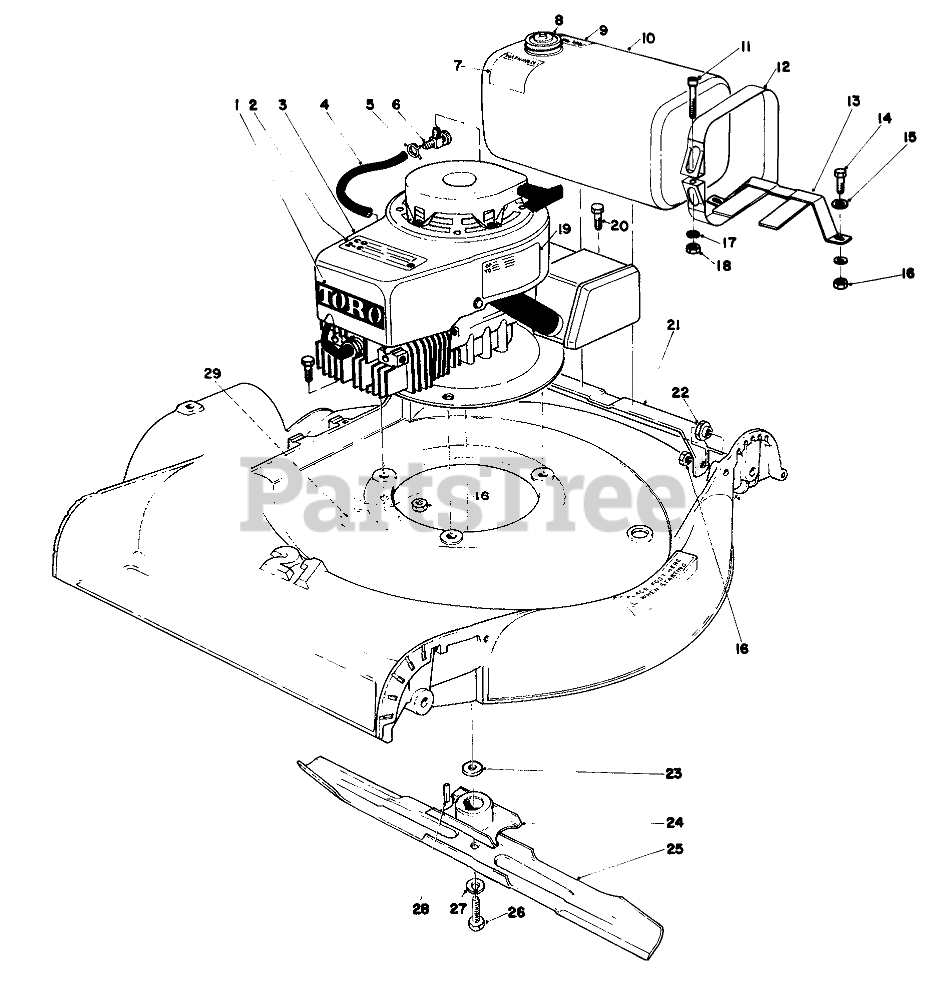

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-0810

Decal

$

$

Not available

2

Toro 37-4560

DECAL COMM 2 CY ENG

$

$

Not available

3

Toro 221-671

Engine

$

$

Currently unavailable

4

Toro 36-8930

GAS HOSE

$

$

Not available

5

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

6

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

7

Toro 2210-241

WARNING DECAL W ENG

$

$

Not available

8

Toro 222-15

Cap

$

$

Not available

9

Toro 2210-242

FUEL MIX DECAL W ENG

$

$

Not available

10

Toro 222-14

Fuel Tank Assembly (Incl. Ref. #8)
(Superseded to 52-2331)

$360.99

$

Usually ships in 3-6 days

0

11

Toro 3274-54

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

12

Toro 39-0570

TANK STRAP WA

$123.99

$

Usually ships in 3-6 days

0

13

Toro 39-0550

Tank Bracket

$

$

Not available

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

17

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

19

Toro 37-1280

TORO DECAL

$

$

Not available

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 42-0490

Tank Bracket

$

$

Not available

22

Toro 36-8770

SPACER

$

$

Not available

23

Toro 36-8760

SPACER-BLADE RETAINER

$

$

Not available

24

Toro 36-8800

BLD RETAINER W.A.

$

$

Not available

25

Toro 37-0090

Blade
(Superseded to 8-5230-03)

$33.99

$

Usually ships in 3-6 days

0

26

Toro 3-5246

SPECIAL SCREW

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

28

Toro 21-5070

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

29

Toro 36-8910

Exhaust Baffle

$

$

Not available
