23375 - Toro 21" Walk-Behind Mower (SN: 000000001 - 000999999) (1980) Engine Tecumseh Model No. Tvs 600-661-07 Parts Diagram

21" Walk-Behind Mower

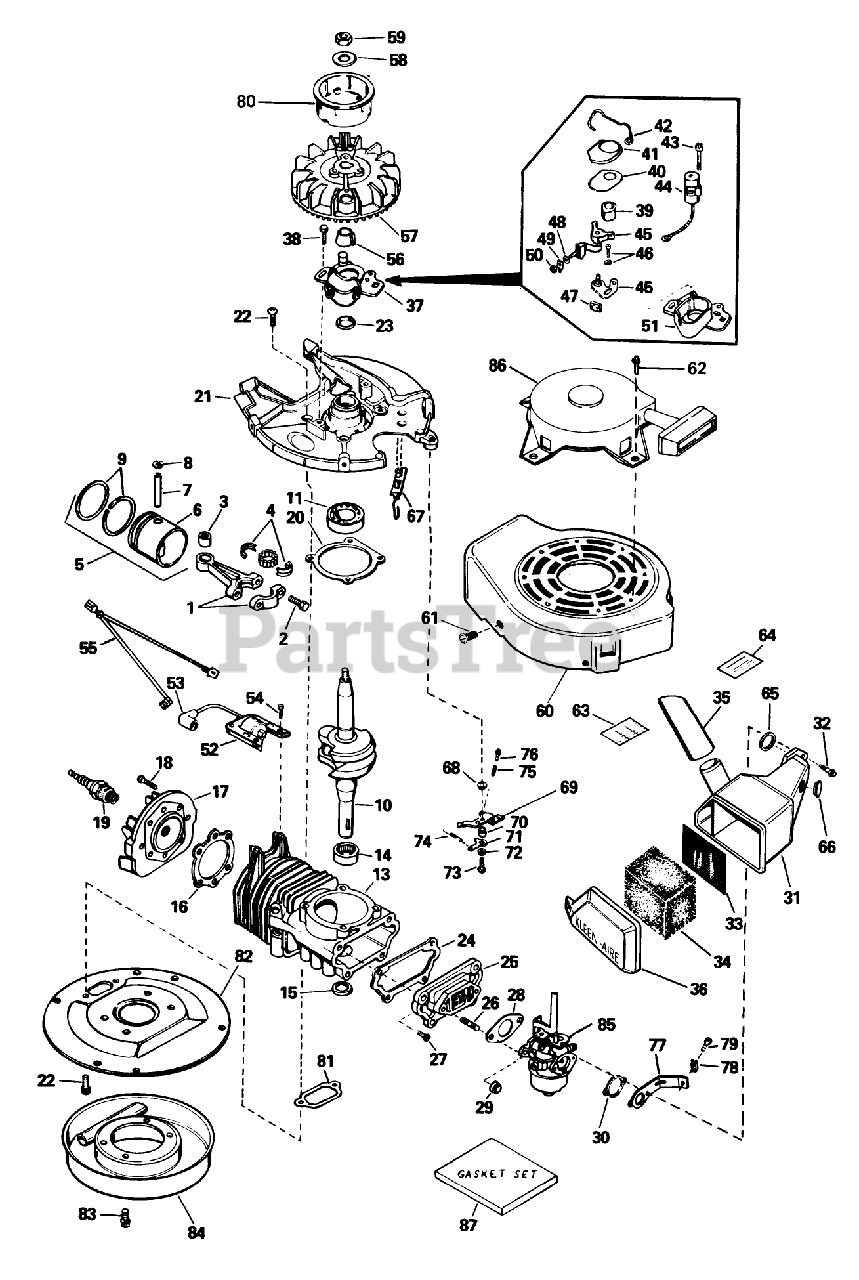

Engine Tecumseh Model No. Tvs 600-661-07 Parts Diagram

  • Title

1

Toro 310263

Rod Assy., Connecting (Incl. Ref. #2, 3 4)

$

$

Currently unavailable

2

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

4

Toro 530151

Bearing Liner Set-Needle

$

$

Currently unavailable

5

Toro 310259

Piston, Pin Ring Assy. (Incl. Ref. #6 thru 9)

$

$

Currently unavailable

6

Toro 310230B

Piston

$

$

Currently unavailable

7

Toro 310178

Pin, Piston

$

$

Currently unavailable

8

Toro 310167

Ring-Retaning

$

$

Currently unavailable

9

Toro 310190

Ring Set

$

$

Currently unavailable

10

Toro 290501

Crankshaft

$

$

Currently unavailable

11

Toro 530110

Bearing-Ball

$

$

Currently unavailable

13

Block Assy., Cylinder (Order short block if replacement is requlred)

$

$

Not available

14

Toro 780097

Bearing, Cartridge

$

$

Currently unavailable

15

Toro 510305A

Seal, Crankshaft

$

$

Currently unavailable

16

Toro 510274

Gasket, Head

Note: Included In Gasket Set Num 510295

$

$

Currently unavailable

17

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

18

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

19

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

20

Toro 510292

Gasket, Shroud Base

Note: Included In Gasket Set Num 510295

$

$

Currently unavailable

21

Toro 350406

Base Assy., Housing (Incl. Ref. #23)

$

$

Currently unavailable

22

Toro 650497

Screw

$

$

Currently unavailable

23

Toro 510319

Seal-Oil

$

$

Currently unavailable

24

Toro 510282A

Gasket, Reed Plate

Note: Included In Gasket Set Num 510295

$

$

Currently unavailable

25

Toro 470149

Plate Assy., Reed (Incl. No. 22)

$

$

Currently unavailable

26

Toro 650700

Stud Carburetor

$

$

Currently unavailable

27

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

28

Toro 510110

Gasket, Carburetor

Note: Included In Gasket Set Num 510295

$

$

Currently unavailable

29

Toro 650457

Locknut

$

$

Currently unavailable

30

Toro 27272

Gasket

$

$

Currently unavailable

31

Toro 450234

Body, Air Cleaner

$

$

Currently unavailable

32

Toro 650806

Screw

$

$

Currently unavailable

33

Toro 450235

Screen, Air Cleaner

$

$

Currently unavailable

34

Toro 450236

Element, Air Cleaner

$

$

Currently unavailable

35

Toro 33008

Tube, Air Cleaner

$

$

Currently unavailable

36

Toro 33007

Cover, Air Cleaner

$

$

Currently unavailable

37

Toro 611006

Stator Plate Assy. (incl. Nos. 107, 111 thru 118 120)

$

$

Currently unavailable

38

Toro 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

39

Toro 30552

Cam, Breaker

$

$

Currently unavailable

40

Toro 610948

Gasket, Dust Cover

$

$

Currently unavailable

41

Toro 610947

Cover-Dust

$

$

Currently unavailable

42

Toro 30551

Spring Breaker Box

$

$

Currently unavailable

43

Toro 610593

Condenser Screw

$

$

Currently unavailable

44

Toro 30548B

Condenser

$

$

Currently unavailable

45

Toro 30547A

Breaker Assy.

$18.99

$

Usually ships in 3-12 days

0

46

Toro 29181

Breaker Screw

$

$

Currently unavailable

47

Toro 30549

Felt,Cam Wiper

$

$

Currently unavailable

48

Toro 610385

Washer

$

$

Currently unavailable

49

Toro 33356

Terminal, Ground

$

$

Currently unavailable

50

Toro 610408

DECAL

$

$

Not available

51

Toro 611008

Stator Plate

$

$

Currently unavailable

52

Toro 34431

Lamination Coil Assy. (Incl. No. 42)

$

$

Currently unavailable

53

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

54

Toro 650814

Screw

$

$

Currently unavailable

55

Toro 611023

Wire, Cut Off

$

$

Currently unavailable

56

Toro 611014

SHIELD

$

$

Not available

57

Toro 611007

FIywheel

$

$

Currently unavailable

58

Toro 650763

Washer-Spring

$

$

Currently unavailable

59

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

60

Toro 350407

Housing, Blower

$

$

Currently unavailable

61

Toro 650356

Screw-Hex, Hd.

$

$

Currently unavailable

62

Rivet (Can be purchased locally)

$

$

Not available

63

Toro 550212

Decal, Fuel Mix

$

$

Currently unavailable

64

Toro 550213

Decal, Warning

$

$

Currently unavailable

65

Toro 34338

Gasket-Cleaner, Air

$

$

Currently unavailable

66

Toro 450237

Plug

$

$

Currently unavailable

67

Toro 610973

Terminal

$

$

Currently unavailable

68

Toro 570422

Washer

$

$

Currently unavailable

69

Toro 570421

Lever, Control

$

$

Currently unavailable

70

Toro 570412

Spacer

$

$

Currently unavailable

71

Toro 570415

Lever, Adjusting

$

$

Currently unavailable

72

Toro 650583

Washer

$

$

Currently unavailable

73

Toro 650544

Screw, Pan Flex Hd.

$

$

Currently unavailable

74

Toro 570417

Spring, Governor

$

$

Currently unavailable

75

Toro 31342

Spring-Compression

$

$

Currently unavailable

76

Toro 650549

Screw

$

$

Currently unavailable

77

Toro 570420

Bracket, Boden Wire

$

$

Currently unavailable

78

Toro 27793

Conduit

$

$

Currently unavailable

79

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

80

Toro 590551

Cup-Starter

$

$

Currently unavailable

81

Toro 510314

Gasket, Exhaust

$

$

Currently unavailable

82

Toro 330175

Ring, Adapter

$

$

Currently unavailable

83

Toro 650797

Screw, Flanged Hex Hd.

$

$

Currently unavailable

84

Toro 390297

Muffler

$

$

Currently unavailable

85

Toro 632170

Carburetor (Incl. Ref. #28)

$

$

Currently unavailable

86

Toro 590420

Starter, Rewind

$

$

Currently unavailable

87

Toro 510295

Gasket Set

$

$

Currently unavailable
