23375 - Toro 21" Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HOUSING ASSEMBLY Parts Diagram

21" Walk-Behind Mower

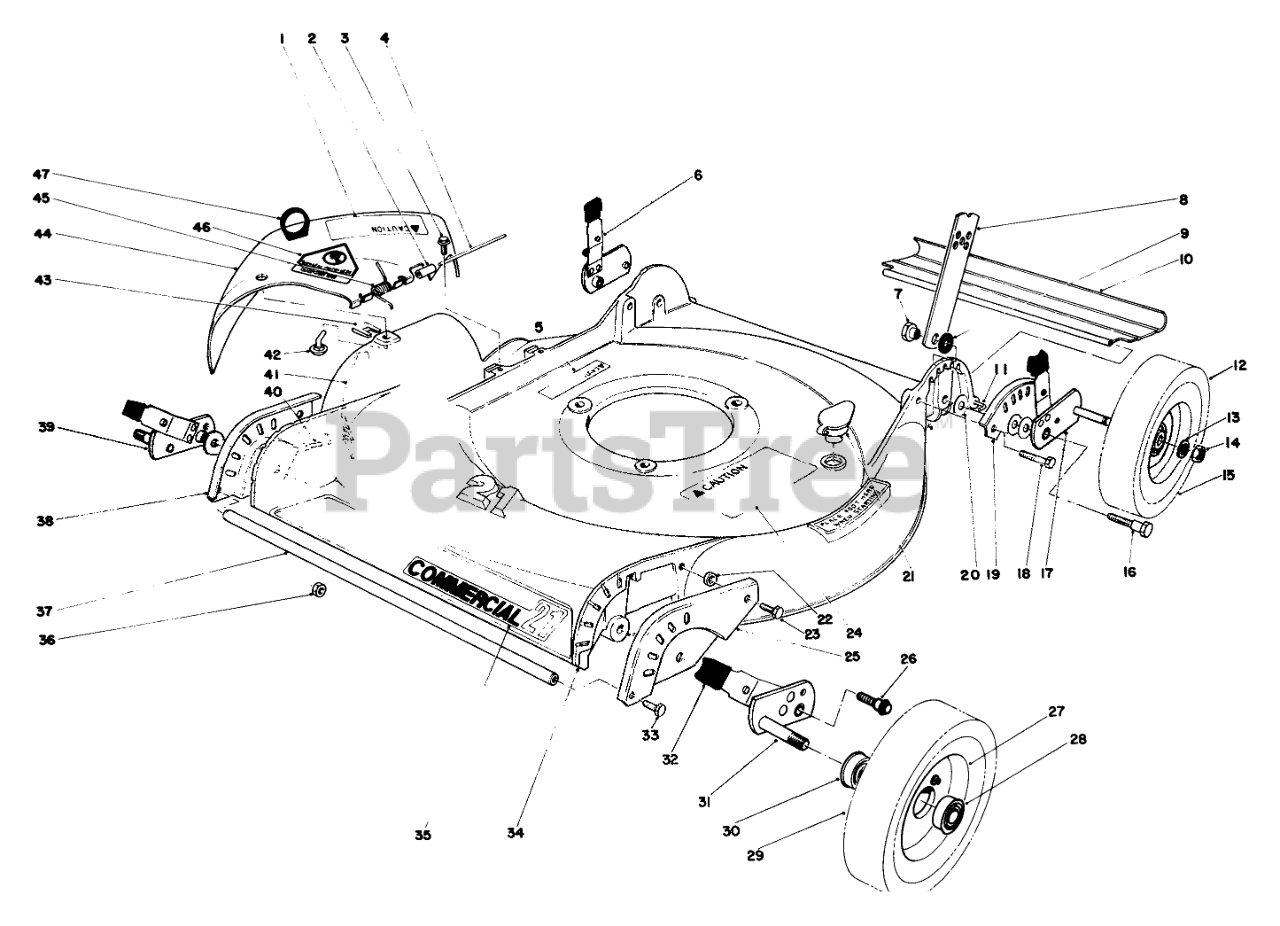

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

2

Toro 28-3270

SLEEVE

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

4

Toro 3-2644

HINGE PIN

$

$

Not available

5

Toro 39-9120

DECAL CAUTION
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

6

Toro 39-2560

PIVOT ARM WA D

$

$

Not available

7

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

9

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

10

Toro 28-3780

SHIELD - TRAILING

$

$

Not available

11

Toro 33-3201

SHIELD ROD

$

$

Not available

12

Toro 39-0020

Wheel Assembly (Incl. Ref. #15, 28 & 30)

$

$

Not available

13

Toro 26-7500

FELT WASHER

$

$

Not available

14

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 17

0

15

Toro 36-8990

Tire

$

$

Not available

16

Toro 28-8880

PIVOT SCREW

$9.49

$

In Stock, only 2 left!

0

17

Toro 39-1510

Pivot Arm "B"

$

$

Not available

18

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

19

Toro 36-8710

Wheel Quadrant L.H.

$

$

Not available

20

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

21

Toro 6-4500

WASHOUT PLUG

$

$

Not available

22

Toro 42-1830

Spacer

$

$

Not available

23

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

24

Toro 29-4720

DECAL SAF INST

$

$

Not available

25

Toro 36-8700

LH WHEEL QUAD FR

$

$

Not available

26

Toro 25-3440

PIVOT SCREW

$

$

Not available

27

Toro 39-0010

Wheel Assembly (Incl. Ref. #28-30)

$

$

Not available

28

Toro 251-282

BEARING

$58.99

$

Usually ships in 3-6 days

0

29

Toro 36-8980

TIRE 7"

$

$

Not available

30

Toro 251-283

BEARING

$

$

Not available

31

Toro 39-2550

Pivot Arm "C"

$

$

Not available

32

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 10

0

33

Toro 32104-38

SELF TAPPING SCREW

$

$

Not available

34

Toro 8-8099

Housing (Incl. Ref. #5, 24 & 35)

$

$

Not available

35

Toro 40-6590

COMMERCIAL DECAL

$

$

Not available

36

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

37

Toro 36-8810

Bumper

$

$

Not available

38

Toro 36-8680

RH WHEEL QUAD FRONT

$

$

Not available

Toro 36-8720

REAR WHEEL QUAD RH

Note: Not illustrated

$

$

Not available

39

Toro 39-1500

PIVOT ARM WA A

$

$

Not available

40

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

41

Toro 12-2990

Bar Safety

$

$

Not available

42

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

43

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

44

Toro 8-3549

Deflector (Incl. Ref. #1 & 46)

$

$

Not available

45

Toro 28-1560

TORSION SPRING

$

$

Not available

46

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

47

Toro 28-1430

LIFT LOOP

$

$

Not available
