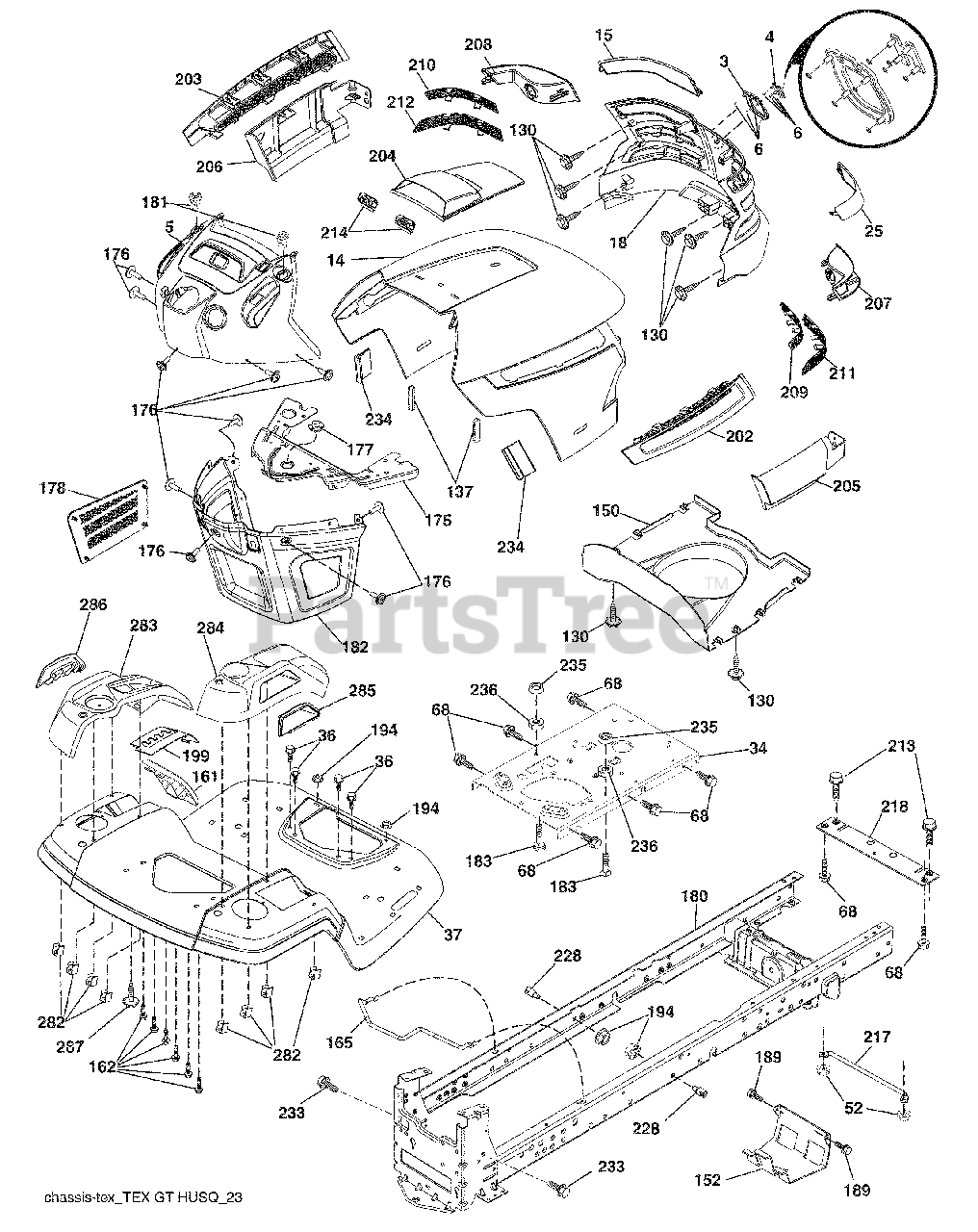

2348 LS (960430077-00) - Husqvarna 48" Lawn Tractor, CARB (2008-11) Chassis Parts Diagram

48" Lawn Tractor, CARB

Chassis Parts Diagram

  • Title

3

Husqvarna 532408606

Trim

$26.99

$

In Stock, only 2 left!

0

4

Husqvarna 532405012

Logo
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 532408698

Dash
(Superseded to 532448437)

$47.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532110452

Nut, Push

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532411046

Hood
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

Lens LH

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 532408607

Grille Asm.

$

$

Not available

25

Husqvarna 532198906

Lens RH

$44.99

$

In Stock, only 1 left!

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532423694

Fender

$107.90

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

137

Husqvarna 532407590

Bumper Dash

$6.49

$

In Stock, Qty 12

0

150

Husqvarna 532198512

Air Duct

$40.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

Shield Browning

$

$

Not available

161

Husqvarna 532409627

Window Fuel
(Superseded to 532439781)

$7.99

$

In Stock, Qty 7

0

162

Husqvarna 532142432

Screw

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

Support Tank Rear

$24.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$24.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$11.99

$

In Stock, Qty 5

0

177

Husqvarna 532195227

Bushing Steering

$6.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

Cargo Net Asm.

$30.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195457

Chassis
(Superseded to 579841501)

$

$

Not available

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo

$

$

Not available

182

Husqvarna 532406859

Dash Lower

$87.99

$

In Stock, Qty 5

0

183

Husqvarna 874780520

Bolt Fin Hex 5/16-18 unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

199

Husqvarna 532413485

Plate Deck Lift

$11.99

$

In Stock, Qty 5

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532416613

Vent Top Hood
(Superseded to 532416615)

$17.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$

$

Not available

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

Husqvarna 532197198

Bezel RH

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

Bezel LH

$

$

Not available

209

Husqvarna 532199130

Insert Hex Top RH

$

$

Not available

210

Husqvarna 532199131

Insert Hex Top LH

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bottom LH

$

$

Not available

213

Husqvarna 874760512

Bolt 5/16-18 unc x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer Tinner

$6.49

$

In Stock, only 2 left!

0

217

Husqvarna 532409167

Rod Pivot

$13.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-Piece Hood Stop

$4.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

Stud Fastner

$

$

Not available

233

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

234

Husqvarna 532404742

Bumper Hood

$6.49

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Lock 5/16-18 unc

$7.49

$

In Stock, only 2 left!

0

282

Husqvarna 532414110

Clip Retainer Console

$6.49

$

In Stock, Qty 20+

0

283

Husqvarna 532418741

Console Deck Lift
(Superseded to 532439151)

$60.99

$

In Stock, only 1 left!

0

284

Husqvarna 532417887

Console Control
(Superseded to 532439150)

$74.99

$

In Stock, only 1 left!

0

285

Husqvarna 532416315

Console Insert RH

$14.99

$

In Stock, only 1 left!

0

286

Husqvarna 532416317

Console Insert LH

$9.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

Screw Hex Washead 1/4-20 x 3/8

$6.49

$

In Stock, Qty 5

0
