235 (235313) - Cub Cadet 20" Snow Thrower (1983) Handle Panel Ass'y Parts Diagram

20" Snow Thrower

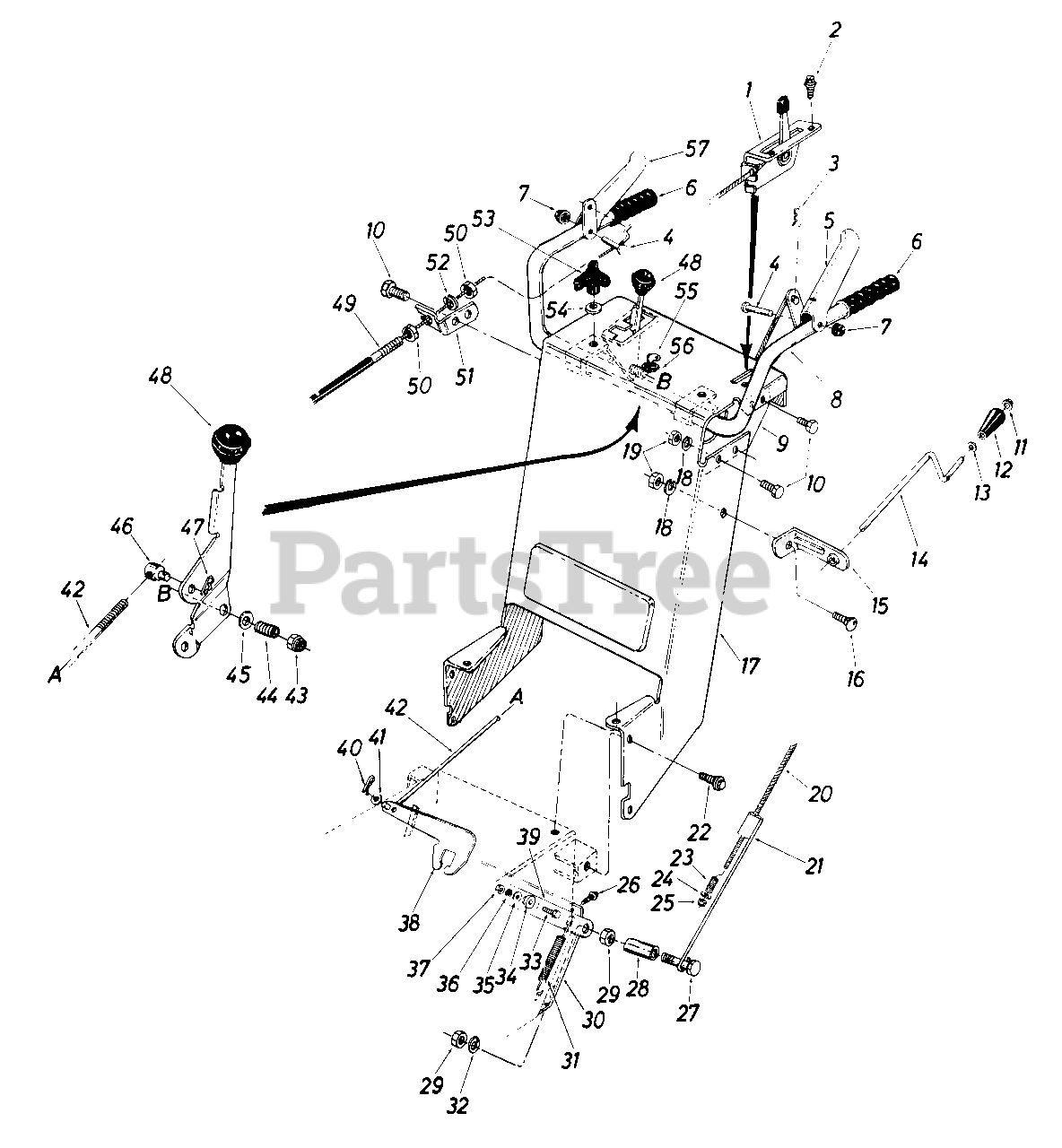

Handle Panel Ass'y Parts Diagram

  • Title

1

Cub Cadet 746-0454

Throttle Control Ass'y. Comp.

$

$

Currently unavailable

2

Cub Cadet 710-0227

Hex Wash. Self-Tap Scr. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 714-0111

Cotterpin 3/32" Dia. x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0705

Clevis Pin .375" Dia. x 1.88" Lg.
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

5

Cub Cadet 05701

Auger Clutch Grip Ass'y. - L.H.

$

$

Currently unavailable

6

Cub Cadet 720-0180

Grip Handle
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

7

Cub Cadet 726-0110

Push Cap .375" Rod - Black
(Superseded to 926-0100)

$

$

Not available

8

Cub Cadet 05803

Handle Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

9

Cub Cadet 05807

Handle Support Brkt.

Note: Color Code - 499

$

$

Currently unavailable

10

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 8

0

12

Cub Cadet 720-0171

Black Knob - 3/8" Dia. Hole
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

13

Cub Cadet 736-0140

Fl-Wash. .385" I.D. x .62" O.D. x .063"

$6.99

$

In Stock, Qty 9

0

14

Cub Cadet 747-0313

Chute Crank .38" Dia. x 35" Lg.

$

$

Currently unavailable

15

Cub Cadet 05818

Chute Control Brkt.

$

$

Currently unavailable

16

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 05958

Handle Panel Ass'y.

Note: Color Code - 499; Code N

$

$

Currently unavailable

18

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0273

Hex Nut 5/16-24 Thread
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 746-0367

Lockout Cable - 30.5" Lg.
(Superseded to 946-0367)

$37.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 05940

Auger Clutch Rod Ass'y.

$

$

Currently unavailable

22

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-0337

Compression Spring

$

$

Not available

24

Cub Cadet 736-0173

Fl-Wash. .28" I.D. x .74" O.D. x .063"

$3.99

$

In Stock, Qty 10

0

25

Cub Cadet 712-0324

Hex Ins. L-Nut 3/18-16 Thread

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0750

Hex Bolt 1/4-28 x 2.5" Lg.

$

$

Currently unavailable

28

Cub Cadet 750-0262

Spacer .38" I.D. x .50" O.D. x 1.44" Lg.

$

$

Not available

29

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 05790

Frame Cover

Note: Color Code - 452

$

$

Currently unavailable

31

Cub Cadet 732-0320

Ext. Spring .38" O.D. x 3.25" Lg.
(Superseded to 932-0320)

$9.99

$

In Stock, only 3 left!

0

32

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

33

Cub Cadet 710-0322

Hex Sems Scr. 5/16-18 x .75" Lg.

$

$

Not available

34

Cub Cadet 748-0233

Shoulder Spacer

$

$

Currently unavailable

35

Cub Cadet 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D. x .125"

$4.49

$

In Stock, only 4 left!

0

36

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

38

Cub Cadet 05962

Shifting Brkt.

Note: Code N

$

$

Currently unavailable

39

Cub Cadet 05559

Thrower Clutch Brkt.

$

$

Currently unavailable

40

Cub Cadet 714-0111

Cotterpin 3/32" Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0264

Fl-Wash. .344" I.D. x .62" O.D. x .063"

$6.49

$

In Stock, only 1 left!

0

42

Cub Cadet 747-0397

Shifting Rod

$

$

Currently unavailable

43

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

44

Cub Cadet 732-0193

Compression Spring .39" 1.0. x .88" Lg.

$4.49

$

In Stock, Qty 8

0

45

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06"

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 711-0677

Ferrule - Engagement
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

47

Cub Cadet 714-0111

Cotterpin 3/32" Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 05805

Shift Handle Ass'y.

$

$

Not available

49

Cub Cadet 746-0374

Drive Clutch Control Cable
(Superseded to 946-0374)

$51.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

51

Cub Cadet 05936

Cable Support Brkt.

$

$

Currently unavailable

52

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 720-0170

Three Arm Knob 5/16-18 Thd.

$10.99

$

In Stock, Qty 6

0

54

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .62" O.D. x .063"

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

56

Cub Cadet 725-0464

Ignition Switch
(Superseded to 925-1425)

$33.99

$

In Stock, only 1 left!

0

57

Cub Cadet 05778

Drive Clutch Grip - R.H.
(Superseded to 05778B-0637)

$

$

Not available
