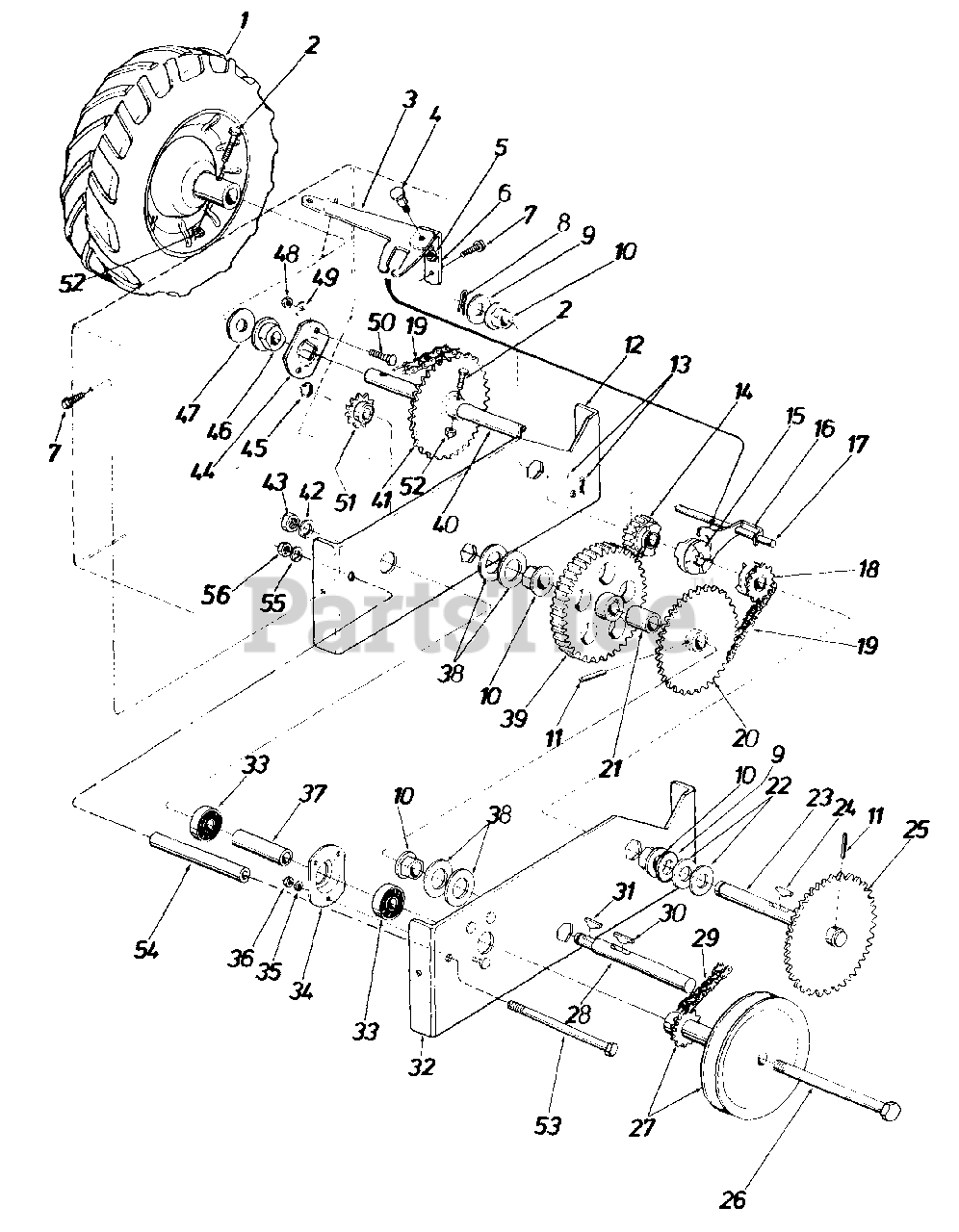

235 (235313) - Cub Cadet 20" Snow Thrower (1983) Wheel Ass'y And Drive Housing Bracket Ass'y Parts Diagram

20" Snow Thrower

Wheel Ass'y And Drive Housing Bracket Ass'y Parts Diagram

  • Title

1

Cub Cadet 734-0468

Wheel Ass'y. - Comp. 10.0 x 2.75 - R.H.

$

$

Currently unavailable

Cub Cadet 734-0835

Wheel Ass'y. - Comp. 10.0 x 2.75 - L.H.

$

$

Currently unavailable

2

Cub Cadet 710-0409

Hex Scr. 5/16-24 x 1.75" Lg. H.T.

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 05811

Shifting Bracket

$

$

Currently unavailable

4

Cub Cadet 738-0140

Shld. Scr. .438" Dia. x .180 Lg.

$5.49

$

In Stock, Qty 17

0

5

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 05808

Shifting Bracket Support

$

$

Currently unavailable

7

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 714-0111

Cotter Pin 3/32 Dia. x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0187

Fl-Wash. .64 I.D. x 1.25 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 748-0229

Hex Flange Brg. .63 I.D.
(Superseded to 948-0229)

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 715-0114

H-Spring Pin Spiral 1/4" Dia. x 1.50 Lg.

$8.49

$

In Stock, Qty 9

0

12

Cub Cadet 05792

Drive Housing Bracket - R.H.

$

$

Currently unavailable

13

Cub Cadet 714-0104

Internal Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 748-0163

Spur Gear - 21 Teeth

$

$

Currently unavailable

15

Cub Cadet 748-0161

Clutch Collar

$

$

Currently unavailable

16

Cub Cadet 05054

Shifting Yoke

$

$

Currently unavailable

17

Cub Cadet 738-0315

Rod

$

$

Not available

18

Cub Cadet 748-0164

Sprocket - 10 Teeth

$

$

Currently unavailable

19

Cub Cadet 713-0263

#41 Chain - 1/2" Pitch x 33 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

20

Cub Cadet 05093

28 Teeth - Sprocket Hub Ass'y.

$

$

Currently unavailable

21

Cub Cadet 750-0229

Spacer - .62 I.D. x .88 O.D. x 1.030
(Superseded to 950-0229)

$

$

Not available

22

Cub Cadet 736-0237

Fl-Wash. .64 I.D. x 1.25 O.D. x .100

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-0459

Shifting Shaft

$

$

Not available

24

Cub Cadet 714-0137

Hi-Pro Key 3/16 x 3/4" Dia. x 1.062

$

$

Not available

25

Cub Cadet 05137

32 Teeth Sprocket Hub Ass'y.

$

$

Currently unavailable

26

Cub Cadet 710-0506

Hex Scr. 1/2-20 x 5.50" Lg.

$10.99

$

In Stock, only 2 left!

0

27

Cub Cadet 756-0325

5.25" O.D. Pulley with 9 Teeth Sprocket

$

$

Currently unavailable

28

Cub Cadet 738-0314

Shaft

$

$

Not available

29

Cub Cadet 713-0265

#41 Chain 1/2 Pitch x 47 Links

$

$

Not available

Cub Cadet 713-0728

Master Link

$

$

Currently unavailable

30

Cub Cadet 714-0126

Hi-Pro Key - 3/16 x 3/4" Dia.

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 714-0129

Hi-Pro Key - 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

32

Cub Cadet 05789

Drive Housing Bracket Ass'y. - L.H.

$

$

Currently unavailable

33

Cub Cadet 741-0133

Ball Bearing .500 I.D. x 1.38 O.D. x .438

$33.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

35

Cub Cadet 736-0329

L-Wash. 1/4 Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

36

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 750-0295

Spacer - .52 I.D. x .62 O.D. x 2.69

$

$

Not available

38

Cub Cadet 736-0250

Fl-Wash. 1.00 I.D. x 1.75 O.D. x .100

$4.49

$

In Stock, Qty 12

0

39

Cub Cadet 748-0162

Spur Gear - 62 Teeth

$

$

Currently unavailable

40

Cub Cadet 738-0460

Wheel Axle

$

$

Not available

41

Cub Cadet 713-0243

28 Teeth - Sprocket Hub Ass'y.

$

$

Not available

42

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 712-0200

Hex Ins. Jam L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

44

Cub Cadet 10470

Bearing Plate

$

$

Not available

45

Cub Cadet 716-0104

E-Ring for .500" Dia. Shaft
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

46

Cub Cadet 741-0199

Flange Bearing w/Flats .753 I.D. - Plastic
(Superseded to 941-0490)

$12.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0287

Fl-Wash. .81 I.D. x 1.25 O.D. x .060

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 713-0278

8 Teeth Sprocket #41 Chain

$

$

Currently unavailable

52

Cub Cadet 712-0273

Hex Jam L-Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0190

Hex Bolt 5/16-18 x 4.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-0324

Spacer 3.25" Lg.

$

$

Currently unavailable

55

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
