235 e - Husqvarna Chainsaw (2008-01) Clutch, Drum/Oiler Parts Diagram

Chainsaw

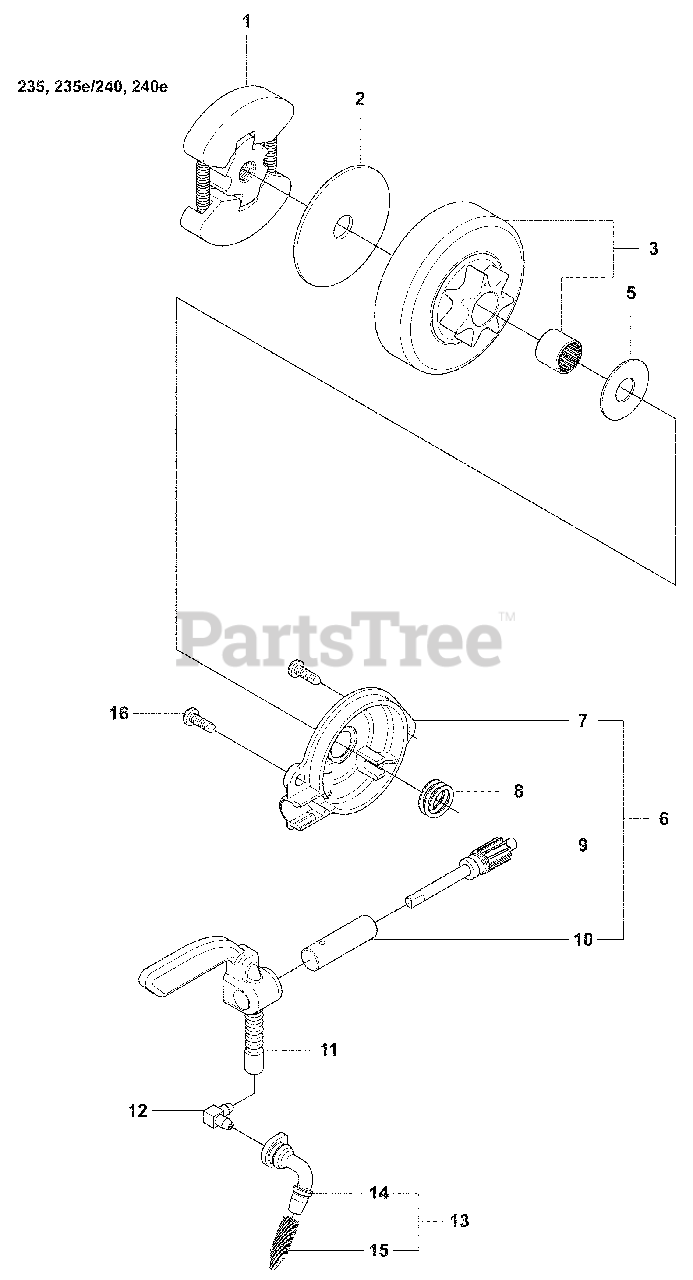

Clutch, Drum/Oiler Parts Diagram

  • Title

1

Husqvarna 530014949

ASSY- CLUTCH

$22.99

$

In Stock, Qty 18

0

2

Husqvarna 530015611

WASHER, CLUTCH (LARGE)

$5.99

$

In Stock, Qty 20+

0

3

Husqvarna 530047061

3/8-6 TOOTH DRUM ASEMBLY

$20.99

$

In Stock, Qty 11

0

3

Husqvarna 530048132

.325-7 TOOTH DRUM ASEMBLY

$22.99

$

In Stock, only 4 left!

0

5

Husqvarna 530015907

WASHER, THRUST

$

$

Not available

6

Husqvarna 530057935

ASSEMBLY OIL PUMP
(Superseded to 581063901)

Note: INCL 7,9,10

$26.99

$

In Stock, only 2 left!

0

7

Husqvarna 530057935

HOUSING, PUMP
(Superseded to 581063901)

$26.99

$

In Stock, only 2 left!

0

8

Husqvarna 530037820

GEAR- WORM

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 530057932

PLUNGER & GEAR
(Superseded to 581063901)

$26.99

$

In Stock, only 2 left!

0

10

Husqvarna 530057930

BARREL, PUMP
(Superseded to 581063901)

$26.99

$

In Stock, only 2 left!

0

11

Husqvarna 545069201

OIL BLOCK
(Superseded to 545227501)

$6.99

$

In Stock, only 3 left!

0

12

Husqvarna 530049477

ELBOW FITTING

$4.99

$

In Stock, only 3 left!

0

13

Husqvarna 545069501

PICK UP ASSEMBLY OIL TANK

Note: INCL 14,15

$7.99

$

In Stock, only 2 left!

0

14

PICK-UP SEAL

$

$

Not available

15

SPRING, FILTER

$

$

Not available

16

Husqvarna 530016064

SCP#6-19 X .437 .PL. PAN.

$3.49

$

In Stock, Qty 20+

0
