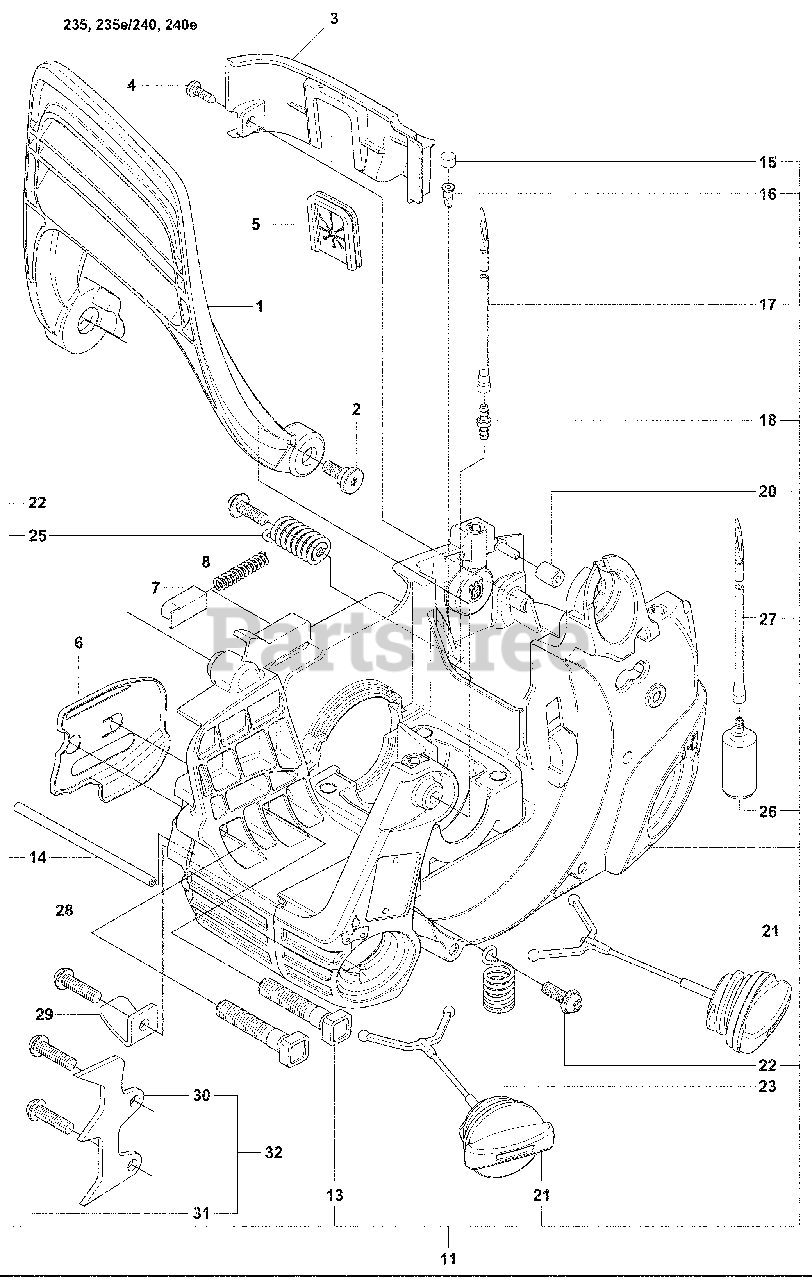

235 e - Husqvarna Chainsaw (2008-01) Crankcase/Oil Tank Parts Diagram

Chainsaw

Crankcase/Oil Tank Parts Diagram

  • Title

1

Husqvarna 545066701

HANDGUARD
(Superseded to 575636901)

$

$

Not available

2

Husqvarna 545127301

BOSS SCREW, HANDGUARD

$3.49

$

In Stock, Qty 10

0

3

Husqvarna 545061201

REAR WALL

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 530016064

SCREW, MTG REAR WALL

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 545075401

GROMMET, REAR WALL

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 545071401

PLATE BAR MOUNTING

$5.99

$

In Stock, Qty 8

0

7

Husqvarna 545071301

CAP, SPRING HANDGUARD

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 545071201

SPRING, HANDGUARD POSITION

$4.99

$

In Stock, only 3 left!

0

11

Husqvarna 545061101

CHASSIS ASSEMBLY
(Superseded to 579665204)

Note: Incl. 13,14,15,16,17,18,19,20,21,22,23,25,26,27

$102.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530016133

BOLT, BAR

$4.99

$

In Stock, Qty 10

0

14

Husqvarna 545033501

ASSY, VENT LINE

$6.99

$

In Stock, only 2 left!

0

15

Husqvarna 530029868

PLUG VENT (BRONZE)

$5.99

$

In Stock, only 4 left!

0

16

Husqvarna 530026119

CHECK VALVE (DUCK BILL)

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 530021132

LINE-RETURN PURGE
(Superseded to 530069216)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 530023877

FITTING- FUEL LINE

$5.99

$

In Stock, Qty 20+

0

20

Husqvarna 545061901

ISOLATOR FILTER HOUSING

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 545070801

ASSY-OIL/FUEL CAP W/RET.

$

$

Not available

22

Husqvarna 530015906

SCREW M5.28X1.81X16MM PLAS

$3.49

$

In Stock, Qty 14

0

23

Husqvarna 545033801

ASS'Y FRONT ISOLATOR

$9.49

$

In Stock, only 2 left!

0

25

Husqvarna 545063101

REAR ISOLATOR SPRING

$9.49

$

In Stock, Qty 9

0

26

Husqvarna 530095646

ASSY- PICK-UP

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 545078302

LINE, FUEL

$4.99

$

In Stock, only 3 left!

0

28

Husqvarna 530015814

Screw catcher

$3.49

$

In Stock, only 4 left!

0

29

Husqvarna 530029850

Chain catcher

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 530038990

SPIKE
(Superseded to 530014381)

$9.49

$

In Stock, Qty 7

0

31

Husqvarna 530016439

SCREW SPIKE

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 530014381

KIT SPIKE

Note: INCL 30,31

$9.49

$

In Stock, Qty 7

0
