235 R - Husqvarna String Trimmer (2000-10) Gear Heads 235 Parts Diagram

String Trimmer

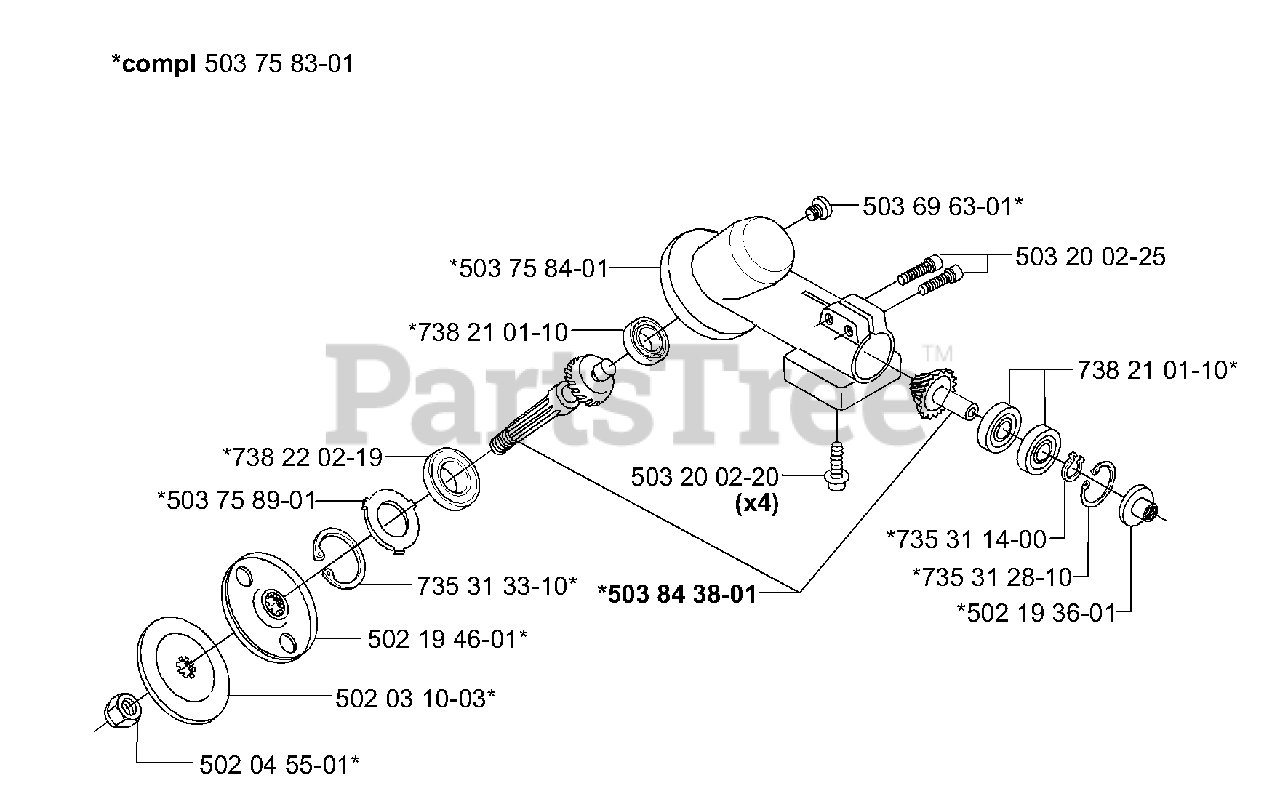

Gear Heads 235 Parts Diagram

  • Title

503758301

Husqvarna 503758301

GEAR COMPLETE
(Superseded to 503758302)

Note: COMPL

$

$

Not available

503758401

Husqvarna 503758401

GEAR CASE

Note: INCLUDED IN P/N 503758301

$66.92

$

Usually ships in 3-10 days

0

738210110

Husqvarna 738210110

BALL BEARING

Note: INCLUDED IN P/N 503758301

$24.99

$

In Stock, only 2 left!

0

503696301

Husqvarna 503696301

PLUG
(Superseded to 503201501)

Note: INCLUDED IN P/N 503758301

$9.99

$

In Stock, Qty 5

0

503200225

Husqvarna 503200225

SCREW

$4.99

$

In Stock, Qty 18

0

738210110

Husqvarna 738210110

BALL BEARING

Note: INCLUDED IN P/N 503758301

$24.99

$

In Stock, only 2 left!

0

735311400

Husqvarna 735311400

SEEGER CLIP

Note: INCLUDED IN P/N 503758301

$6.49

$

In Stock, only 1 left!

0

735312810

Husqvarna 735312810

RETAINING RING SGH 28

Note: INCLUDED IN P/N 503758301

$7.49

$

In Stock, only 4 left!

0

502193601

Husqvarna 502193601

SEALING RING

Note: INCLUDED IN P/N 503758301

$

$

Not available

503200220

Husqvarna 503200220

SCREW

$6.49

$

In Stock, Qty 14

0

503843801

Husqvarna 503843801

GEAR-WHEEL SPARE PT KIT NLA

Note: INCLUDED IN P/N 503758301

$

$

Not available

735313310

Husqvarna 735313310

RETAINING RING SGH 35

Note: INCLUDED IN P/N 503758301

$3.49

$

Usually ships in 3-10 days

0

502194601

Husqvarna 502194601

DRIVER
(Superseded to 502208701)

Note: INCLUDED IN P/N 503758301

$72.99

$

Usually ships in 3-10 days

0

502031003

Husqvarna 502031003

FLANGE

Note: INCLUDED IN P/N 503758301

$

$

Not available

502045501

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

Note: INCLUDED IN P/N 503758301

$1.99

$

In Stock, only 4 left!

0

738220219

Husqvarna 738220219

BALL BEARING 6202-2RS1

Note: INCLUDED IN P/N 503758301

$40.99

$

Usually ships in 3-10 days

0

503758901

Husqvarna 503758901

WASHER

Note: INCLUDED IN P/N 503758301

$2.23

$

In Stock, only 1 left!

0
