23513 - Toro 18" Dethatcher (SN: 313000001 - 313999999) (2013) FRAME AND ENGINE ASSEMBLY Parts Diagram

18" Dethatcher

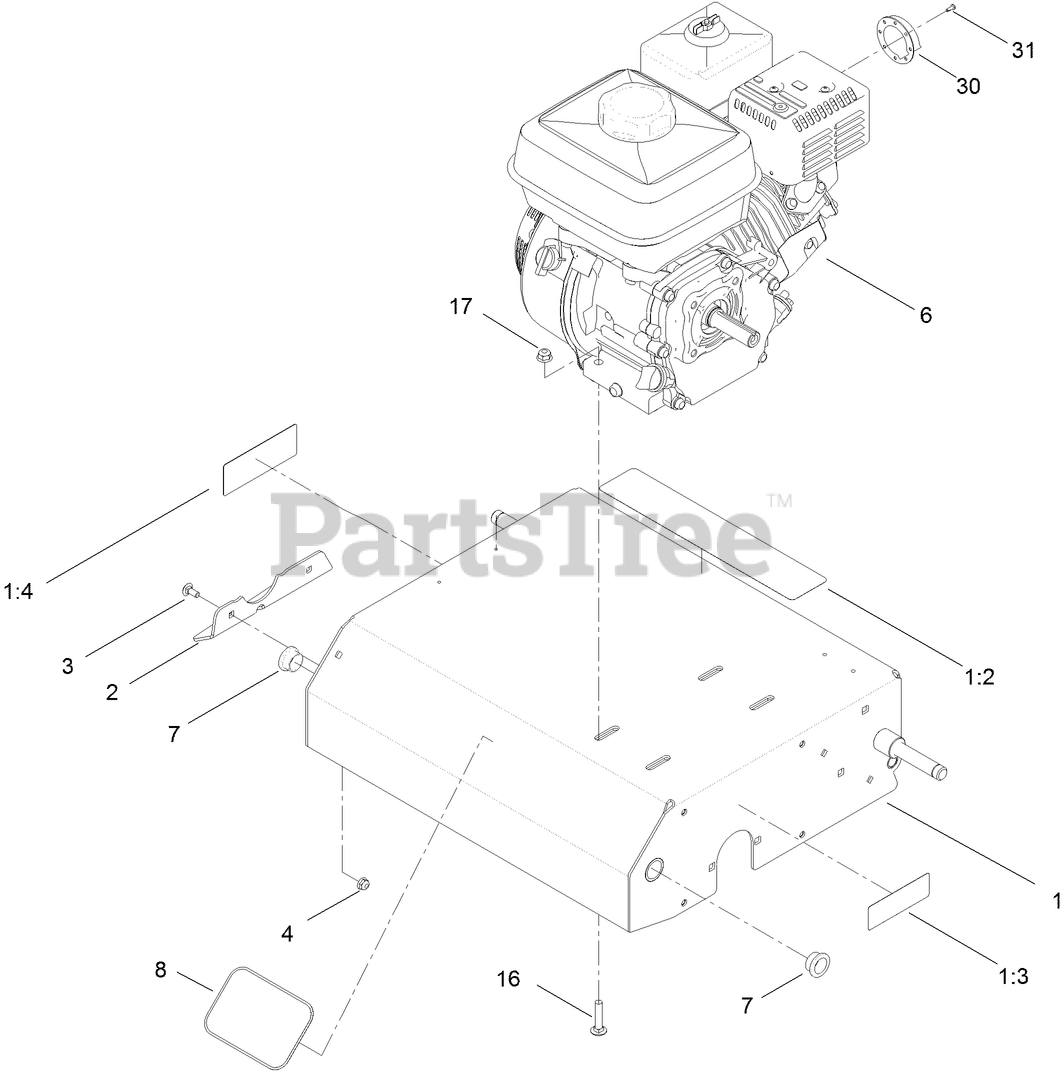

FRAME AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 125-3825

FRAME ASM

$474.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-3809

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

1:3

Toro 117-4979

DECAL-WARNING, SHIELDS

$15.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7321

DECAL-DANGER

$31.99

$

Usually ships in 3-6 days

0

2

Toro 121-1853-01

GUARD-HAND

$18.99

$

Usually ships in 3-6 days

0

3

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

ENGINE-HONDA, GX160UT1QXZ

Note: Not serviced separately

$

$

Not available

6

ENGINE-HONDA, GX160UT1QXZ

Note: Obtain parts from www.honda-engines.com

$

$

Not available

7

Toro 121-1876

BUSHING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 67-1300

DECAL

$34.99

$

In Stock, only 2 left!

0

16

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, only 1 left!

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 125-3866

DEFLECTOR

$47.99

$

Usually ships in 3-6 days

0

31

Toro 120-1884

SCREW-PPHTF

$1.49

$

Usually ships in 3-6 days

0
