23513 - Toro 18" Dethatcher (SN: 313000001 - 313999999) (2013)

18" Dethatcher

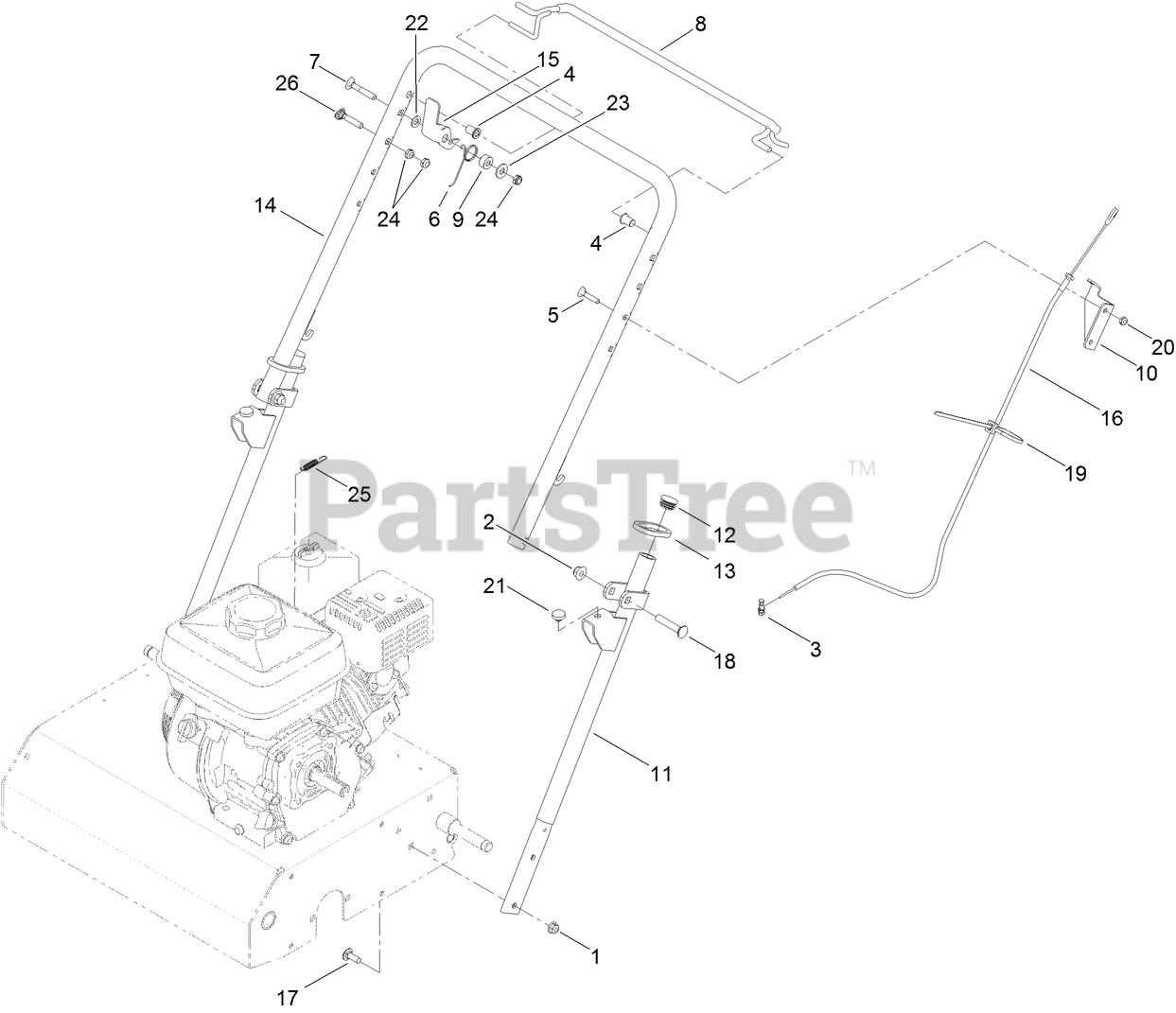

23513 - Toro 18" Dethatcher (SN: 313000001 - 313999999) (2013) > Parts Diagrams (5) > HANDLE ASSEMBLY

  • Title
104-8300

1

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

104-8301

2

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.89

108-5928

3

SWIVEL-STOP, CABLE

Part# 108-5928

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.17

109-2713

4

BUSHING

Part# 109-2713

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

109-8144

5

BOLT-HANDLE

Part# 109-8144 (Superseded to 117-7737)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.47

125-3750

6

SPRING, LOCK-TAB

Part# 125-3750

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.26

112-8876

7

SCREW-HANDLE

Part# 112-8876 (Superseded to 92-2260)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.92

116-0389

8

BAIL-TRACTION

Part# 116-0389

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.50

116-2690

9

BUSHING-STEPPED

Part# 116-2690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.02

121-1859-03

10

BRACKET-CABLE, THROTTLE

Part# 121-1859-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.34

125-3799-03

11

HANDLE-LOWER

Part# 125-3799-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.08

121-4870

12

PLUG

Part# 121-4870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.15

121-6202

13

RING-HANDLE LOCK

Part# 121-6202

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.87

125-3800-03

14

HANDLE-UPPER

Part# 125-3800-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $96.39

121-7727

15

TAB-LOCK

Part# 121-7727

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.03

121-7739

16

CABLE-THROTTLE

Part# 121-7739

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.39

3230-10

17

BOLT-CARR

Part# 3230-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.73

3231-6

18

SCREW-CARR

Part# 3231-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

3290-378

19

TIE-CABLE

Part# 3290-378

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.71

3296-56

20

NUT-LOCK, NI

Part# 3296-56

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

1-513658

21

BUMPER

Part# 1-513658

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.69

3256-23

22

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

3256-3

23

WASHER-FLAT

Part# 3256-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

3296-47

24

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.19

119-4609

25

SPRING-EXTENSION

Part# 119-4609

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50

107-3018

26

SCREW-HANDLE

Part# 107-3018

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.25
