23513 - Toro 18" Dethatcher (SN: 316000001 - 316999999) (2016) BELT GUARD ASSEMBLY Parts Diagram

18" Dethatcher

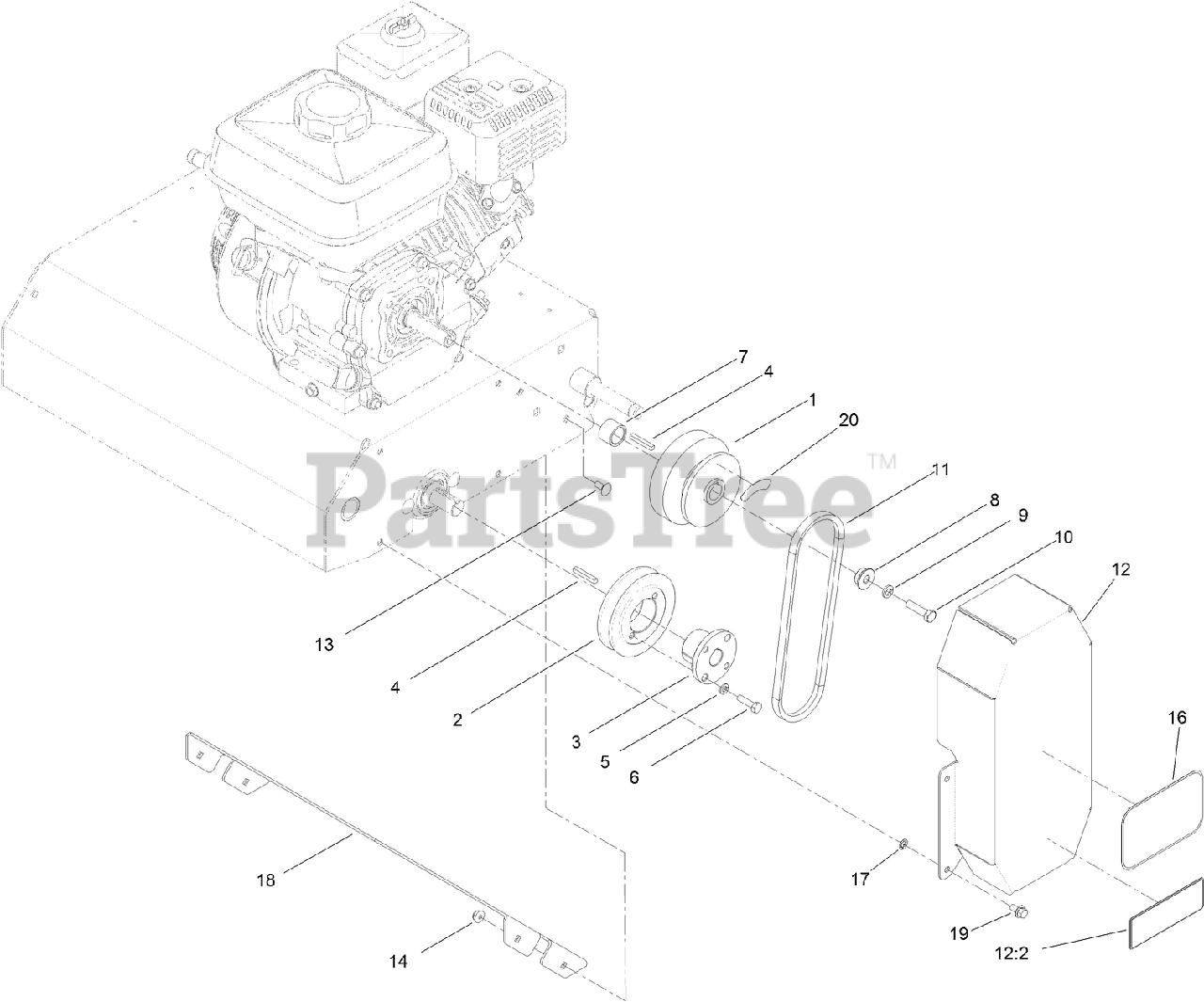

BELT GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 120-1215

CLUTCH-CENTRIFUGAL

$508.99

$

Usually ships in 3-6 days

0

2

Toro 121-2019

SHEAVE-TAPER LOCK

$118.99

$

Usually ships in 3-6 days

0

3

Toro 121-2022

BUSHING-TAPER LOCK

$39.99

$

Usually ships in 3-6 days

0

4

Toro 92-2649

KEY-SQUARE

$3.99

$

Usually ships in 3-6 days

0

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 121-7731

SPACER

$11.99

$

Usually ships in 3-6 days

0

8

Toro 121-7732

BUSHING

$33.99

$

Usually ships in 3-6 days

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

10

Toro 3210-6

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 53-4650

V-BELT

$42.99

$

Usually ships in 3-6 days

0

12

Toro 125-3827

BELT GUARD ASM

$134.99

$

Usually ships in 3-6 days

0

12:2

Toro 93-7321

DECAL-DANGER

$31.99

$

Usually ships in 3-6 days

0

13

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 67-1300

DECAL

$34.99

$

In Stock, only 1 left!

0

17

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

18

Toro 121-6235-01

BAFFLE-DEFLECTOR

$49.99

$

Usually ships in 3-6 days

0

19

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 1 left!

0

20

Toro 125-3897

DECAL-WARNING

$

$

Currently unavailable
