23515 - Toro 21" Walk-Behind Aerator (SN: 312000001 - 312999999) (2012) HEIGHT LINKAGE ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

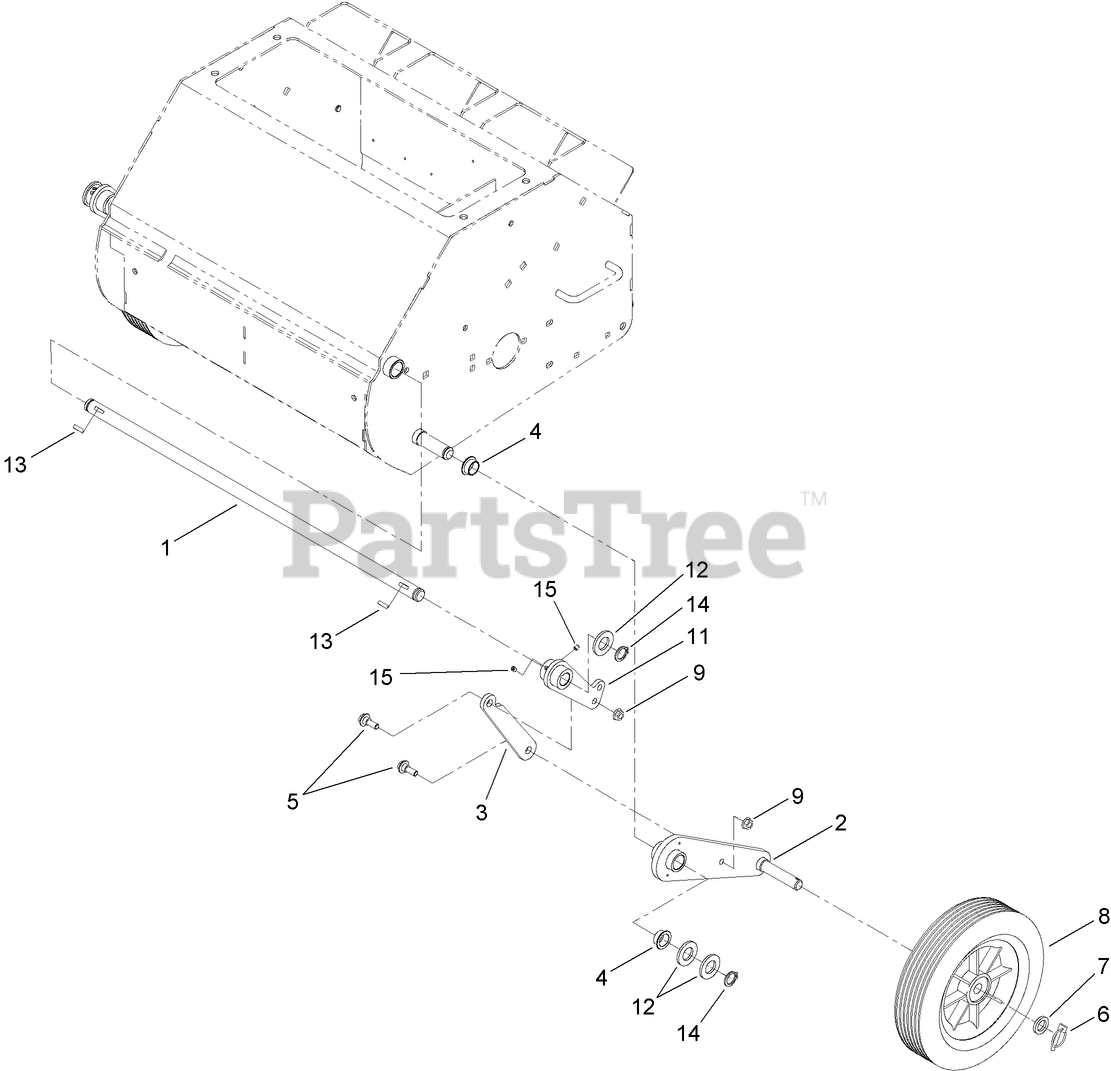

HEIGHT LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4873

SHAFT-PIVOT

$

$

Not available

2

Toro 121-4886-03

ARM-WHEEL

$83.99

$

Usually ships in 3-6 days

0

3

Toro 121-6212-03

LINK-CONNECTING

$10.99

$

Usually ships in 3-6 days

0

4

Toro 108519

BUSHING-BRONZE

$17.99

$

In Stock, Qty 5

0

5

Toro 116-2670

SCREW-SHOULDER

$8.49

$

In Stock, Qty 12

0

6

Toro 3290-495

PIN-KLIK

$7.49

$

Usually ships in 3-6 days

0

7

Toro 63-9710

SPACER-BEARING

$14.99

$

In Stock, only 1 left!

0

8

Toro 121-4897

WHEEL-TRANSPORT 10"

$79.99

$

Usually ships in 3-6 days

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 121-6213-03

ARM-LIFT

$64.99

$

Usually ships in 3-6 days

0

12

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

13

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

14

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

15

Toro 108-0989

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0
