23516 - Toro 18" Walk-Behind Aerator (SN: 313000001 - 313999999) (2013) WHEEL ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

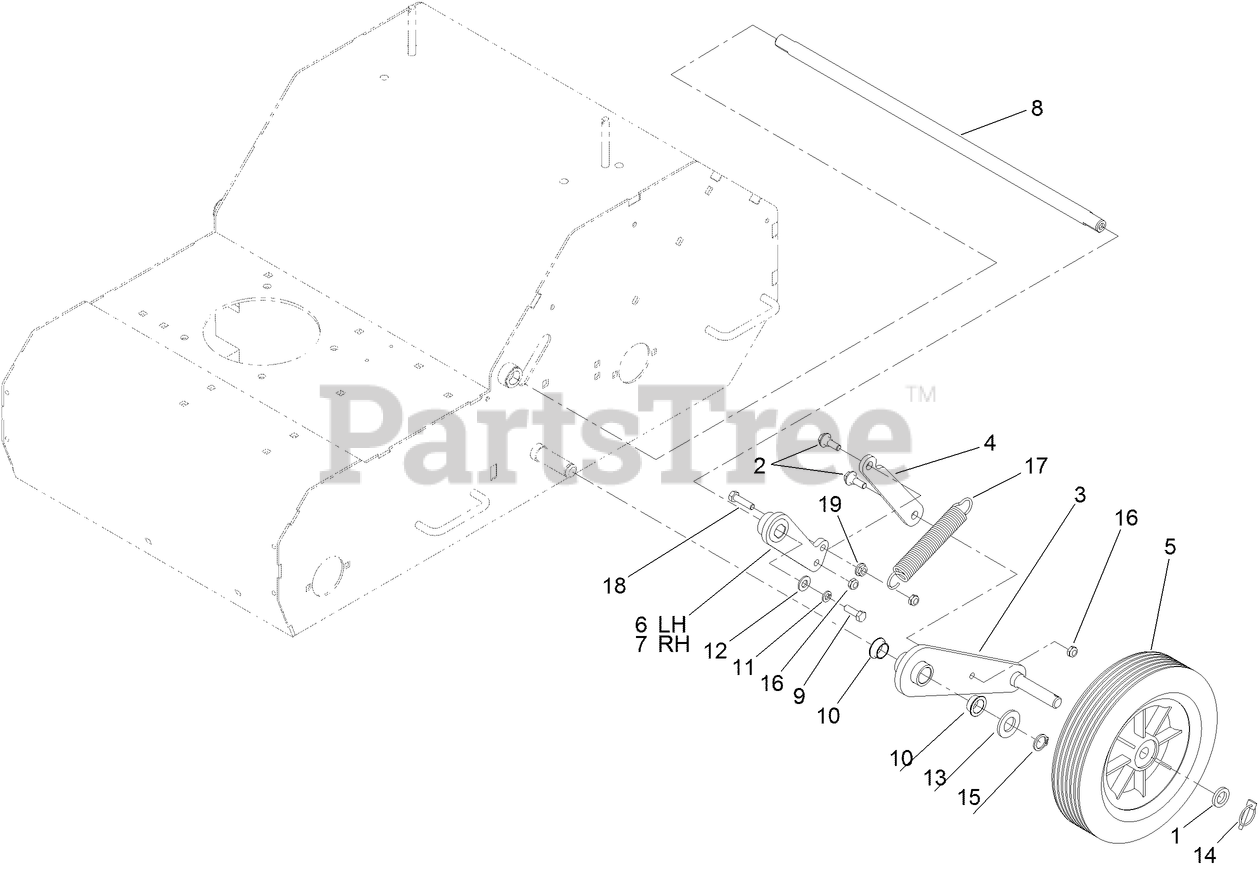

WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 63-9710

SPACER-BEARING

$14.99

$

In Stock, only 1 left!

0

2

Toro 116-2670

SCREW-SHOULDER

$8.49

$

In Stock, Qty 12

0

3

Toro 121-4886-03

ARM-WHEEL

$83.99

$

Usually ships in 3-6 days

0

4

Toro 121-6212-03

LINK-CONNECTING

$10.99

$

Usually ships in 3-6 days

0

5

Toro 121-4897

WHEEL-TRANSPORT 10"

$79.99

$

Usually ships in 3-6 days

0

6

Toro 125-3758-03

HUB-LIFT, LH
(Superseded to 130-2157-03)

$103.99

$

Usually ships in 3-6 days

0

7

Toro 125-3759-03

HUB-LIFT, RH
(Superseded to 130-2158-03)

$128.99

$

Usually ships in 3-6 days

0

8

Toro 125-3856

SHAFT-PIVOT

$242.99

$

Usually ships in 3-6 days

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 108519

BUSHING-BRONZE

$17.99

$

In Stock, Qty 5

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-495

PIN-KLIK

$7.49

$

Usually ships in 3-6 days

0

15

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

17

Toro 125-3786

SPRING-EXTENSION

$34.99

$

Usually ships in 3-6 days

0

18

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
