23516 - Toro 18" Walk-Behind Aerator (SN: 314000001 - 314999999) (2014) IDLER SPROCKET AND WEIGHT ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

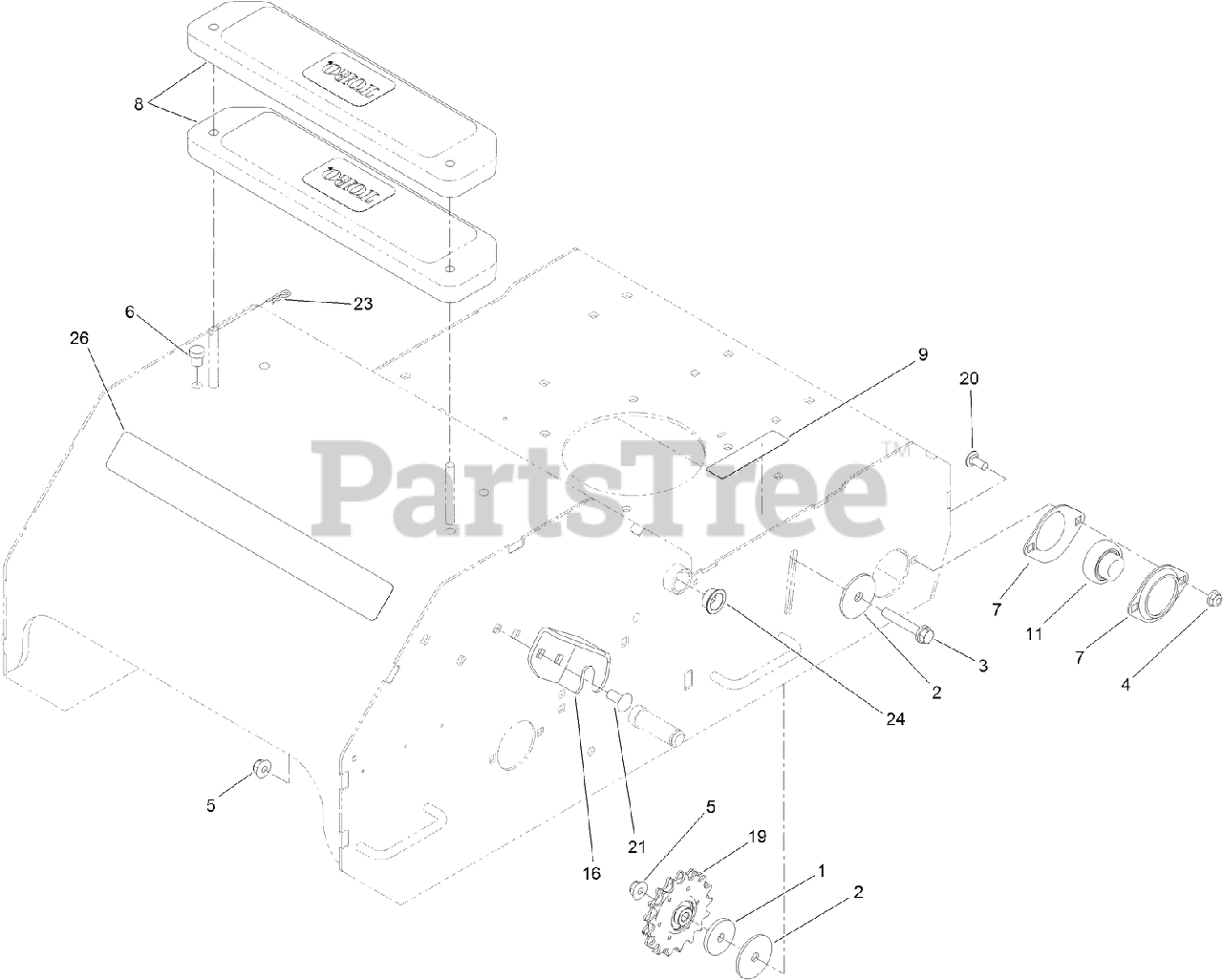

IDLER SPROCKET AND WEIGHT ASSEMBLY Parts Diagram

  • Title

1

Toro 5-1720

WASHER

$3.49

$

Usually ships in 3-6 days

0

2

Toro 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

3

Toro 100-2592

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-4740

BUMPER-RUBBER

$15.99

$

Usually ships in 3-6 days

0

7

Toro 105-9714

FLANGE-BEARING

$11.99

$

In Stock, only 3 left!

0

8

Toro 112-7059-01

WEIGHT-CAST

$254.99

$

Usually ships in 3-6 days

0

9

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 2 left!

0

11

Toro 106-8448

BEARING-RACE, EXTENDED

$82.99

$

Usually ships in 3-6 days

0

16

Toro 130-2147

BRACKET-CABLE

$27.99

$

Usually ships in 3-6 days

0

19

Toro 130-2114

SPROCKET-IDLER

$113.99

$

Usually ships in 3-6 days

0

20

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 5

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

24

Toro 108519

BUSHING-BRONZE

$17.99

$

In Stock, Qty 5

0

26

Toro 130-2161

DECAL-OPERATION

$

$

Currently unavailable
