23518 - Toro 30" Stand-On Aerator (SN: 312000001 - 312999999) (2012) MOTION CONTROL ASSEMBLY Parts Diagram

30" Stand-On Aerator

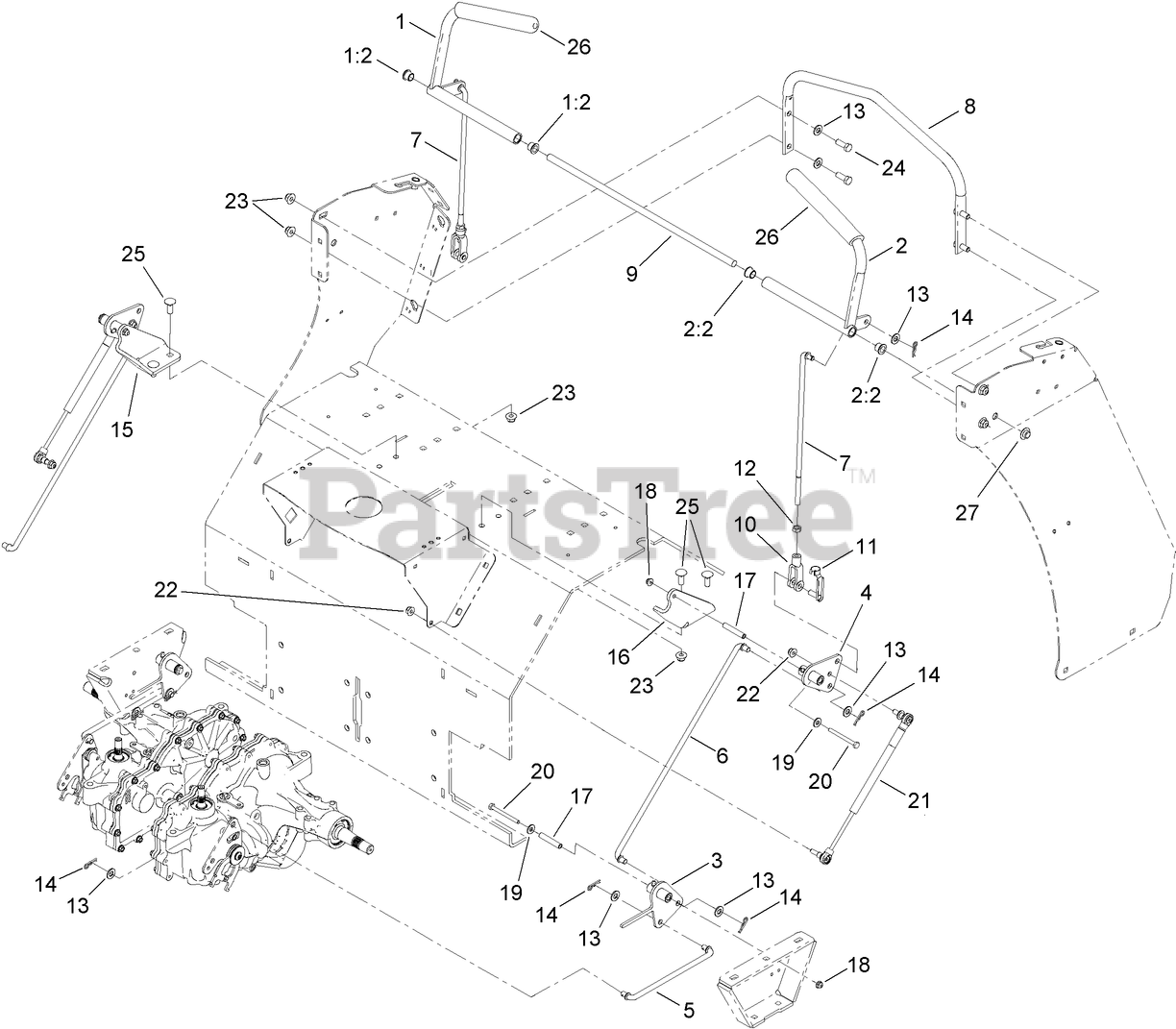

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 116-6567

RH CONTROL HANDLE ASM

$199.99

$

In Stock, Qty 5

0

1:2

Toro 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

2

Toro 116-6566

LH CONTROL HANDLE ASM

$199.99

$

In Stock, only 1 left!

0

2:2

Toro 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

3

Toro 116-6573-03

BELLCRANK (W/ARM)

$

$

Not available

4

Toro 116-6617-03

BELLCRANK (W/ARM)

$

$

Currently unavailable

5

Toro 116-6722

LINK-CONTROL, HYDRO

$30.99

$

Usually ships in 3-6 days

0

6

Toro 116-6726

LINK-BELLCRANK CONTROL

$

$

Not available

7

Toro 116-6730

LINK-CONTROL, BELL CRANK

$44.99

$

Usually ships in 3-6 days

0

8

Toro 116-6608-03

BAR-REFERENCE

$149.99

$

Usually ships in 3-6 days

0

9

Toro 116-6607

SHAFT-PIVOT, CONTROL

$20.99

$

Usually ships in 3-6 days

0

10

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

0

11

Toro 103-2399

Pin-Spring, Clevis

$6.99

$

In Stock, only 2 left!

0

12

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

15

Toro 116-6576-03

BRACKET-PIVOT, RH

$34.99

$

Usually ships in 3-6 days

0

16

Toro 116-6577-03

BRACKET-PIVOT, LH

$33.99

$

Usually ships in 3-6 days

0

17

Toro 116-7224

SPACER

$17.99

$

Usually ships in 3-6 days

0

18

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 12

0

21

Toro 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 146-0859)

$53.99

$

In Stock, Qty 20+

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 103-8153

GRIP-LEVER, CONTROL

$15.99

$

In Stock, only 1 left!

0

27

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 8

0
