23521 - Toro Walk-Behind Brush Cutter (SN: 400000000 - 999999999) Deck Assembly Parts Diagram

Walk-Behind Brush Cutter

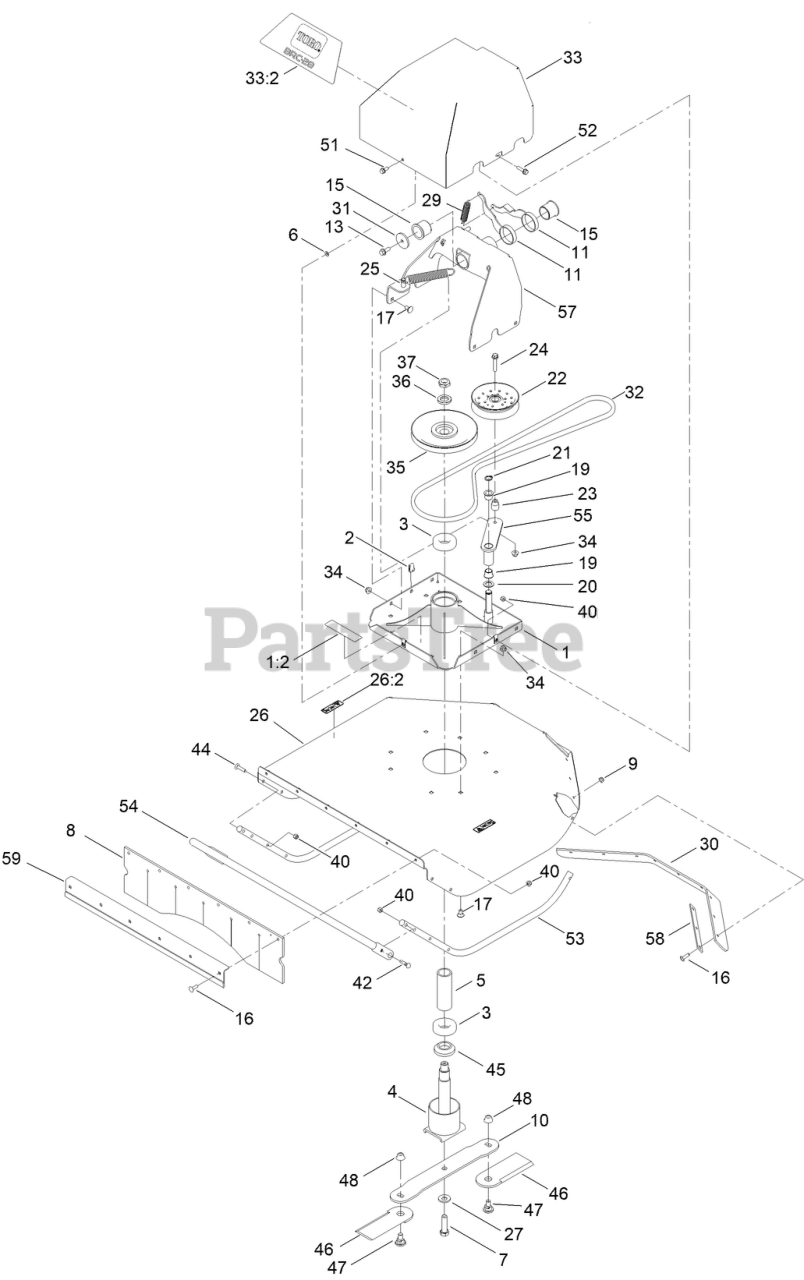

Deck Assembly Parts Diagram

  • Title

1

Toro 136-4637

SPINDLE ASM

$298.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

2

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

3

Toro 132-4088

BEARING-SPINDLE

$18.99

$

Usually ships in 3-6 days

0

4

Toro 132-7040

SPINDLE CUP ASM

$315.99

$

Usually ships in 3-6 days

0

5

Toro 132-7006

SPACER-BEARING

$55.99

$

Usually ships in 3-6 days

0

6

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 11

0

8

Toro 136-4599

FLAP-RUBBER

$69.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 132-4066

BLADE-FLAIL

$

$

Currently unavailable

11

Toro 132-4064-03

ARM-RETURN

$43.99

$

Usually ships in 3-6 days

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

15

Toro 132-4091

BUSHING

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

17

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 15

0

19

Toro 132-4089

BUSHING

$7.99

$

Usually ships in 3-6 days

0

20

Toro 67-9410

WASHER

$4.49

$

Usually ships in 3-6 days

0

21

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Toro 116-4665

See Supercession: 136-5405
(Superseded to 136-5405)

$51.99

$

In Stock, only 3 left!

0

23

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

24

Toro 108-3742

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

25

Toro 106-2177

SPRING-EXTENSION

$15.99

$

In Stock, Qty 5

0

26

Toro 136-4625

DECK ASM

$460.99

$

Usually ships in 3-6 days

0

26:2

Toro 130-9670

DECAL-WARNING, BLADE

$3.49

$

In Stock, Qty 13

0

27

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 2 left!

0

29

Toro 13-0480

SPRING

$34.99

$

Usually ships in 3-6 days

0

30

Toro 133-9700

FLAP-DECK

$73.99

$

Usually ships in 3-6 days

0

31

Toro 132-4055

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

32

Toro 132-7047

BELT-DECK

$77.99

$

In Stock, only 1 left!

0

33

Toro 136-4627

GUARD-BELT

$190.99

$

Usually ships in 3-6 days

0

33:2

Toro 132-4011

DECAL

$21.99

$

Usually ships in 3-6 days

0

34

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-3546

PULLEY-DRIVEN, LOW

$211.99

$

Usually ships in 3-6 days

0

36

Toro 120-5576

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

37

Toro 3296-60

NUT-LOCK, NI

$5.99

$

In Stock, Qty 6

0

40

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 130-2356

SCREW-HANDLE, LOCK

$1.99

$

Usually ships in 3-6 days

0

44

Toro 112-6950

SCREW-CARR

$0.99

$

In Stock, Qty 7

0

45

Toro 136-4609

CAP-SPINDLE

$33.99

$

Usually ships in 3-6 days

0

46

Toro 132-4067

See Supercession: 132-4067-03
(Superseded to 132-4067-03)

$32.99

$

Usually ships in 3-6 days

0

47

Toro 132-4069

BOLT

$32.99

$

In Stock, only 2 left!

0

48

Toro 131-0703

NUT-HHF

$2.49

$

In Stock, only 3 left!

0

51

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

52

Toro 3234-36

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

53

Toro 132-7008-03

BAR-SKID

$61.99

$

Usually ships in 3-6 days

0

54

Toro 132-7009-03

GUARD-BRUSH

$92.99

$

Usually ships in 3-6 days

0

55

Toro 132-7033-03

ARM-TENSION

$55.99

$

Usually ships in 3-6 days

0

57

Toro 132-7044-03

FRAME-PIVOT

$263.99

$

Usually ships in 3-6 days

0

58

Toro 133-9709-03

PLATE-FLAP, DECK

$5.99

$

Usually ships in 3-6 days

0

59

Toro 136-1421-01

GUARD-FLAP, RUBBER

$42.99

$

Usually ships in 3-6 days

0
