2354 GXLS (960430068-00) - Husqvarna 54" Lawn Tractor (2009-01) Mower Lift Parts Diagram

54" Lawn Tractor

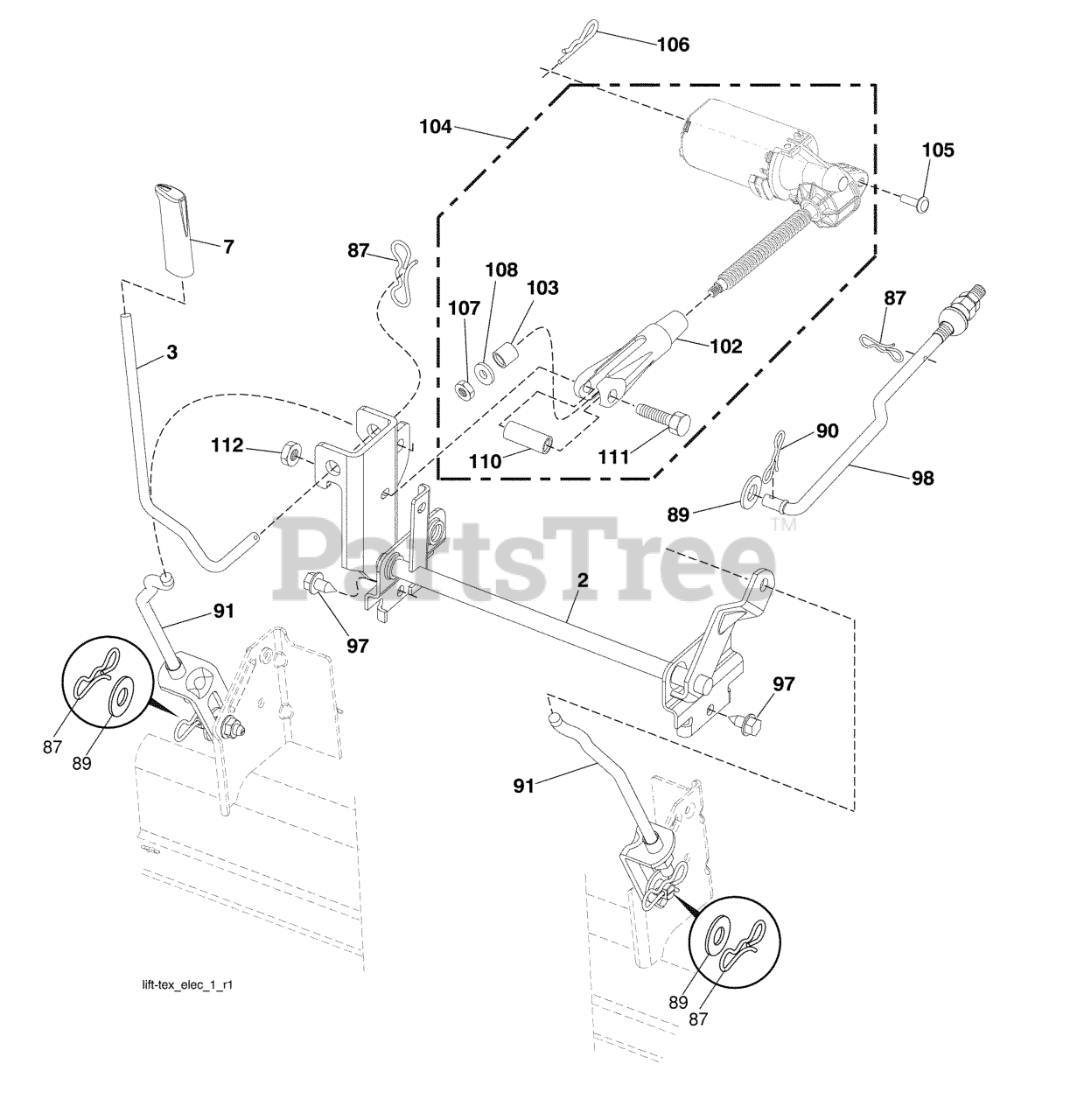

Mower Lift Parts Diagram

  • Title

2

Husqvarna 532195223

SHAFT.ASM.LIFT.CROSS.H
(Superseded to 532422027)

$89.99

$

In Stock, only 4 left!

0

3

Husqvarna 532419496

ROD.INDICATOR.LIFT.ELECTRIC

$83.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532419444

CAP.INDICATOR.LIFT.ELECT

$27.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 20+

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$3.99

$

In Stock, Qty 20+

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

91

Husqvarna 532403407

LINK.ASM.LIFT.54"TG
(Superseded to 589464805)

$23.99

$

In Stock, only 4 left!

0

97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

98

Husqvarna 532195264

LINK.ASM.SUSP.FRONT.MWR.10.5
(Superseded to 581506902)

$17.99

$

In Stock, Qty 20+

0

102

Husqvarna 532419278

CLEVIS.MOTOR.ELECTRIC

$

$

Not available

103

Husqvarna 532420190

SPACER.TUBULAR

$

$

Not available

104

Husqvarna 532417813

ACTUATOR.DECKLIFT
(Superseded to 532421769)

$

$

Not available

105

Husqvarna 532126875

RIVET,DRILLED

$3.99

$

In Stock, Qty 20+

0

106

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 16

0

107

Husqvarna 873720400

Nut

$

$

Not available

108

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 10

0

110

Husqvarna 532419279

SPACER.CLEVIS

$

$

Not available

111

Husqvarna 874490540

BOLT
(Superseded to 596136501)

$4.99

$

Usually ships in 3-10 days

0

112

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available
