2354 GXLS (960430068-00) - Husqvarna 54" Lawn Tractor (2009-01) Mower Lift Parts Diagram

54" Lawn Tractor

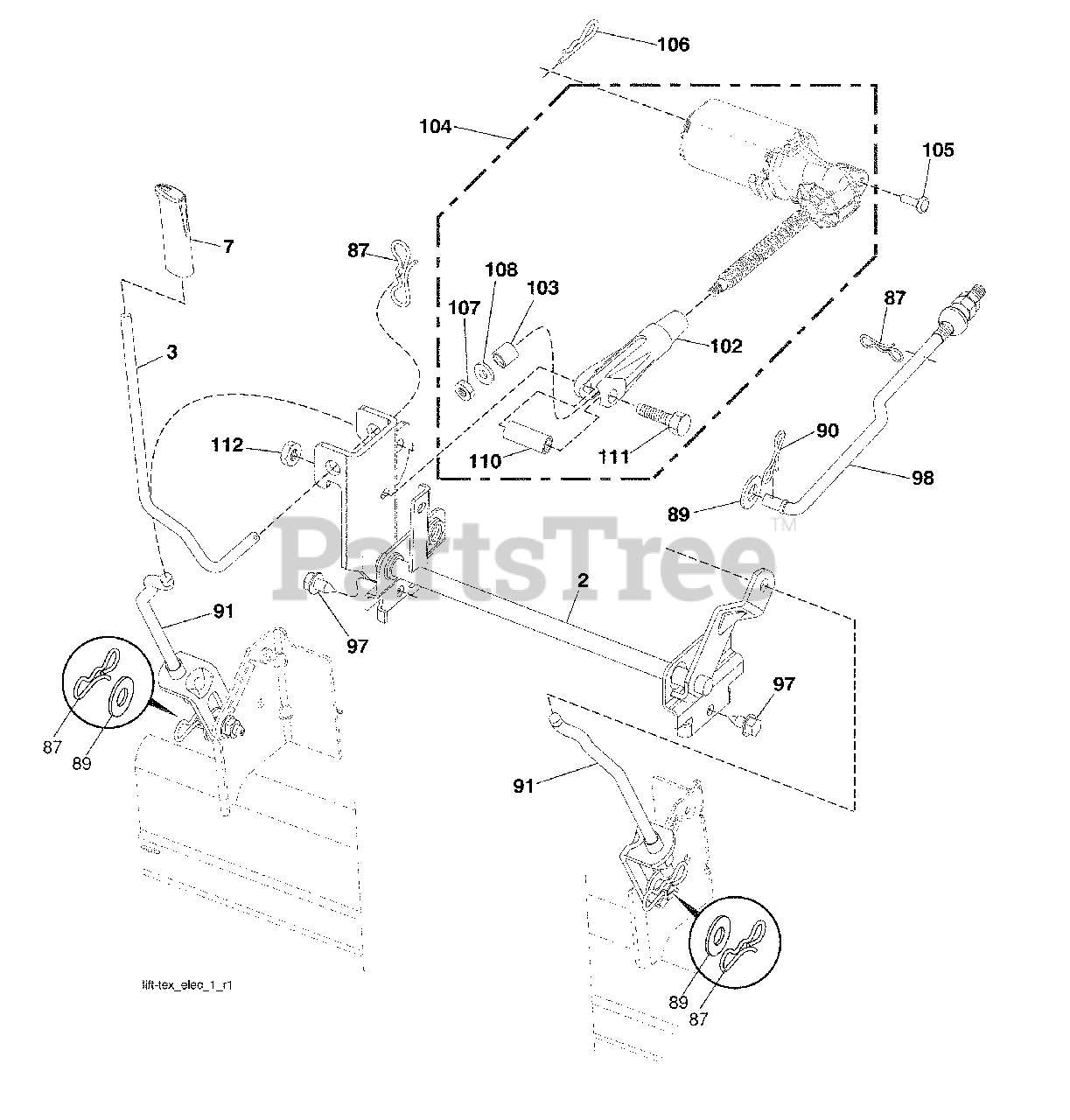

Mower Lift Parts Diagram

  • Title

2

Husqvarna 532195223

Shaft Asm., Lift
(Superseded to 532422027)

$79.99

$

In Stock, only 1 left!

0

3

Husqvarna 532419496

Rod Indicator Lift Electric

$79.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532419444

Cap Indicator Lift Electric

$26.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532194209

Pin Cotter 7/16 Bow Tie Lock

$3.49

$

In Stock, Qty 5

0

89

Husqvarna 819191912

Washer Clear Zinc

$3.49

$

In Stock, Qty 13

0

90

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$1.49

$

In Stock, Qty 20+

0

91

Husqvarna 532403407

Link Asm. Lift Rear
(Superseded to 589464805)

$22.99

$

In Stock, only 2 left!

0

97

Husqvarna 817000612

Screw 3/8-16 x .75

$4.99

$

In Stock, Qty 20+

0

98

Husqvarna 532195264

Link Lift Susp. Front Mower
(Superseded to 581506902)

$13.99

$

In Stock, Qty 20+

0

102

Husqvarna 532419278

Clevis Motor Electric

$

$

Not available

103

Husqvarna 532420190

Spacer Tubular

$

$

Not available

104

Husqvarna 532417813

Actuator Decklift
(Superseded to 532421769)

$

$

Not available

105

Husqvarna 532126875

Rivet Drilled 1/4 Dia.

$3.49

$

In Stock, Qty 20+

0

106

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$4.99

$

In Stock, only 3 left!

0

107

Husqvarna 873720400

Nut

$

$

Not available

108

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 596582301)

$3.49

$

In Stock, only 2 left!

0

110

Husqvarna 532419279

Spacer Clevis

$

$

Not available

111

Husqvarna 874490540

Bolt Hex 5/16-18 x Gr. 5
(Superseded to 596136501)

$4.99

$

Usually ships in 3-10 days

0

112

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available
