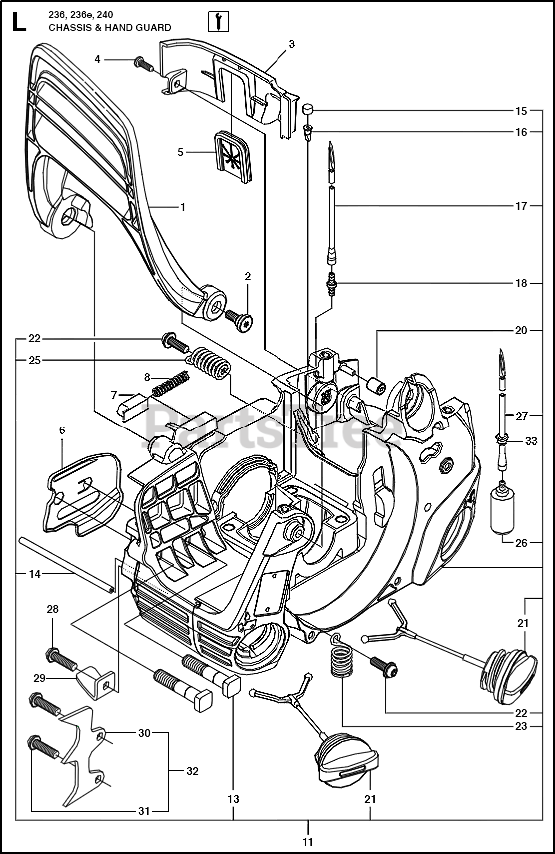

236 e - Husqvarna Chainsaw CHASSIS Parts Diagram

Chainsaw

CHASSIS Parts Diagram

  • Title

32

Husqvarna 530014381

SPIKE 36/41

$9.49

$

In Stock, Qty 7

0

2

Husqvarna 545127301

BOSS SCREW

$3.49

$

In Stock, Qty 10

0

21

Husqvarna 544111203

ASSY TANK CAP GREY
(Superseded to 544111201)

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579665201

ASSY CHASSIS HUSQ ORANGE
(Superseded to 579665204)

Note: From 20101400001 up to 20180500000

$102.99

$

Usually ships in 3-10 days

0

6

Husqvarna 545071401

PLATE BAR

$5.99

$

In Stock, Qty 8

0

33

Husqvarna 580457501

GROMMET FUEL LINE

Note: From 20180500001

$1.49

$

In Stock, Qty 20+

0

23

Husqvarna 545033801

ISOLATOR

$9.49

$

In Stock, only 2 left!

0

11

Husqvarna 587026801

CHASSIS ASSEMBLY, P021, MACH.
(Superseded to 587026804)

Note: From 20180500001

$102.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530095646

FUEL PICK-UP ASSY

Note: From 20101400001 up to 20180500000

$6.99

$

In Stock, Qty 20+

0

5

Husqvarna 545075401

GROMMET

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 545071301

CAP, SPRING HANDGUARD

$4.99

$

In Stock, only 3 left!

0

16

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 20+

0

14

Husqvarna 545033501

OIL TUBE

Note: From 20101400001 up to 20180500000

$6.99

$

In Stock, only 2 left!

0

28

Husqvarna 530015814

SCREW

$3.49

$

In Stock, only 4 left!

0

18

Husqvarna 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 577167201

ASSY FUEL PICKUP PRE FLUSHED

Note: From 20180500001

$7.99

$

In Stock, Qty 8

0

1

Husqvarna 577611901

HANDGUARD HHS
(Superseded to 577611902)

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530069216

KIT.LINE TANK/PURGE

Note: From 20101400001 up to 20180500000

$13.99

$

In Stock, Qty 20+

0

15

Husqvarna 530029868

VENT,FUEL TANK 36/41

$5.99

$

In Stock, only 4 left!

0

27

Husqvarna 545078302

FUEL LINE

Note: From 20101400001 up to 20180500000

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

$3.49

$

In Stock, Qty 14

0

4

Husqvarna 545227101

SCREW 6-19X.437

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 580727101

KIT FUEL LINE

Note: From 20180500001

$17.99

$

In Stock, Qty 10

0

29

Husqvarna 530029850

CHAIN CATCHER 36/41

$6.99

$

In Stock, only 2 left!

0

26

Husqvarna 530095601

NEEDS DESCRIPTION

Note: 30 pcs, plastic bag of 530095646

$

$

Currently unavailable

31

Husqvarna 530016439

SCREW

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 530038990

SPIKE
(Superseded to 530014381)

$9.49

$

In Stock, Qty 7

0

13

Husqvarna 529310301

BOLT
(Superseded to 529310302)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 545071201

SPRING

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 580727101

KIT FUEL LINE

Note: From 20180500001

$17.99

$

In Stock, Qty 10

0

3

Husqvarna 545061201

REAR WALL

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 545061901

ISOLATOR FILTER HOUSING

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 580727101

KIT FUEL LINE

Note: From 20180500001

$17.99

$

In Stock, Qty 10

0

25

Husqvarna 545063101

SPRING

$9.49

$

In Stock, Qty 9

0
