236 R - Husqvarna Brush Cutter (SN: 20150400001 - 20180500000) CARBURETOR & AIR FILTER Parts Diagram

Brush Cutter

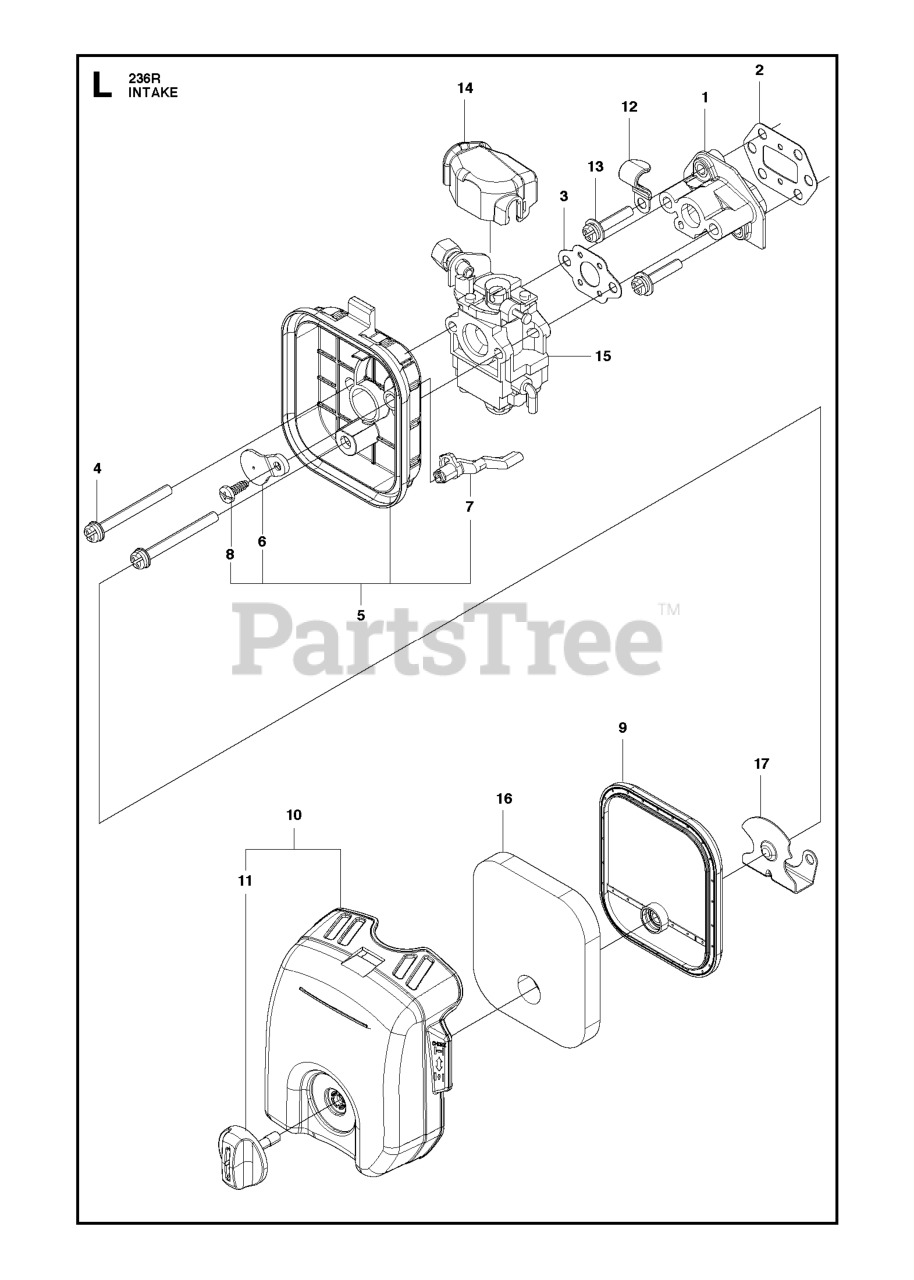

CARBURETOR & AIR FILTER Parts Diagram

  • Title

6

Husqvarna 505308901

PLATE, CHOKE

$

$

Not available

7

Husqvarna 505309001

LEVER.CHOKE

$

$

Not available

10

Husqvarna 575331105

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 506744201

COVER

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505304801

SCREW

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 505308701

SCREW

$3.99

$

In Stock, only 1 left!

0

3

Husqvarna 505305001

GASKET

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575331401

KNOB

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 587287602

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 587106701

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 587088001

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 526520501

INSULATOR

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505304901

GASKET

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587930701

FILTER

$11.99

$

In Stock, Qty 20+

0

5

Husqvarna 587017002

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 506614001

SCREW
(Superseded to 516771801)

$3.99

$

In Stock, only 4 left!

0
