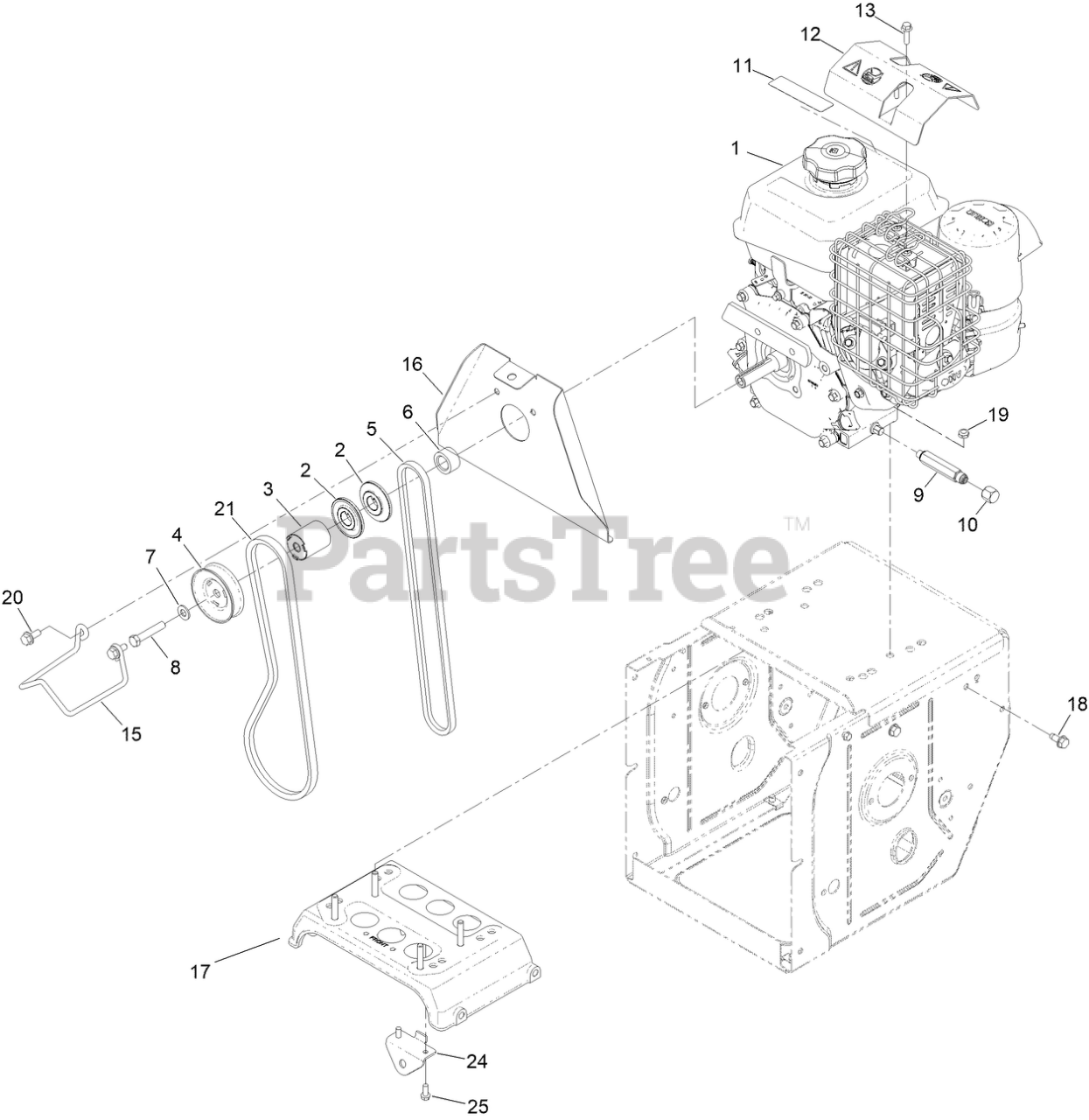

23741 - Toro Walk-Behind Rotary Power Broom (SN: 415000000 - 416299999) Engine Assembly Parts Diagram

Walk-Behind Rotary Power Broom

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, CH270

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1

ENGINE-KOHLER, CH270

Note: Not serviced separately

$

$

Not available

2

Toro 144-1240

SHEAVE-TRACTION

$5.99

$

Usually ships in 3-6 days

0

3

Toro 144-1241

SPACER-PULLEY

$11.99

$

Usually ships in 3-6 days

0

4

Toro 137-6179

PULLEY-IMPELLER

$13.99

$

Usually ships in 3-6 days

0

5

Toro 109-7299

BELT,3L P21 DRIVE

$29.99

$

Usually ships in 3-6 days

0

6

Toro 144-1242

SPACER

$6.49

$

Usually ships in 3-6 days

0

7

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

8

Toro 120-2302

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

9

Toro 116-8721

ADAPTER

$47.99

$

Usually ships in 3-6 days

0

10

Toro 01-201-4520

CAP

$4.49

$

Usually ships in 3-6 days

0

11

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

12

Toro 126-4178

DEFLECTOR,DEBRIS MUFFLER

$

$

Currently unavailable

13

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

15

Toro 144-2816

GUIDE-BELT

$8.99

$

Usually ships in 3-6 days

0

16

Toro 140-7945-03

COVER-CRANK

$23.99

$

Usually ships in 3-6 days

0

17

Toro 144-0331

PLATE-ENGINE, ASM

$96.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 137-3089

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

20

Toro 138-0690

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 80-3590

V-BELT

$61.99

$

Usually ships in 3-6 days

0

24

Toro 136-6644-03

BRACKET-CONTROL, TRACTION

$2.99

$

Usually ships in 3-6 days

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
