23800 A (2024) - Toro Directional Drill (SN: 314000001 - 314999999) (2014) HYDRAULIC CYLINDER ASSEMBLY NO. AU8HC21004 Parts Diagram

Directional Drill

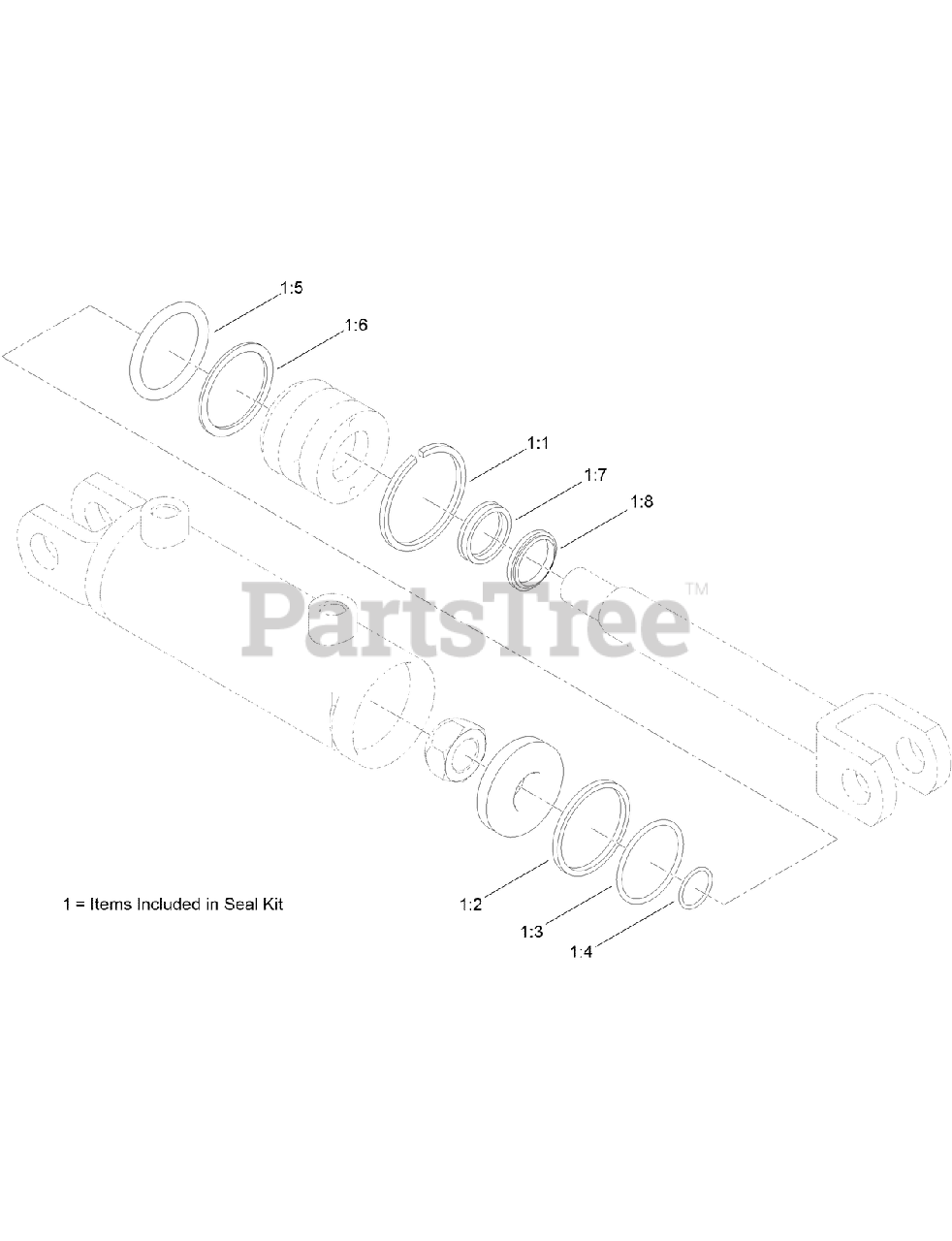

HYDRAULIC CYLINDER ASSEMBLY NO. AU8HC21004 Parts Diagram

  • Title

1

Toro AU8HC21004-1

SEAL KIT

$

$

Currently unavailable

1:1

RING-RETAINING

Note: Not serviced separately

$

$

Not available

1:2

Seal-Teflon

Note: Not serviced separately

$

$

Not available

1:3

O-RING

Note: Not serviced separately

$

$

Not available

1:4

O-RING

Note: Not serviced separately

$

$

Not available

1:5

O-RING

Note: Not serviced separately

$

$

Not available

1:6

Washer-Back Up

Note: Not serviced separately

$

$

Not available

1:7

Seal-U Cup

Note: Not serviced separately

$

$

Not available

1:8

WIPER

Note: Not serviced separately

$

$

Not available
