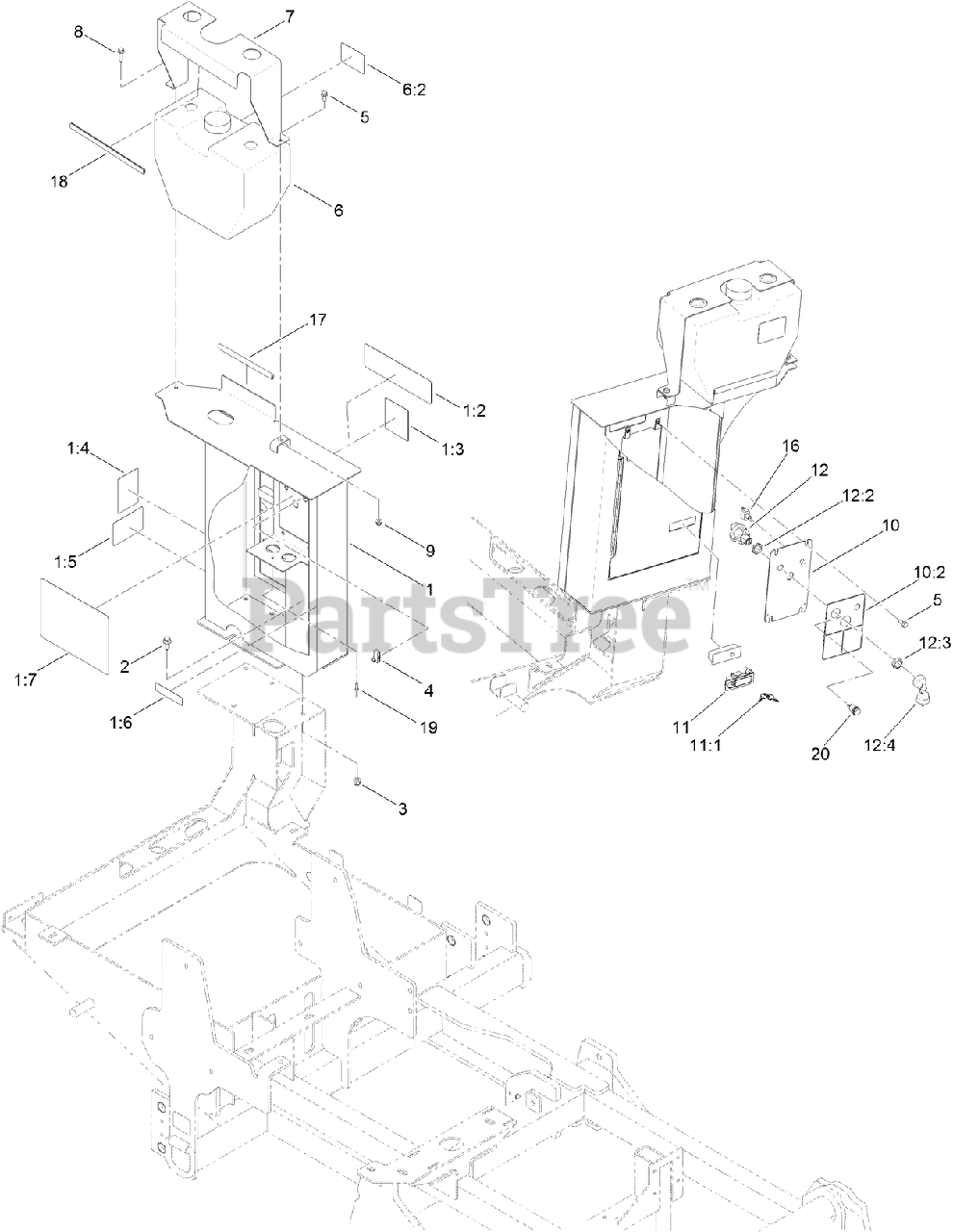

23800 C (2024) - Toro Directional Drill (SN: 315000001 - 315999999) (2015) REAR CONTROL BOX AND COOLANT TANK ASSEMBLY Parts Diagram

Directional Drill

REAR CONTROL BOX AND COOLANT TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 127-0903

REAR CONTROL BOX ASM

$

$

Currently unavailable

1:2

Toro 125-6113

DECAL-SAFETY

$

$

Currently unavailable

1:3

Toro 125-6117

DECAL-DANGER, NO RIDERS (REAR)

$

$

Currently unavailable

1:4

Toro 125-6118

DECAL-DANGER, BACK UP

$

$

Currently unavailable

1:5

Toro 125-6120

DECAL-RAISE AND LOWER

$

$

Currently unavailable

1:6

Toro 117-2718

DECAL-ARRESTER, SPARK

$8.49

$

In Stock, only 2 left!

0

1:7

Toro 125-6189

DECAL-SERVICE

$

$

Currently unavailable

2

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

3

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 3 left!

0

4

Toro AU100862

NUT-U

$4.99

$

Usually ships in 3-6 days

0

5

Toro 33104-020

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

6

Toro 127-0905

TANK COOLANT ASM

$

$

Not available

6:2

Toro 125-6137

DECAL-ANTIFREEZE

$

$

Currently unavailable

7

Toro AU113714-03

BRACKET-BOTTLE, ANTI-FREEZE

$

$

Not available

8

Toro 33104-030

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

9

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 127-0906

REAR CONTROL PANEL ASM

$

$

Not available

10:2

Toro 125-6121

DECAL-REAR CONTROL

$

$

Currently unavailable

11

Toro AU50GB2302

LATCH-TRIGGER, RAISED (W/LOCK)

$

$

Not available

11:1

Toro 131-0148

KEY-REPLACEMENT

Note: Not illustrated

$

$

Currently unavailable

12

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 2 left!

0

12:2

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

12:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.49

$

Usually ships in 3-6 days

0

12:4

Toro 121-5162

IGNITION KEY SET

$36.99

$

In Stock, Qty 5

0

16

Toro AU8EO72001

SWITCH-TOOGLE, SPST, ON-OFF (SEALED)

$

$

Currently unavailable

17

Toro 127-5315

TRIM-TANK

$

$

Currently unavailable

18

Toro 127-5316

TRIM-TANK

$

$

Currently unavailable

19

Toro 3269-28

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

20

Toro 131-0039

LAMP-INDICATOR, LED

$

$

Not available
