23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Elevator Assembly Parts Diagram

Directional Drill

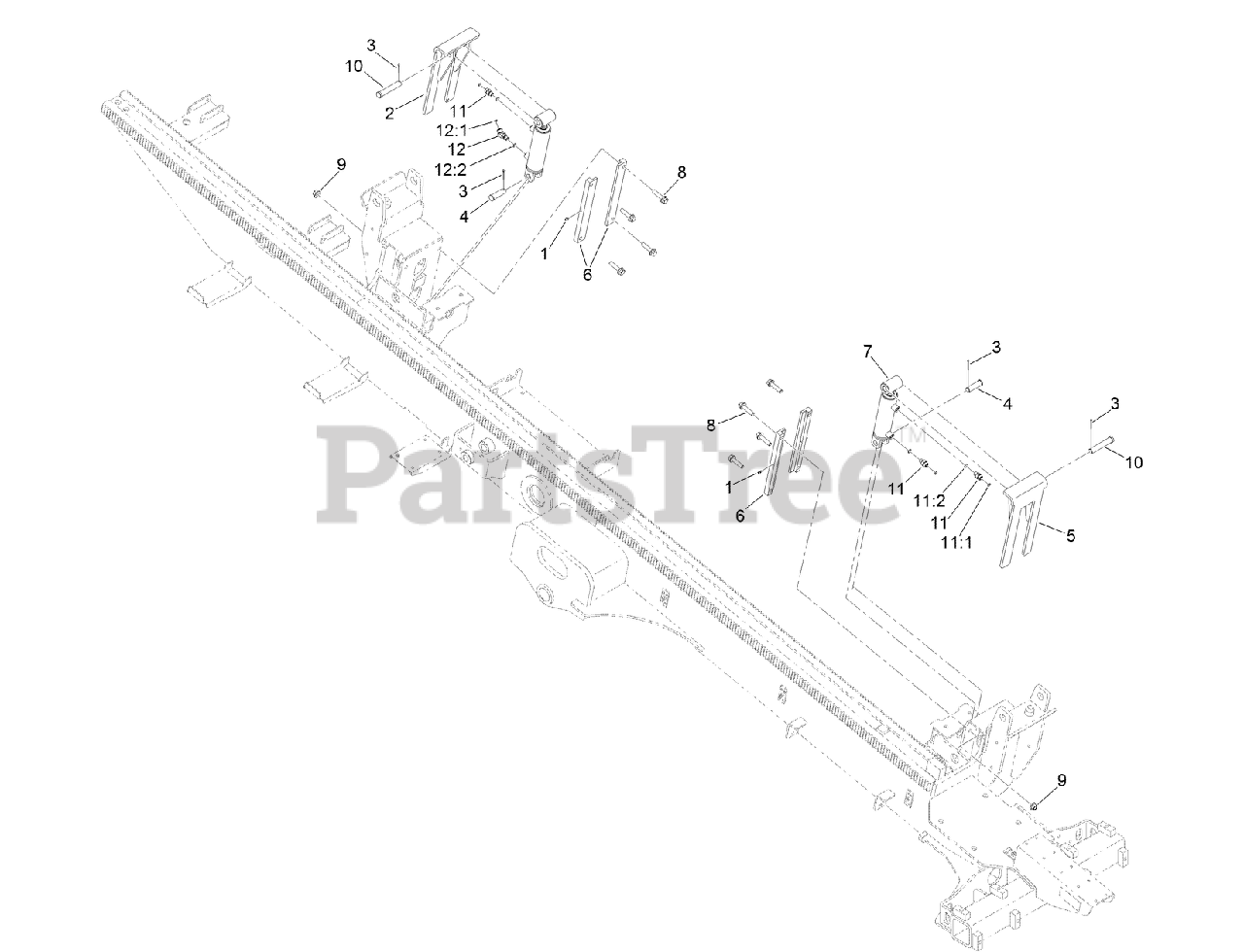

Elevator Assembly Parts Diagram

  • Title

1

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

2

Toro 137-5278-03

ELEVATOR-REAR

$

$

Currently unavailable

3

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

4

Toro AU109885

PIN-CLEVIS

$

$

Currently unavailable

5

Toro 137-5277-03

ELEVATOR-FRONT

$

$

Currently unavailable

6

Toro 137-1707-03

PLATE-GUIDE, ELEVATOR

$

$

Currently unavailable

7

Toro 133-9466

CYLINDER-HYDRAULIC

$

$

Currently unavailable

8

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 136-8908

PIN-CLEVIS

$52.99

$

Usually ships in 3-6 days

0

11

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

11:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 1 left!

0

11:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

12

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 1 left!

0

12:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0
