23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Hydraulic Pump Assembly Parts Diagram

Directional Drill

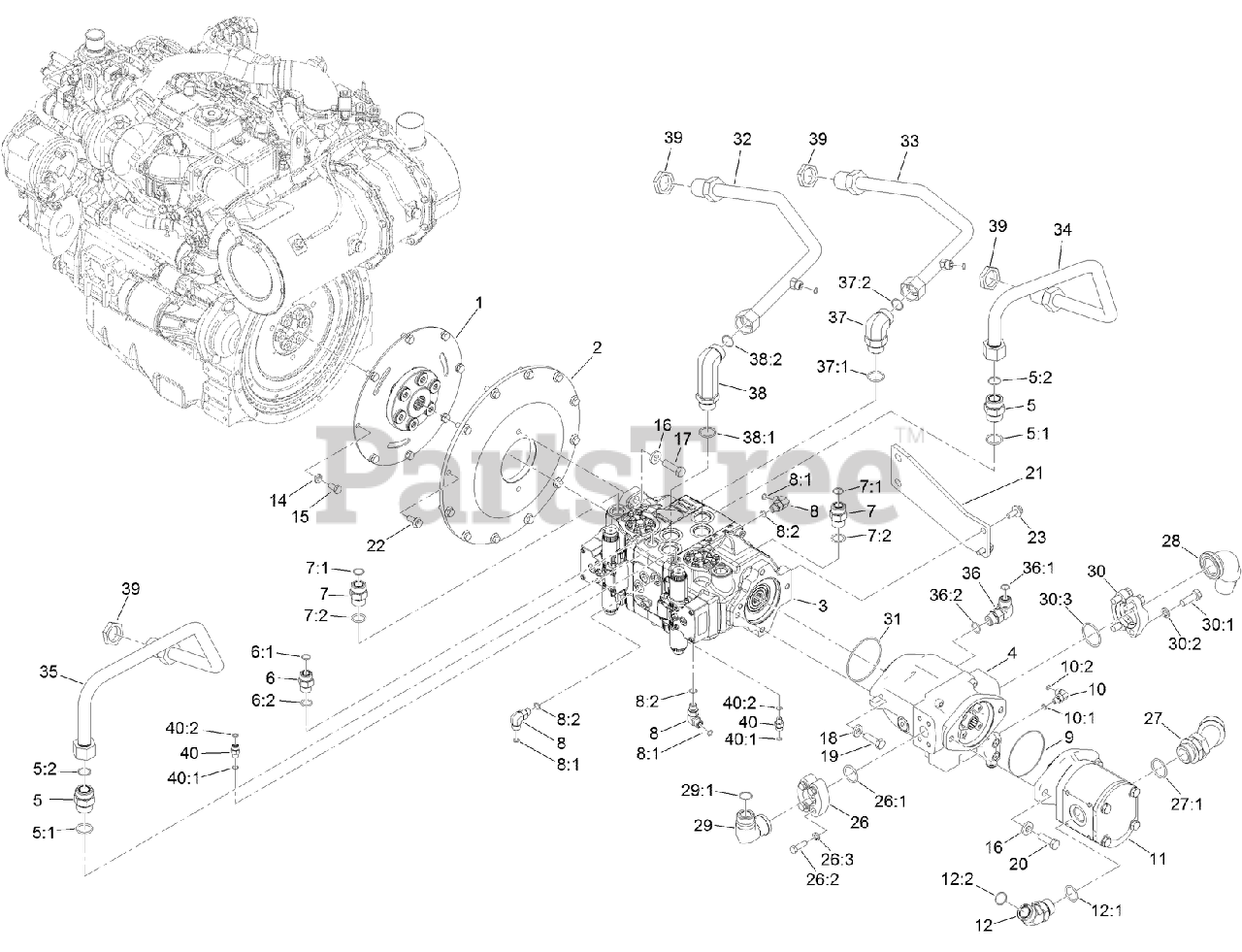

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Toro 130-2585

COUPLER-FLYWHEEL

$789.99

$

Usually ships in 3-6 days

0

2

Toro 131-8912

COVER-FLYWHEEL

$

$

Currently unavailable

3

Toro 131-8949

PUMP-HYDROSTAT

$

$

Currently unavailable

4

Toro 131-8948

PUMP-PISTON, LOAD SENSE

$

$

Currently unavailable

5

Toro 104-3797

FITTING-STRAIGHT

$41.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

5:2

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

6

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

6:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 15

0

6:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

7

Toro 340-9

FITTING-HYD, STRAIGHT

$92.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

7:2

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

8

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 1 left!

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

8:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

9

Toro 115-3009

O-RING

$3.99

$

Usually ships in 3-6 days

0

10

Toro 340-132

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

10:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

11

Toro 131-8947

GEAR PUMP ASM

$

$

Currently unavailable

12

Toro 104-3509

FITTING-HYD, 45 DEG

$111.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

12:2

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

14

Toro 112-7308

WASHER-PLAIN

$25.99

$

Usually ships in 3-6 days

0

15

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

16

Toro 107-3395

WASHER-HARDENED

$2.49

$

Usually ships in 3-6 days

0

17

Toro 121-1524

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 131-8859

WASHER-SPACER, HARDENED

$

$

Currently unavailable

19

Toro 63-11-010

BOLT-HH

$

$

Currently unavailable

20

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 131-8913-03

BRACKET-SUPPORT, PUMP

$

$

Currently unavailable

22

Toro 33105-025

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

23

Toro 33106-025

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU91-FF593-16

FLANGE KIT

$

$

Currently unavailable

26:1

Toro 121-3904

O-RING

$6.99

$

Usually ships in 3-6 days

0

26:2

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

26:3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

27

Toro 133-5976

FITTING-HYD-45

$

$

Currently unavailable

27:1

Toro 237-101

O-RING

$3.99

$

In Stock, only 1 left!

0

28

Toro 133-5978

FITTING-HYD-90

$

$

Currently unavailable

29

Toro 133-5972

FITTING-HYD-90

$

$

Currently unavailable

29:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

30

Toro 133-5973

FLANGE KIT

$

$

Currently unavailable

30:1

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

30:2

Toro 325-37

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

30:3

Toro 133-6134

O-RING

$

$

Currently unavailable

31

Toro 107-9447

O-RING

$9.99

$

Usually ships in 3-6 days

0

32

Toro 137-7150

TUBE ASM-HYD

$

$

Currently unavailable

33

Toro 137-7151

TUBE ASM-HYD

$

$

Currently unavailable

34

Toro 133-6126

TUBE ASM

$

$

Currently unavailable

35

Toro 133-6127

TUBE ASM

$

$

Currently unavailable

36

Toro 340-17

FITTING-ELBOW, 90 DEG

$58.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 15

0

36:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

37

Toro 340-129

FITTING-ELBOW, 90 DEG

$138.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

37:2

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

38

Toro 136-8948

FITTING-ELBOW, 90 LONG

$

$

Currently unavailable

38:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

38:2

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

39

Toro 340-128

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

40

Toro 340-92

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

40:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0
