23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Lubrication Oil Pipe Assembly Parts Diagram

Directional Drill

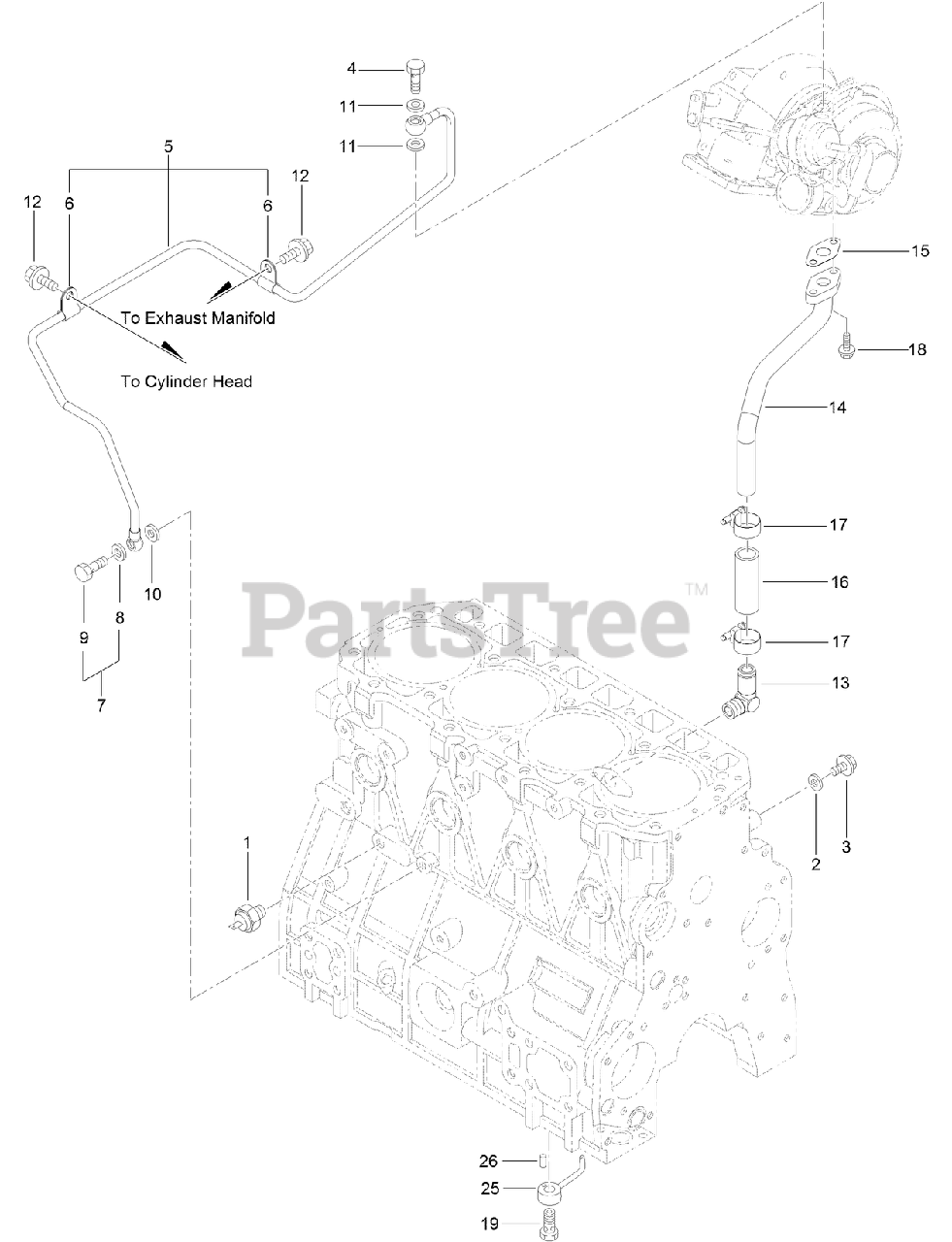

Lubrication Oil Pipe Assembly Parts Diagram

  • Title

1

Toro 125-6918

SWITCH-OIL

$29.99

$

Usually ships in 3-6 days

0

2

Toro 125-7174

WASHER-SEAL

$5.99

$

Usually ships in 3-6 days

0

3

Toro 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

4

Toro 125-6952

BOLT-JOINT, PIPE

$20.99

$

Usually ships in 3-6 days

0

5

Toro 133-6768

L O PIPE ASM

$164.99

$

Usually ships in 3-6 days

0

6

Toro 133-6623

RETAINER

$4.99

$

Usually ships in 3-6 days

0

7

Toro 125-6988

JOINT BOLT ASM

$11.99

$

Usually ships in 3-6 days

0

8

Toro 125-7174

WASHER-SEAL

$5.99

$

Usually ships in 3-6 days

0

9

Toro 125-7194

BOLT-JOINT

$5.99

$

Usually ships in 3-6 days

0

10

Toro 125-7174

WASHER-SEAL

$5.99

$

Usually ships in 3-6 days

0

11

Toro 125-7193

GASKET

$1.49

$

Usually ships in 3-6 days

0

12

Toro 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

13

Toro 125-6971

ELBOW

$40.99

$

Usually ships in 3-6 days

0

14

Toro 133-6769

PIPE-L O RETURN T/C

$195.99

$

Usually ships in 3-6 days

0

15

Toro 133-6666

GASKET

$11.99

$

Usually ships in 3-6 days

0

16

Toro 125-6958

HOSE

$15.99

$

Usually ships in 3-6 days

0

17

Toro 125-7188

CLAMP-HOSE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0

19

Toro 133-6665

CHECK VALVE ASM

$46.99

$

Usually ships in 3-6 days

0

25

Toro 133-6602

NOZZLE

$36.99

$

Usually ships in 3-6 days

0

26

Toro 125-7182

PIN-SPRING

$4.49

$

Usually ships in 3-6 days

0
