23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Main Frame Assembly No. 131-0128 Parts Diagram

Directional Drill

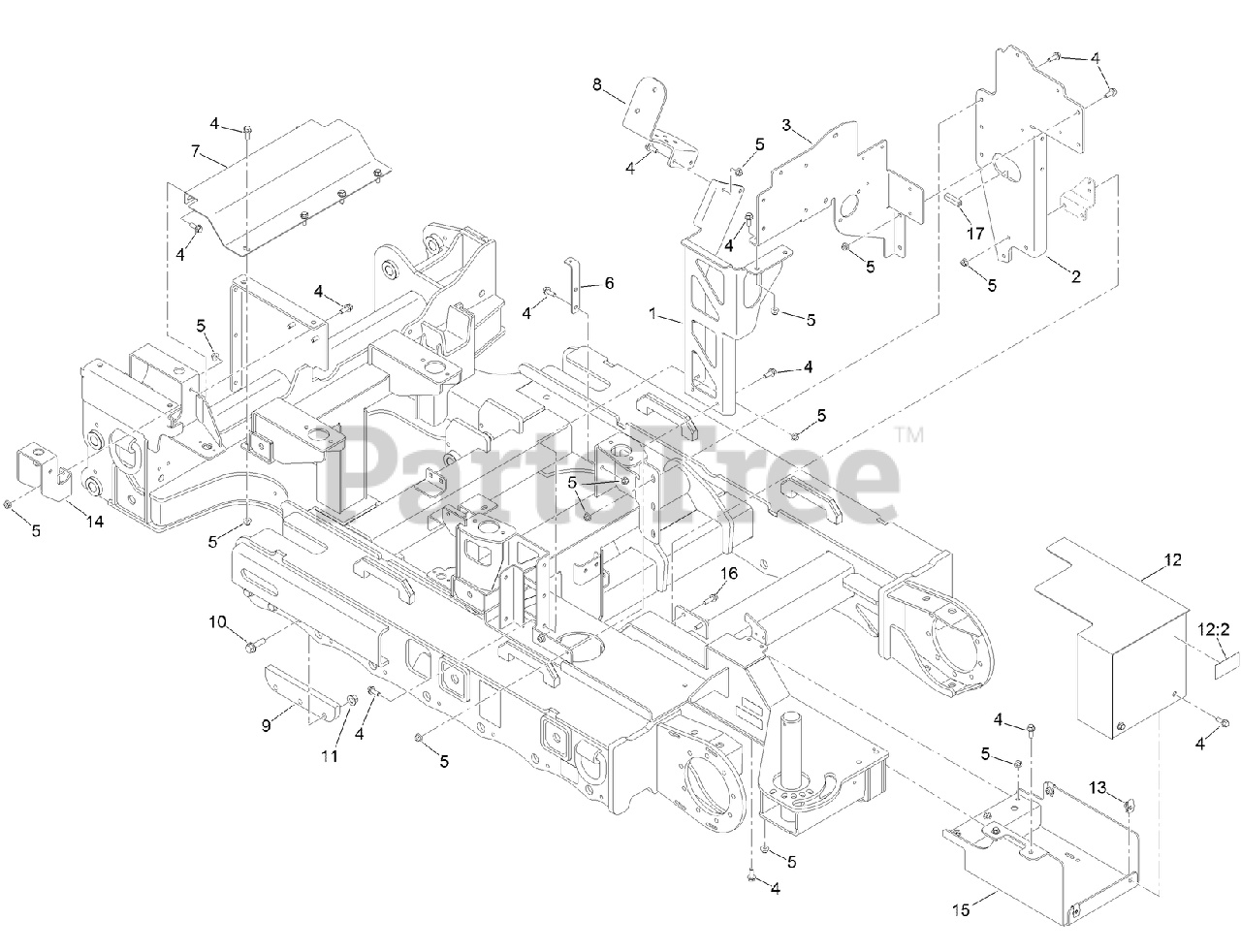

Main Frame Assembly No. 131-0128 Parts Diagram

  • Title

1

Toro 133-9626-03

See Supercession: 138-7002-03

$

$

Not available

2

Toro 136-6818-03

PLATE-MOUNT, ECU

$

$

Currently unavailable

3

Toro 137-8370-03

PANEL-ELECTRICAL, FRONT

$

$

Currently unavailable

4

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 17

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 122-1008

BRACKET-CLIP, HARNESS

$

$

Currently unavailable

7

Toro 136-1553-03

PLATE-RECIRCULATION

$

$

Currently unavailable

8

Toro 133-9479-03

PLATE-MOUNT, TOP

$

$

Currently unavailable

9

Toro 136-6014-03

PLATE-TENSIONER, SLIDER

$

$

Currently unavailable

10

Toro 130-6481

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

11

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

12

Toro 137-5293

COVER-BATTERY

$

$

Currently unavailable

12:2

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

13

Toro 105-4886

NUT-TINNERMAN

$2.99

$

In Stock, only 1 left!

0

14

Toro 136-6015-03

GUSSET-TRACK

$

$

Currently unavailable

15

Toro 137-1770-03

COVER-BATTERY, LOWER

$

$

Currently unavailable

16

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

17

Toro 70-2040

TRIM

$4.49

$

Usually ships in 3-6 days

0
