23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Operator Console Assembly Parts Diagram

Directional Drill

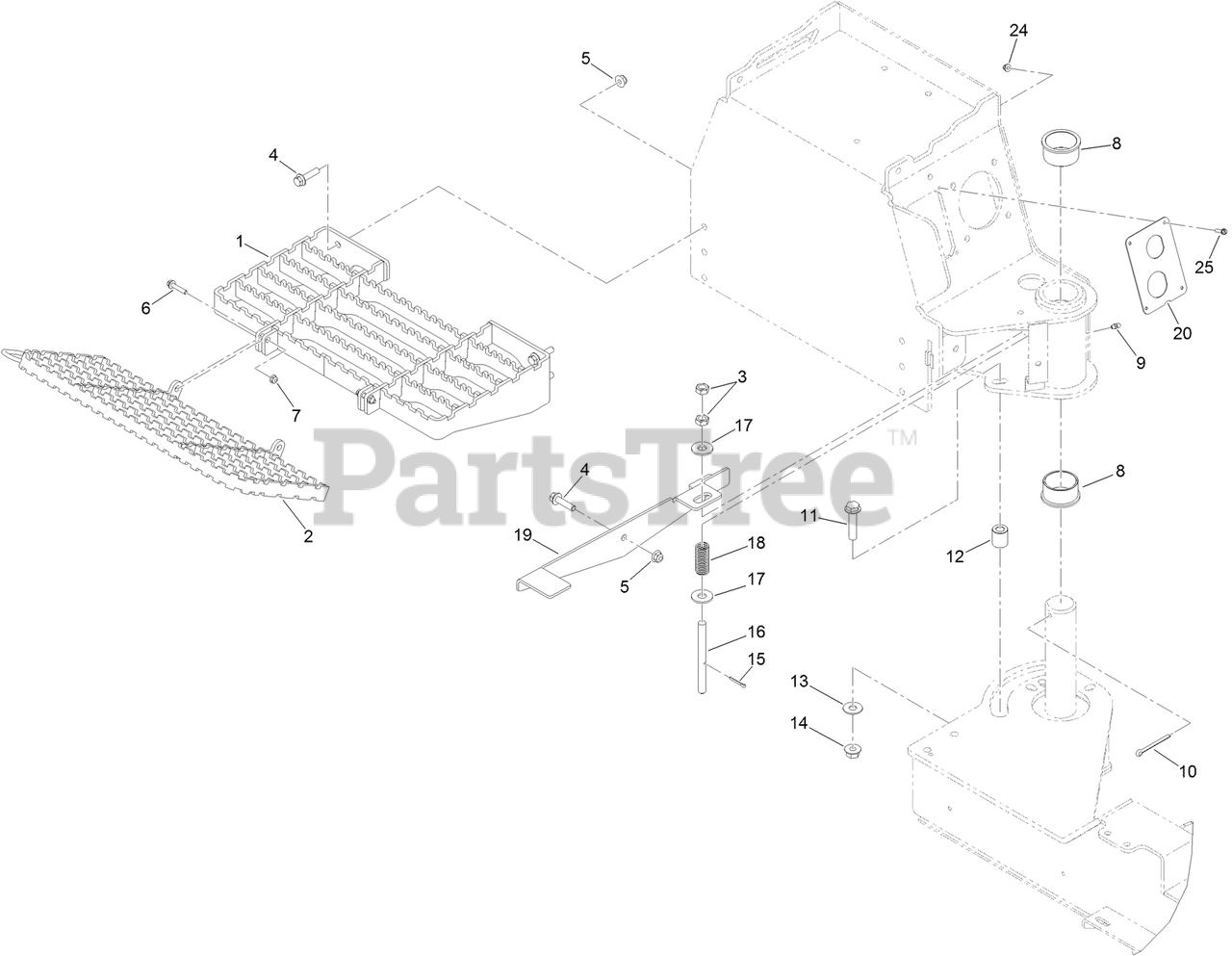

Operator Console Assembly Parts Diagram

  • Title

1

Toro 138-1270-01

PLATFORM-CONSOLE, LOWER

$

$

Currently unavailable

2

Toro 138-1276-01

PLATFORM-CONSOLE, UPPER

$

$

Currently unavailable

3

Toro 3218-18

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

4

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 93-4665

BUSHING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

10

Toro 3272-37

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3234-46

SCREW-HHF

$14.99

$

Usually ships in 3-6 days

0

12

Toro 116-4317

SPACER

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

14

Toro 108-3745

NUT-HHF, WHIZ

$1.99

$

Usually ships in 3-6 days

0

15

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

16

Toro 136-8846

ROD-SWING, SEAT

$

$

Currently unavailable

17

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

19

Toro 136-8922-03

HANDLE-CONSOLE, SEAT PIVOT

$

$

Currently unavailable

20

Toro 136-8934-01

PLATE-HARNESS, MOUNT

$

$

Currently unavailable

24

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

25

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0
