23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Radiator and Oil Cooler Hydraulic Hose Assembly Parts Diagram

Directional Drill

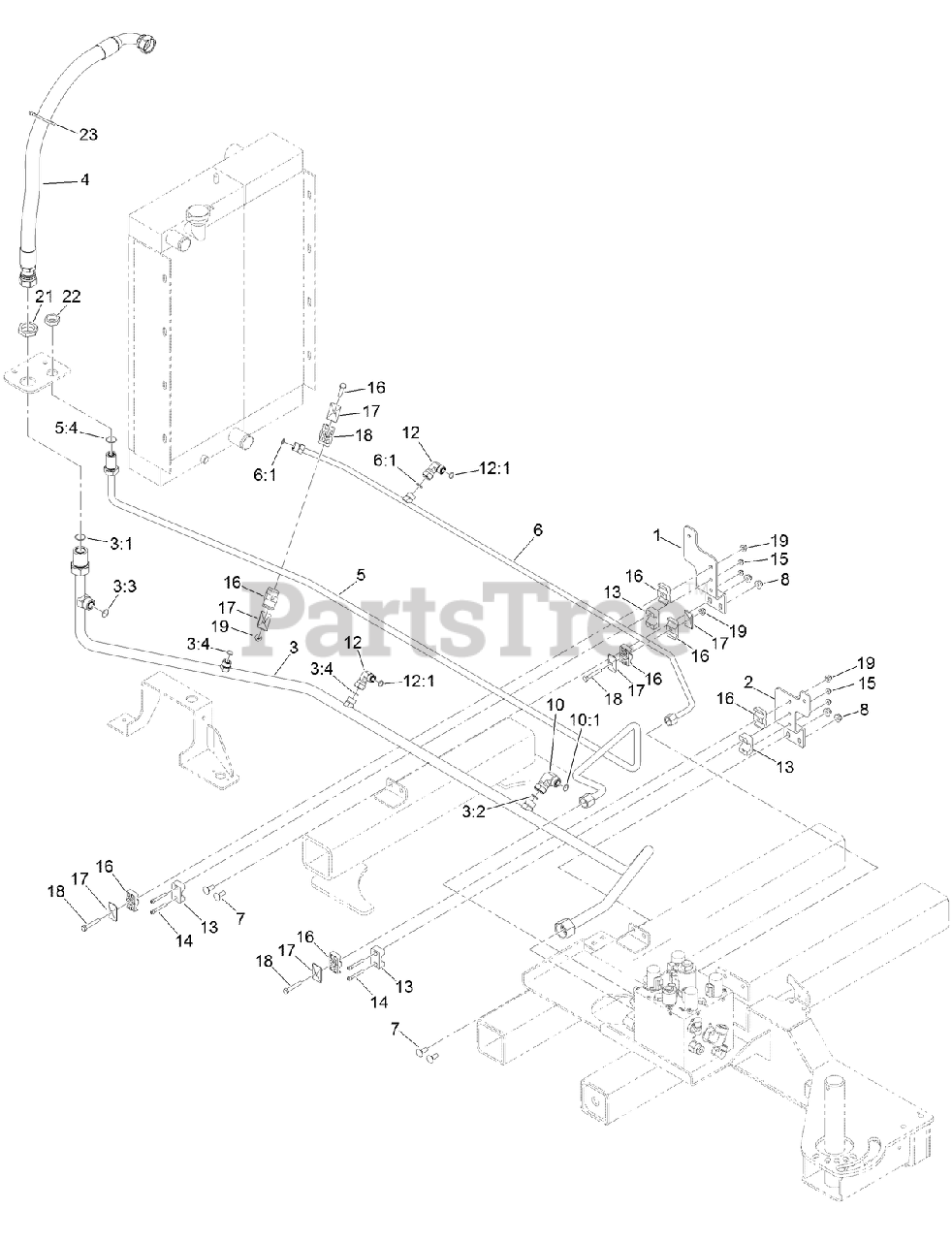

Radiator and Oil Cooler Hydraulic Hose Assembly Parts Diagram

  • Title

1

Toro 136-8834-03

BRACKET-HANGER, REAR

$

$

Currently unavailable

2

Toro 136-8833-03

BRACKET-HANGER, FRONT

$

$

Currently unavailable

3

Toro 133-6101

TUBE ASM

$

$

Currently unavailable

3:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 8

0

3:2

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 15

0

3:3

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

3:4

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 133-5993

HOSE ASM-HYD

$

$

Currently unavailable

5

Toro 136-8801

TUBE ASM-HYD

$

$

Currently unavailable

5:4

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 15

0

6

Toro 136-8867

TUBE ASM-HYD

$

$

Currently unavailable

6:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

7

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 340-160

FITTING-HYD-90

$107.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 15

0

12

Toro 94-6031

FITTING-HYD

$77.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

13

Toro 114-4901

CLAMP

$6.49

$

Usually ships in 3-6 days

0

14

Toro 119-4035

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 56-7977

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

17

Toro 69-9760

COVERPLATE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 340-128

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

22

Toro 340-74

NUT-LOCK, BULKHEAD

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
