23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Rear Switch Panel and Work Lights Assembly Parts Diagram

Directional Drill

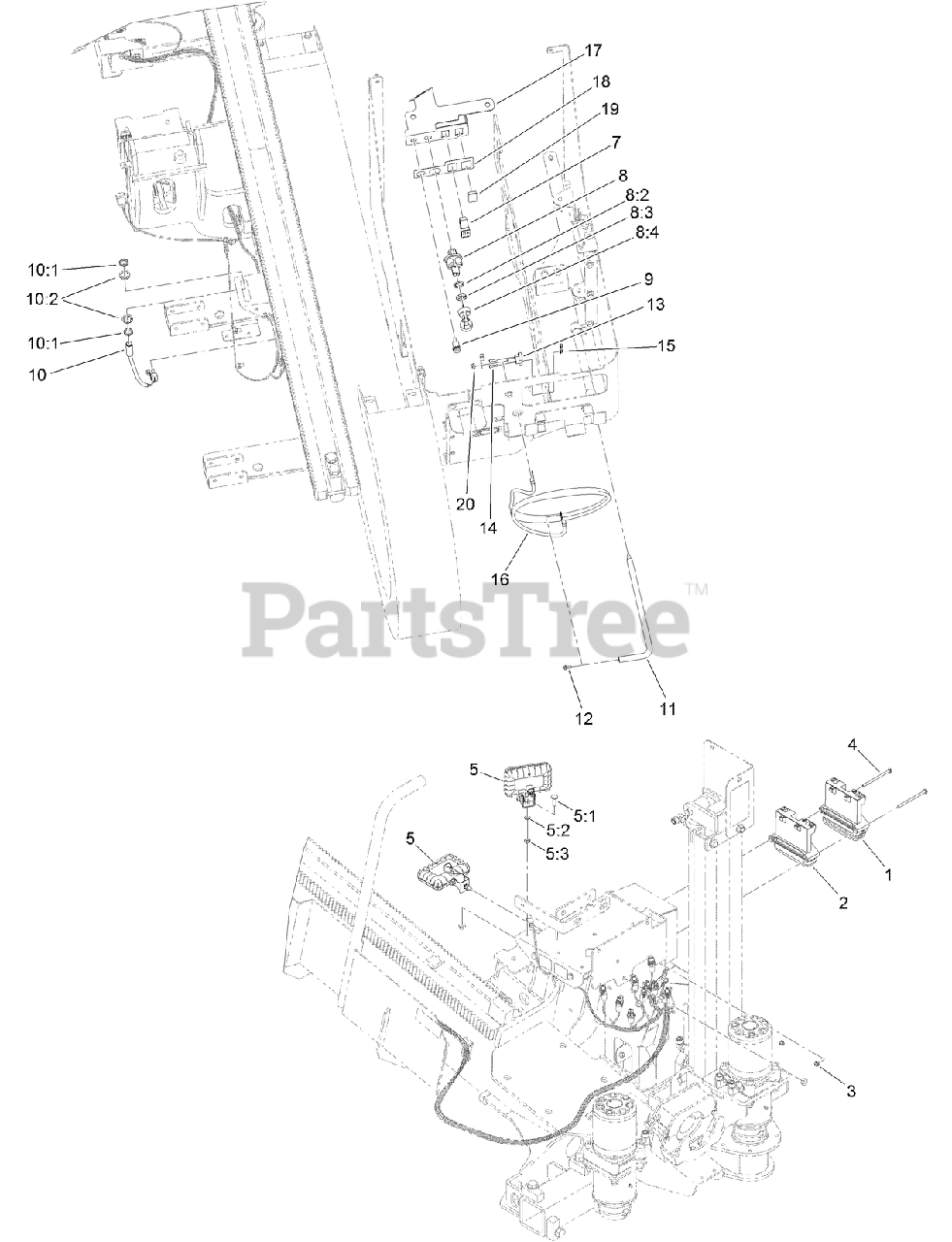

Rear Switch Panel and Work Lights Assembly Parts Diagram

  • Title

1

Toro 132-5736

MODULE-EXPANSION (OX024-110)

$

$

Currently unavailable

2

Toro 133-6313

MODULE-EXPANSION (IOX024-120)

$

$

Currently unavailable

3

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 321-34

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

5

Toro 122-0371

LIGHT-WORK, LED

$232.99

$

Usually ships in 3-6 days

0

5:1

Toro 3230-28

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

5:2

Toro 3253-33

WASHER-LOCK

$1.99

$

In Stock, Qty 11

0

5:3

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

7

Toro 95-8999

SWITCH

$47.99

$

In Stock, only 1 left!

0

8

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 2 left!

0

8:2

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

8:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.49

$

Usually ships in 0 days

0

8:4

Toro 121-5162

SET-KEY, IGNITION

$36.99

$

In Stock, only 2 left!

0

9

Toro 131-0040

LAMP-INDICATOR, LED

$

$

Not available

10

Toro 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 20+

0

10:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

10:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

In Stock, only 4 left!

0

11

Toro AU109224

BAR-STAKE, GROUND

$

$

Currently unavailable

12

Toro 114-8414

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Toro 110-8823

BLOCK-JUNCTION

$54.99

$

Usually ships in 3-6 days

0

14

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

15

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU124406

CABLE-ALERT, STRIKE

$

$

Currently unavailable

17

Toro 137-8355-03

PANEL-SWITCH

$

$

Currently unavailable

18

Toro 137-7161

DECAL-CONTROLS

$

$

Currently unavailable

19

Toro 99-7420

PLUG-HOLE

$8.99

$

Usually ships in 3-6 days

0

20

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0
