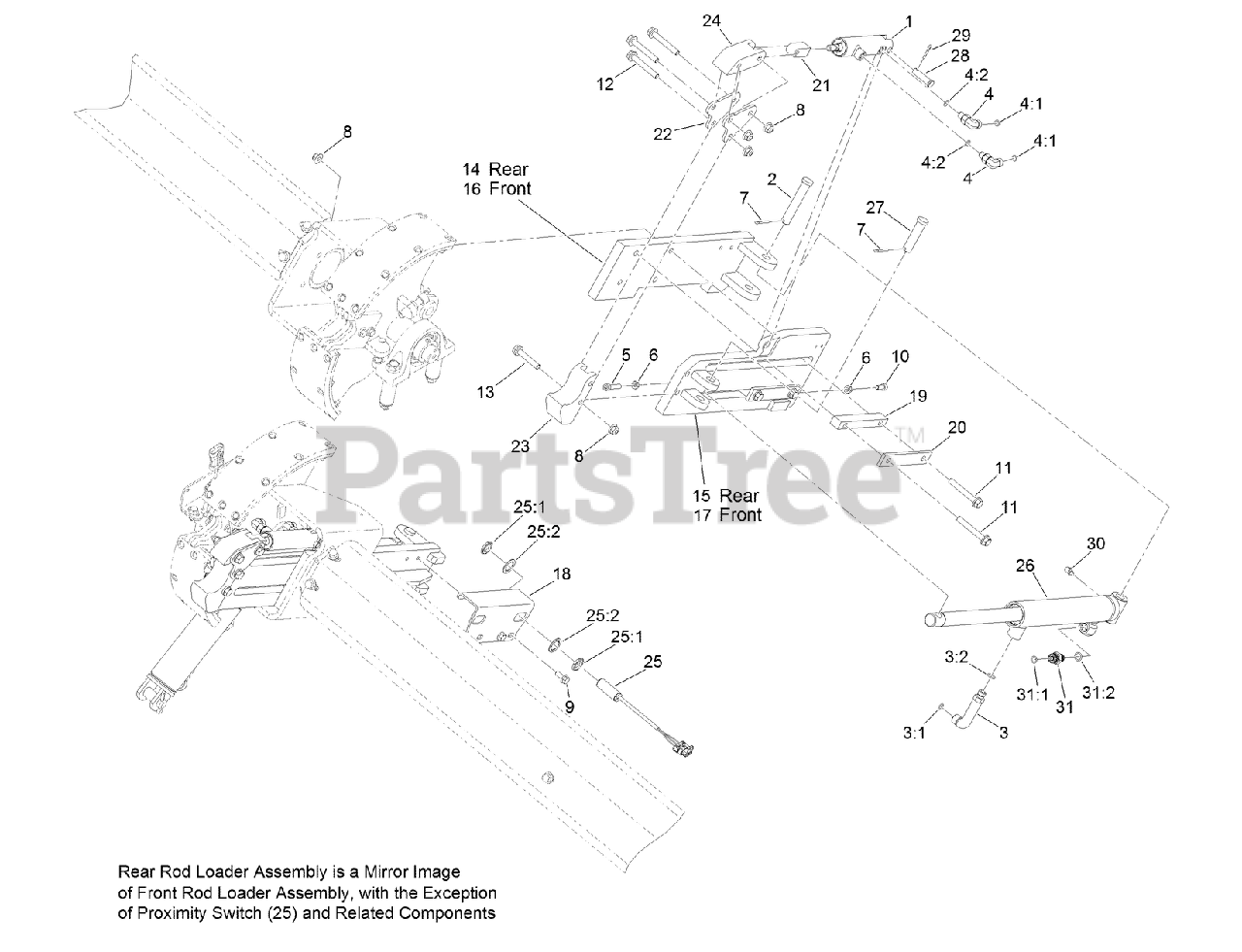

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Rod Loader Assembly Parts Diagram

Directional Drill

Rod Loader Assembly Parts Diagram

  • Title

1

Toro 125-4463

HYD CYLINDER ASM

$

$

Currently unavailable

2

Toro 283-78

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

3

Toro 69-4320

FITTING-HYD, 90 DEG

$239.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

3:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 340-132

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

4:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

5

Toro 3274-83

SCREW-HSH

$3.49

$

In Stock, only 2 left!

0

6

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

10

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 20+

0

11

Toro 133-9682

SCREW-HFH

$1.49

$

Usually ships in 3-6 days

0

12

Toro 3234-39

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

14

Toro 136-6851-01

ARM-EXTENSION, REAR

$

$

Currently unavailable

15

Toro 133-9639-01

SLIDER-REAR

$

$

Currently unavailable

16

Toro 136-6850-01

ARM-EXTENSION, FRONT

$

$

Currently unavailable

17

Toro 133-9638-01

SLIDER-FRONT

$

$

Currently unavailable

18

Toro 133-6058-01

PLATE-MOUNT, SENSOR

$

$

Currently unavailable

19

Toro 133-9641-01

GUIDE-ARM, EXTENSION

$

$

Currently unavailable

20

Toro 133-9642-01

CAP-GUIDE, EXTENSION ARM

$

$

Currently unavailable

21

Toro 133-9646

ROD-EYE, CYLINDER

$

$

Currently unavailable

22

Toro 133-9645

PLATE-GRIPPER, ROTATE

$

$

Currently unavailable

23

Toro 133-9643

INSERT-GRIPPER, FIXED

$

$

Currently unavailable

24

Toro 133-9644

INSERT-GRIPPER, ROTATE

$

$

Currently unavailable

25

Toro 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, only 4 left!

0

25:1

Toro 117-3207

NUT-HEX

$56.99

$

Usually ships in 3-6 days

0

25:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$10.99

$

Usually ships in 3-6 days

0

26

Toro 133-5959

CYLINDER-HYDRAULIC

$

$

Currently unavailable

27

Toro AUH32920

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

28

Toro 127-0889

PIN-CLEVIS

$

$

Currently unavailable

29

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

30

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

31

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

31:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

31:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0
