23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Rotary Gearbox Assembly No. 137-5287 Parts Diagram

Directional Drill

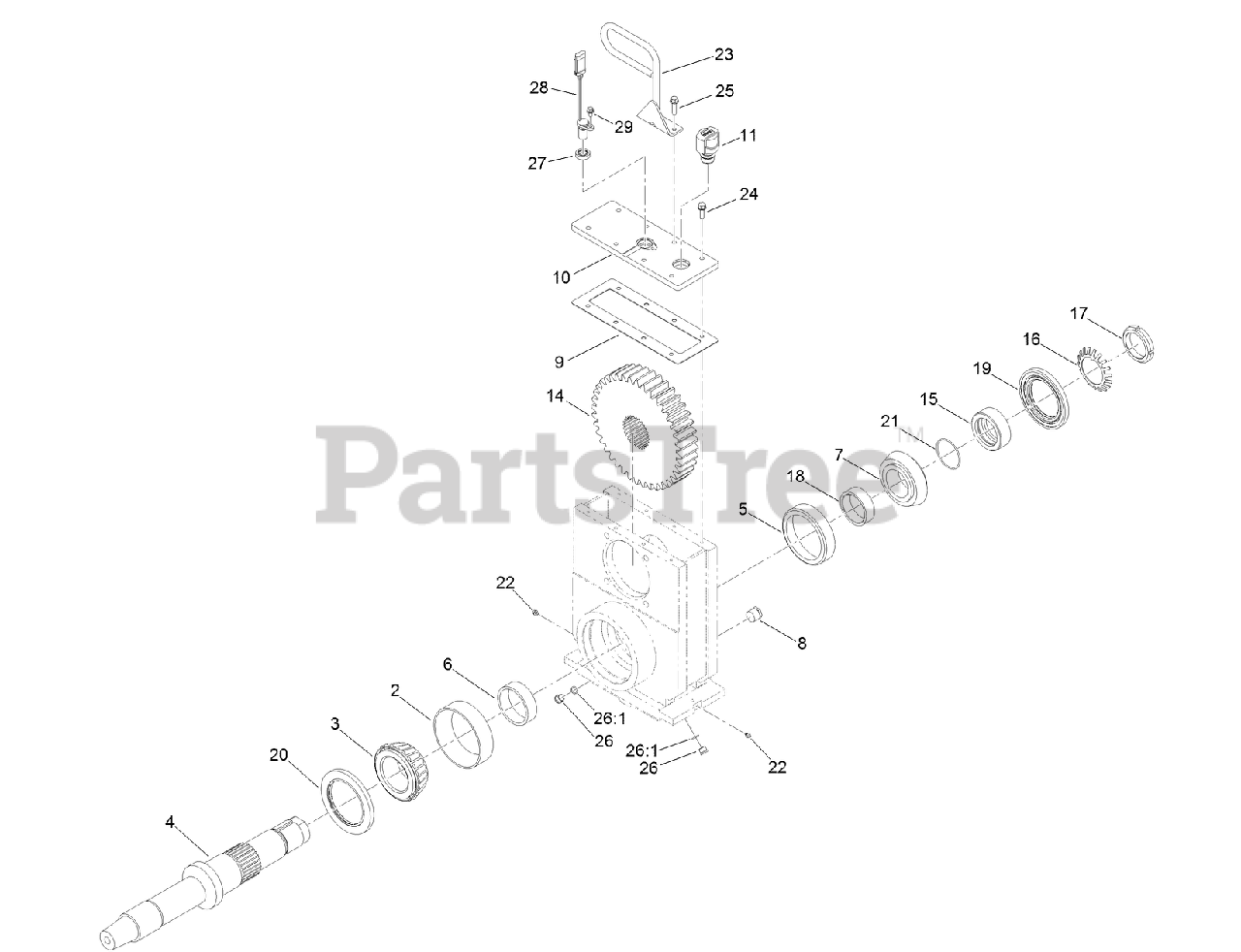

Rotary Gearbox Assembly No. 137-5287 Parts Diagram

  • Title

2

Toro 133-6233

BEARING-CUP

$

$

Currently unavailable

3

Toro 133-6232

BEARING-CONE

$

$

Currently unavailable

4

Toro 136-3951

SPINDLE-ROTARY

$

$

Currently unavailable

5

Toro AU8CF63017

CUP-BEARING

$

$

Currently unavailable

6

Toro 136-3952

SPACER-SHAFT

$

$

Currently unavailable

7

Toro AU8CF63016

CONE-BEARING

$

$

Currently unavailable

8

Toro AU8PP70008

PLUG-SITE, GLASS

$

$

Currently unavailable

9

Toro 133-6235

GASKET-COVER, ROTARY BOX

$

$

Currently unavailable

10

Toro 136-7659

PLATE-COVER, ROTARY BOX

$

$

Currently unavailable

11

Toro 115-9793

BREATHER

$73.99

$

Usually ships in 3-6 days

0

14

Toro 133-6241

GEAR-DRIVEN

$

$

Currently unavailable

15

Toro 133-6242

SPACER-HOLDER, O-RING

$

$

Currently unavailable

16

Toro 133-6248

WASHER-LOCK

$

$

Currently unavailable

17

Toro 104-1973

NUT-LOCK, BEARING

$80.99

$

Usually ships in 3-6 days

0

18

Toro 133-6243

SPACER-GEAR

$

$

Currently unavailable

19

Toro 133-9496

SEAL-SHAFT

$

$

Currently unavailable

20

Toro 131-2649

SEAL-ROTARY BOX

$

$

Currently unavailable

21

Toro 133-6244

O-RING

$

$

Currently unavailable

22

Toro 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 20+

0

23

Toro 136-1465

HOSE HOLDER

$

$

Currently unavailable

24

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

25

Toro 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

26

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

27

Toro 92-3735

SEAL-SENSOR, OIL

$8.99

$

Usually ships in 3-6 days

0

28

Toro 120-4800

SENSOR-GEARTOOTH

$210.99

$

Usually ships in 3-6 days

0

29

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0
