23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Thrust Frame Hose Carrier Assembly Parts Diagram

Directional Drill

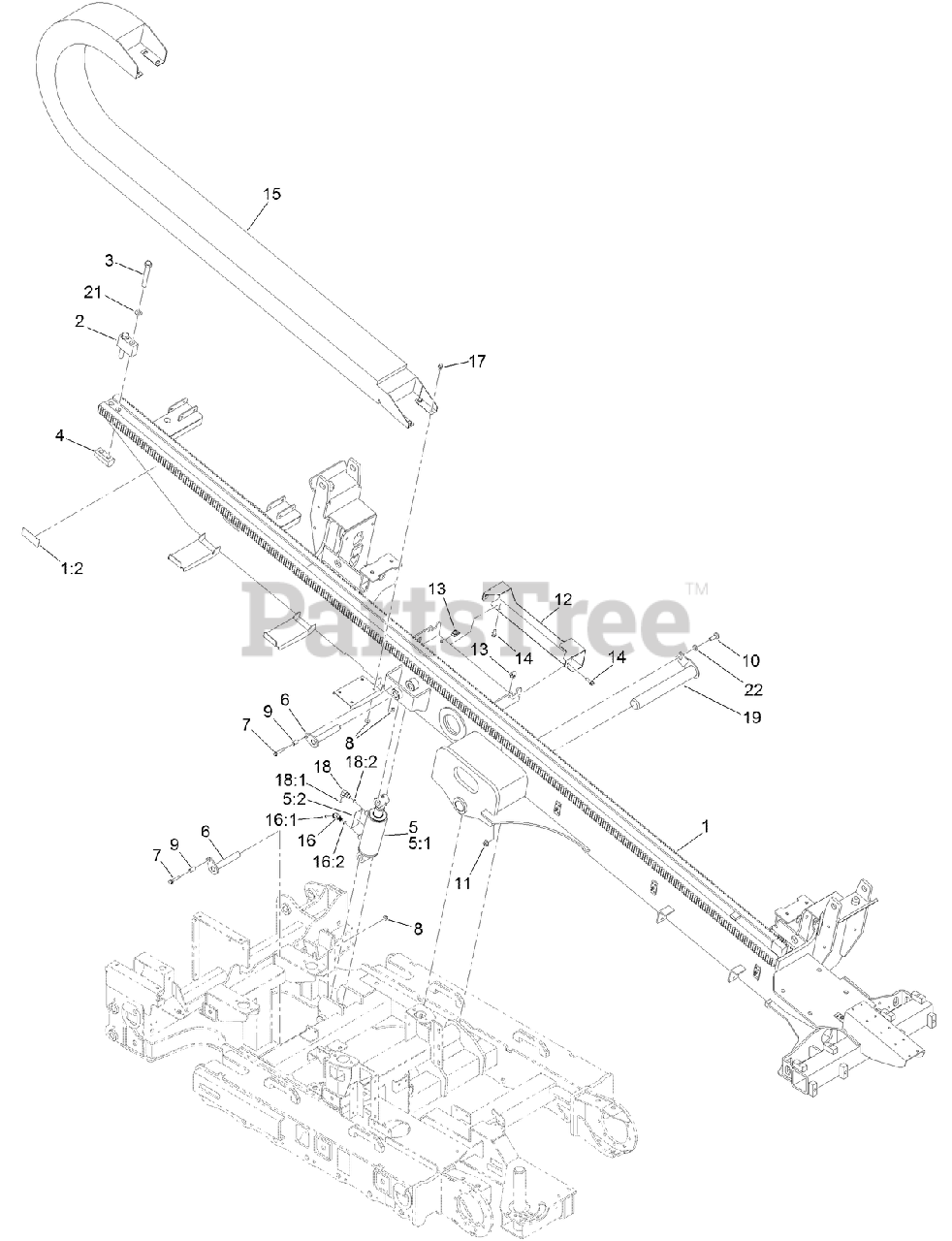

Thrust Frame Hose Carrier Assembly Parts Diagram

  • Title

1

Toro 133-6251

THRUST FRAME ASM

$

$

Currently unavailable

1:2

Toro 137-7166

DECAL-DANGER, CRUSHING

$

$

Currently unavailable

2

Toro AU12GB2030-03

STOP-CARRIAGE

$

$

Currently unavailable

3

Toro 328-9

SCREW-HH

$22.99

$

In Stock, only 1 left!

0

4

Toro 137-1819

BLOCK-TAPPED

$

$

Currently unavailable

5

Toro 133-6311

LIFT CYLINDER ASM

$

$

Currently unavailable

5:1

Toro 133-5958

CYLINDER-HYDRAULIC

$

$

Currently unavailable

5:2

Toro 125-6115

DECAL-CAUTION, CYLINDER LOCK

$

$

Currently unavailable

6

Toro 136-8919

PIN-PIVOT

$

$

Currently unavailable

7

Toro 108-3742

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 136-1464

SPACER

$

$

Currently unavailable

10

Toro 108-1993

SCREW-HSBH

$22.99

$

Usually ships in 3-6 days

0

11

Toro 108-3745

NUT-HHF, WHIZ

$1.99

$

Usually ships in 3-6 days

0

12

Toro 133-6145-03

COVER-MANIFOLD

$

$

Currently unavailable

13

Toro 112-4576

See Supercession: 105-4886
(Superseded to 105-4886)

$3.49

$

Usually ships in 3-6 days

0

14

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

15

Toro 132-5747

CARRIER-HOSE

$

$

Currently unavailable

16

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 6

0

16:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 323-41

DISCONTINUED

$1.99

$

In Stock, Qty 14

0

18

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 6

0

18:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

19

Toro 133-9686

PIN-FRAME, THRUST

$

$

Currently unavailable

21

Toro 108-8613

WASHER

$29.99

$

Usually ships in 3-6 days

0

22

Toro 138-1314

WASHER

$

$

Currently unavailable
