23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Tool Joint Lube Applicator Assembly Parts Diagram

Directional Drill

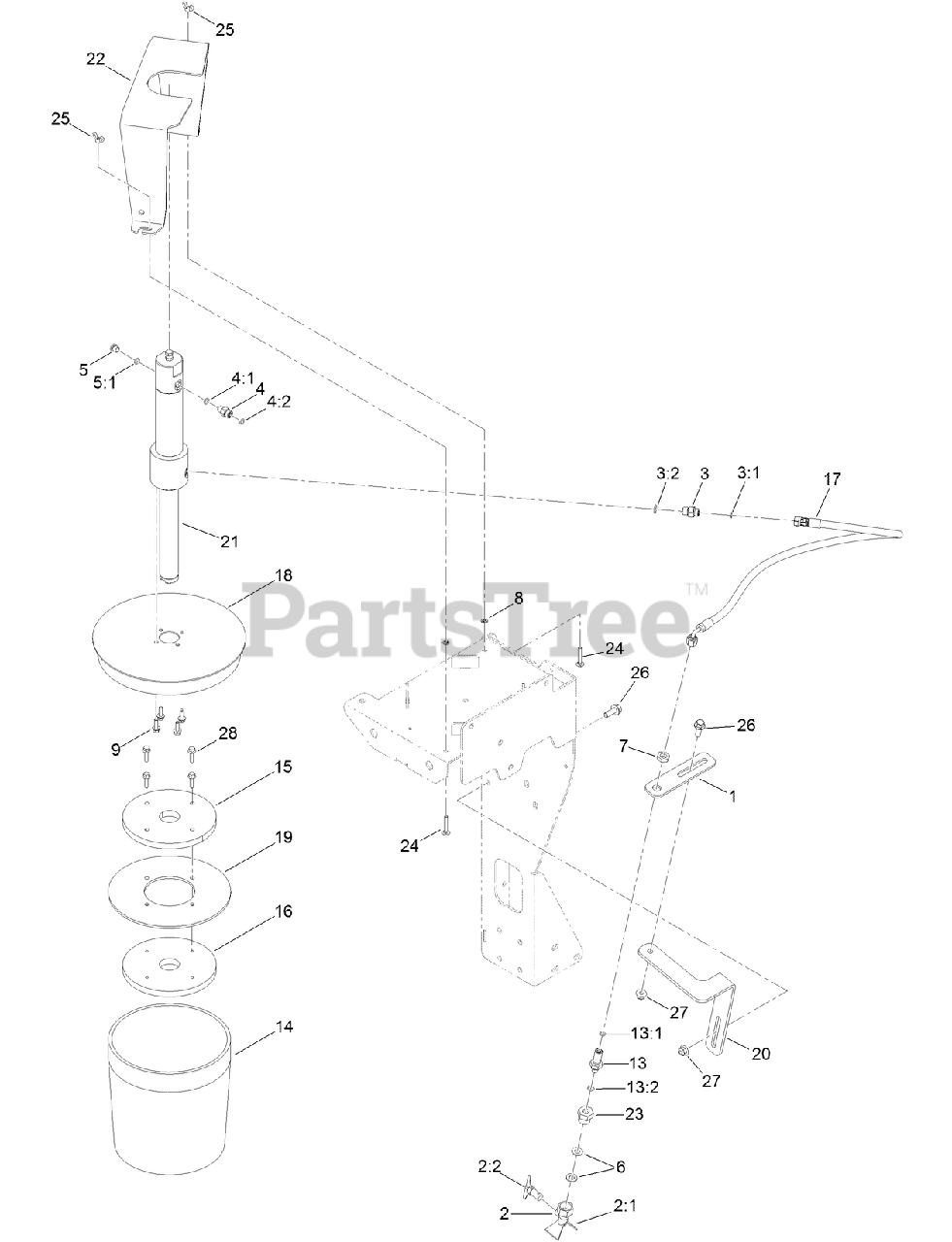

Tool Joint Lube Applicator Assembly Parts Diagram

  • Title

1

Toro 133-6093-03

PLATE-MOUNT, NOZZLE

$

$

Currently unavailable

2

Toro 125-4539

SPRAY NOZZLE ASM

$

$

Currently unavailable

2:1

Toro 125-4540

NOZZLE-SPRAY, AIRLESS

$

$

Currently unavailable

2:2

Toro 125-4541

ORIFICE INSERT ASM

$

$

Currently unavailable

3

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

3:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 340-92

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

4:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

5

Toro 353-990

PLUG ASM

$11.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 340-78

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

8

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

9

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU8OA90404

FITTING-STRAIGHT

$

$

Currently unavailable

13:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

13:2

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

14

Toro 137-1735

COMPOUND-THREAD

$

$

Currently unavailable

15

Toro AU108640-03

PLATE

$

$

Not available

16

Toro AU108641-03

PLATE

$

$

Currently unavailable

17

Toro AU108645

HOSE-HYD

$

$

Currently unavailable

18

Toro AU108790-03

COVER-APPLICATOR, LUBE

$

$

Not available

19

Toro AU108814

SEAL-RUBBER, FOLLOWER

$

$

Not available

20

Toro 133-6094-03

PLATE-SUPPORT, NOZZLE

$

$

Currently unavailable

21

Toro AU108837-03

HYD GREASE PUMP ASM

$

$

Currently unavailable

22

Toro AU109840-03

TIEDOWN-COVER, GREASE

$

$

Not available

23

Toro AU8SA31004

REDUCER-STRAIGHT, THREADED

$

$

Currently unavailable

24

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, Qty 6

0

25

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 20+

0

26

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 17

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0
