23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Traction Manifold and Loading Manifold Hydraulic Hose Assembly Parts Diagram

Directional Drill

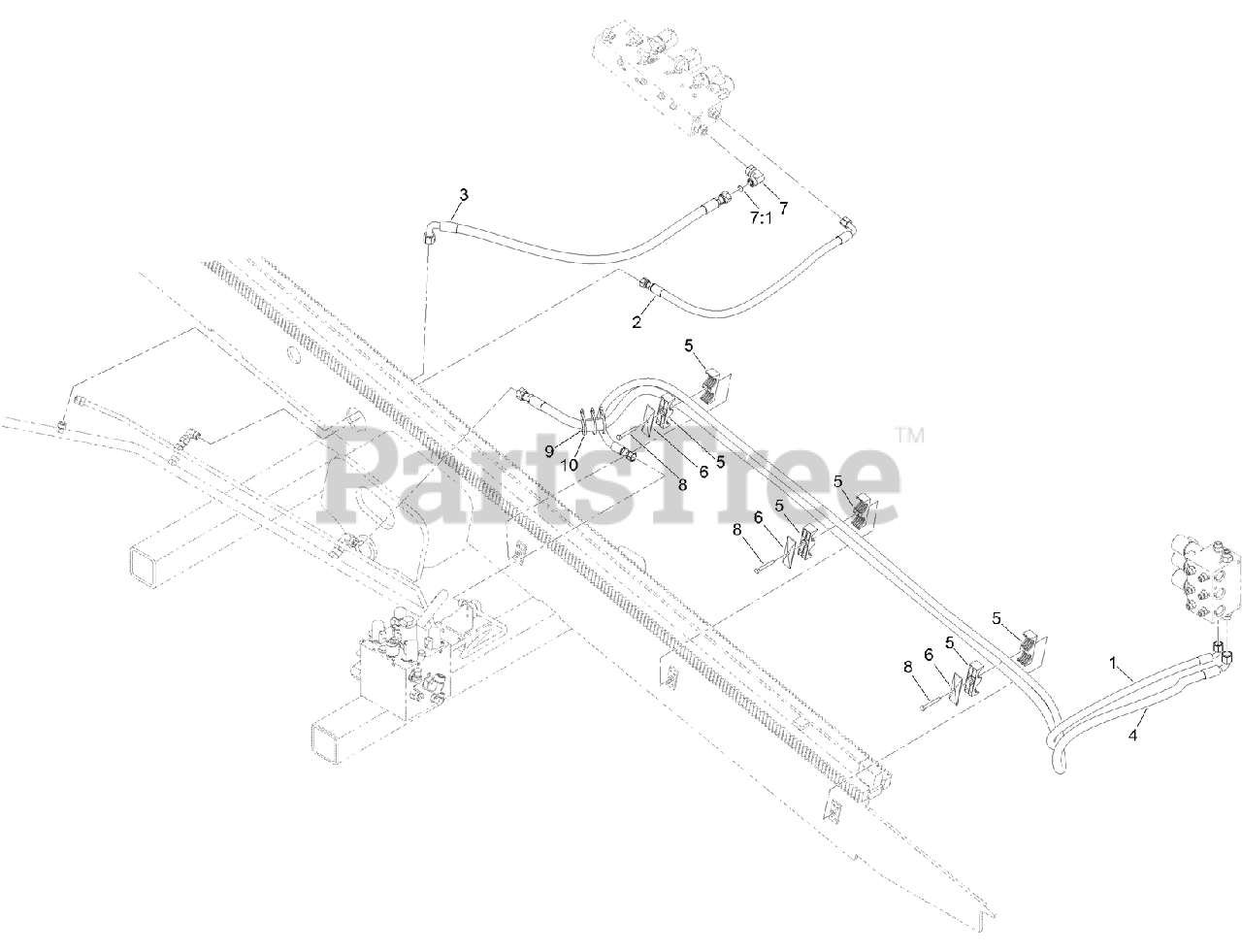

Traction Manifold and Loading Manifold Hydraulic Hose Assembly Parts Diagram

  • Title

1

Toro 137-5266

HOSE-HYD

$

$

Currently unavailable

2

Toro 133-5999

HOSE-HYD

$

$

Currently unavailable

3

Toro 137-5267

HOSE-HYD

$

$

Currently unavailable

4

Toro 133-6027

HOSE ASM-HYD

$

$

Currently unavailable

5

Toro 130-7451

CLAMP-TWIN

$

$

Currently unavailable

6

Toro 127-8425

PLATE-REATAINER, CLAMP

$4.49

$

Usually ships in 3-6 days

0

7

Toro 340-160

FITTING-HYD-90

$107.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 15

0

8

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

9

Toro AU112950

PROTECTOR-HOSE

$28.99

$

Usually ships in 3-6 days

0

10

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
