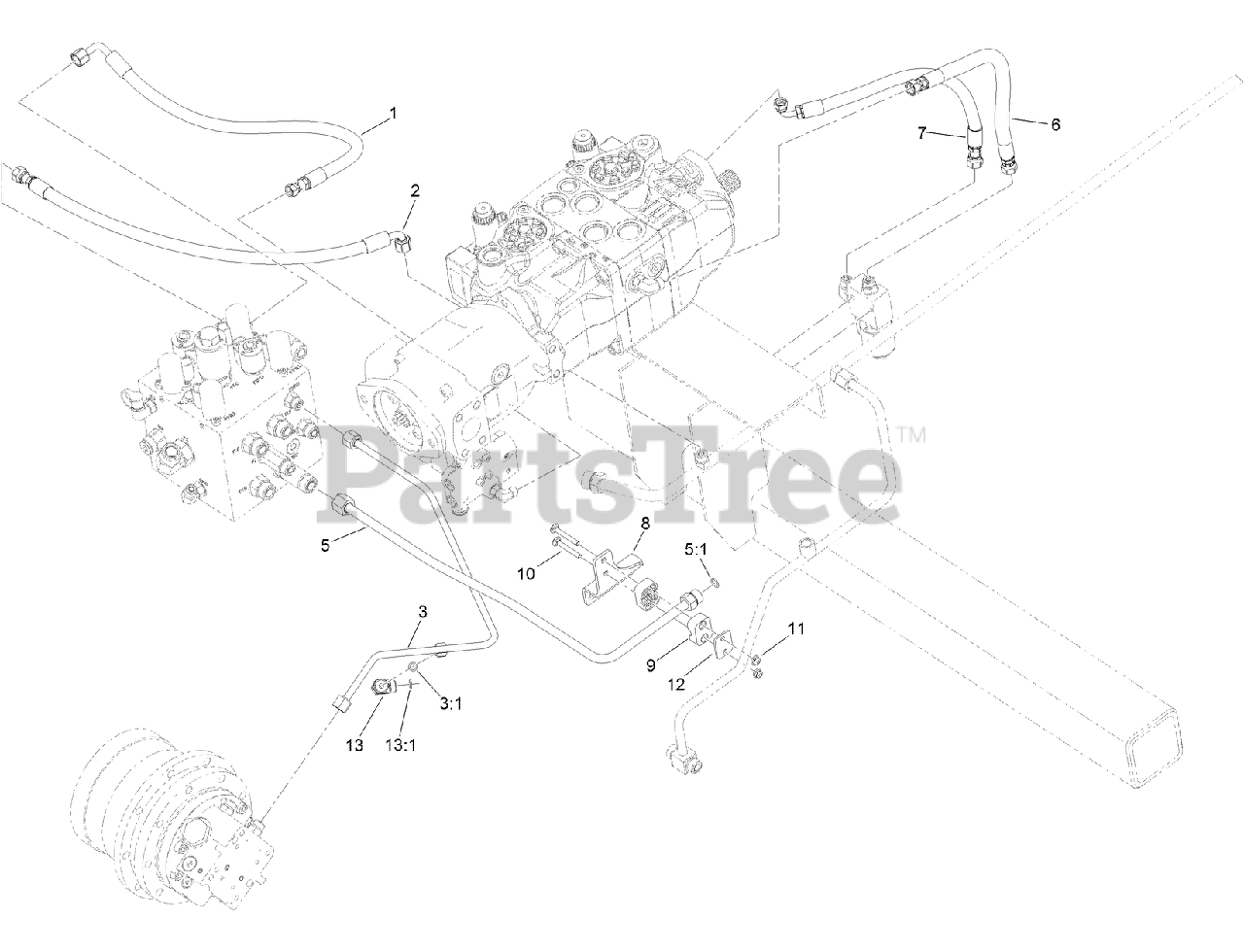

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Traction Two Speed Hydraulic Hose Assembly Parts Diagram

Directional Drill

Traction Two Speed Hydraulic Hose Assembly Parts Diagram

  • Title

1

Toro 133-5981

HOSE-HYD

$

$

Currently unavailable

2

Toro 133-6050

HOSE-HYD

$

$

Currently unavailable

3

Toro 137-5255

HYD TUBE ASM

$

$

Currently unavailable

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

5

Toro 137-5263

HYD TUBE ASM

$

$

Currently unavailable

5:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Toro 136-8927

HOSE-HYD

$

$

Currently unavailable

7

Toro 136-8928

HOSE-HYD

$

$

Currently unavailable

8

Toro 138-4794-03

BRACKET-CLAMP, STAKE DOWN

$

$

Currently unavailable

9

Toro 136-8813

CLAMP-TUBE

$

$

Currently unavailable

10

Toro 3230-33

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

11

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 137-1775

PLATE-COVER, CLAMP

$

$

Currently unavailable

13

Toro 340-159

FITTING-HYD, 90 DEG

$63.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0
