23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Wrench Manifold Assembly No. 133-5952 Parts Diagram

Directional Drill

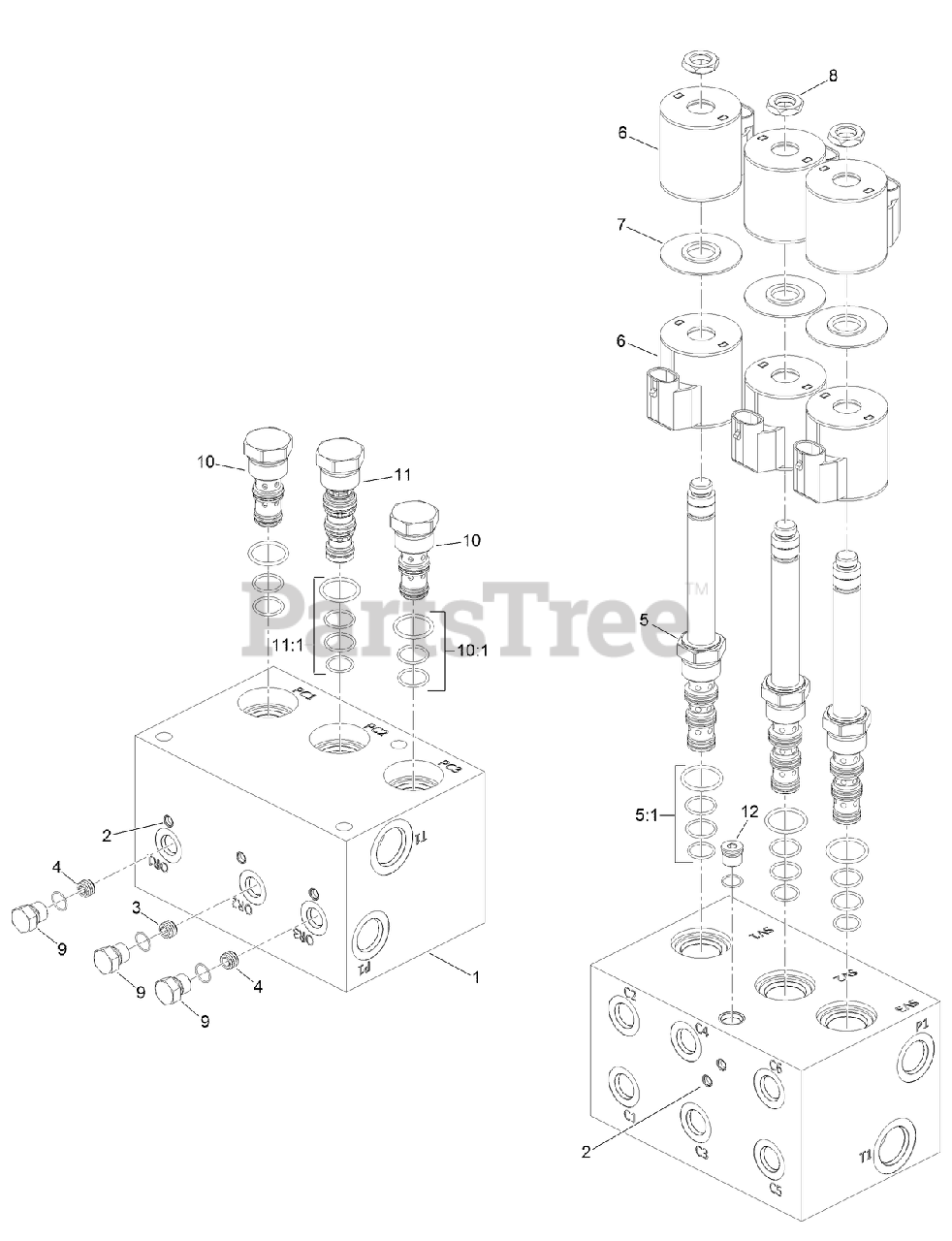

Wrench Manifold Assembly No. 133-5952 Parts Diagram

  • Title

1

BLOCK-MANIFOLD

Note: Not serviced separately

$

$

Not available

2

Deck ASM

Note: Not serviced separately

$

$

Not available

3

Toro 137-5124

ORIFICE

$

$

Currently unavailable

4

Toro 137-5125

ORIFICE

$

$

Currently unavailable

5

Toro 137-8394

VALVE-CARTRIDGE, MOTOR SPOOL

$

$

Currently unavailable

5:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$35.99

$

Usually ships in 3-6 days

0

6

Toro 110-6344

COIL-12V, DC

$196.99

$

Usually ships in 3-6 days

0

7

Toro 117-8316

SPACER-E COIL

$32.99

$

Usually ships in 3-6 days

0

8

Toro 110-2634

NUT-COIL

$6.99

$

Usually ships in 3-6 days

0

9

Toro 117-0115

PLUG

$18.99

$

Usually ships in 3-6 days

0

10

Toro 137-5151

VALVE-CHECK

$

$

Currently unavailable

10:1

Toro 116-9719

SEAL KIT

$15.99

$

Usually ships in 3-6 days

0

11

Toro 138-1305

VALVE-CHECK

$

$

Currently unavailable

11:1

Toro 131-8637

SEAL KIT

$

$

Currently unavailable

12

Toro 112-9212

PLUG

$3.99

$

Usually ships in 3-6 days

0
