2381 (UT-26009) - Green Machine Snow Thrower Attachment (1996-01) Snow Thrower Attachment Parts Diagram

Snow Thrower Attachment

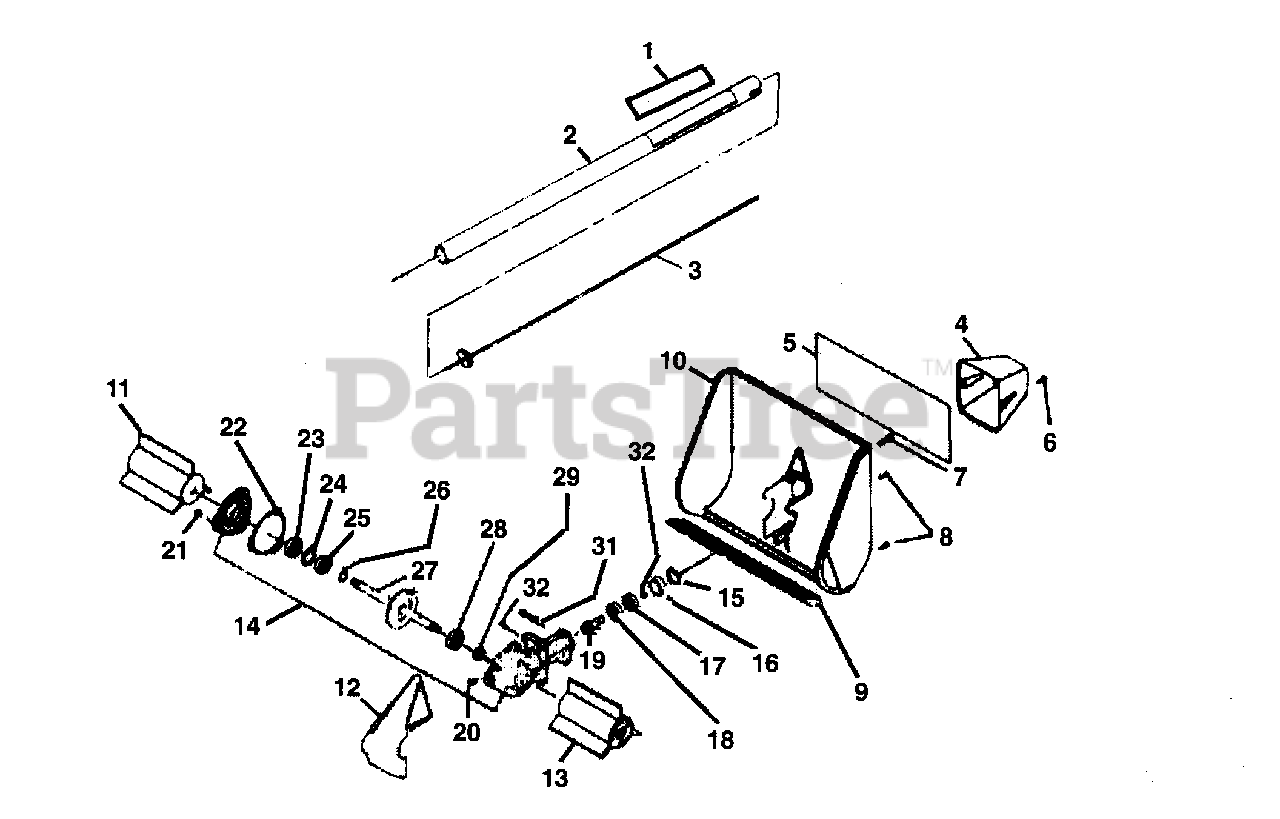

Snow Thrower Attachment Parts Diagram

  • Title

1

Homelite GM289504

LABEL, WARNING

$

$

Currently unavailable

2

Homelite A07864

TUBE ASSY.
(Superseded to UP04543)

$

$

Not available

3

Homelite A08177

FLEX CABLE

$

$

Not available

4

Homelite GM235213

COVER B

$

$

Currently unavailable

5

Homelite GM239518

DECAL

$

$

Currently unavailable

6

Homelite GM012464

SCREW

Note: Torque Specs: 5-20 In/Lbs; 5-2.3 Nm

$

$

Currently unavailable

7

Homelite GM010021

SCREW

Note: Torque Specs: 5-20 In/Lbs; 5-2.3 Nm

$1.49

$

Usually ships in 3-7 days

0

8

Homelite GM012464

SCREW

Note: Torque Specs: 26-35 In/Lbs; 2.9-4.0 Nm

$

$

Currently unavailable

9

Homelite GM235503

SCRAPER BAR

$

$

Currently unavailable

10

Homelite GM237002

HOUSING

$

$

Currently unavailable

11

Homelite GM235211

ROTOR L.H.

$

$

Currently unavailable

12

Homelite GM235212

COVER A

$

$

Currently unavailable

13

Homelite GM235210

ROTOR R.H.

$

$

Currently unavailable

14

Homelite GM230338

GEAR CASE HSG.

$

$

Currently unavailable

15

Homelite GM062204

SNAP RING

$

$

Currently unavailable

16

Homelite GM237607

COLLAR

$

$

Currently unavailable

17

Homelite GM071008

BEARING

$

$

Currently unavailable

18

Homelite GM070006

BEARING
(Superseded to UP06387)

$

$

Not available

19

Homelite GM236304

PINION GEAR

$

$

Currently unavailable

20

Homelite GM012463

SCREW

Note: Torque Specs: 5-20 In/Lbs; 5-2.3 Nm

$

$

Currently unavailable

21

Homelite GM012462

SCREW

Note: Torque Specs: 26-35 In/Lbs; 2.9-4.0 Nm

$

$

Currently unavailable

22

Homelite GM237401

GASKET GEARBOX

$

$

Currently unavailable

23

Homelite GM080009

SEAL

$8.49

$

Usually ships in 3-7 days

0

24

Homelite GM060005

RING

$

$

Not available

25

Homelite GM070011

BEARING

$

$

Currently unavailable

26

Homelite GM237608

COLLAR

$

$

Currently unavailable

27

Homelite GM236303

SHAFT & GEAR

$

$

Currently unavailable

28

Homelite GM070011

BEARING

$

$

Currently unavailable

29

Homelite GM080009

SEAL

$8.49

$

Usually ships in 3-7 days

0

30

Homelite GM010024

SCREW

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$3.99

$

Usually ships in 3-7 days

0

31

Homelite GM030053

BOLT

$

$

Currently unavailable

32

Homelite GM062205

SNAP RING

$

$

Currently unavailable
