23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) THRUST FRAME ASSEMBLY Parts Diagram

Directional Drill with Cab

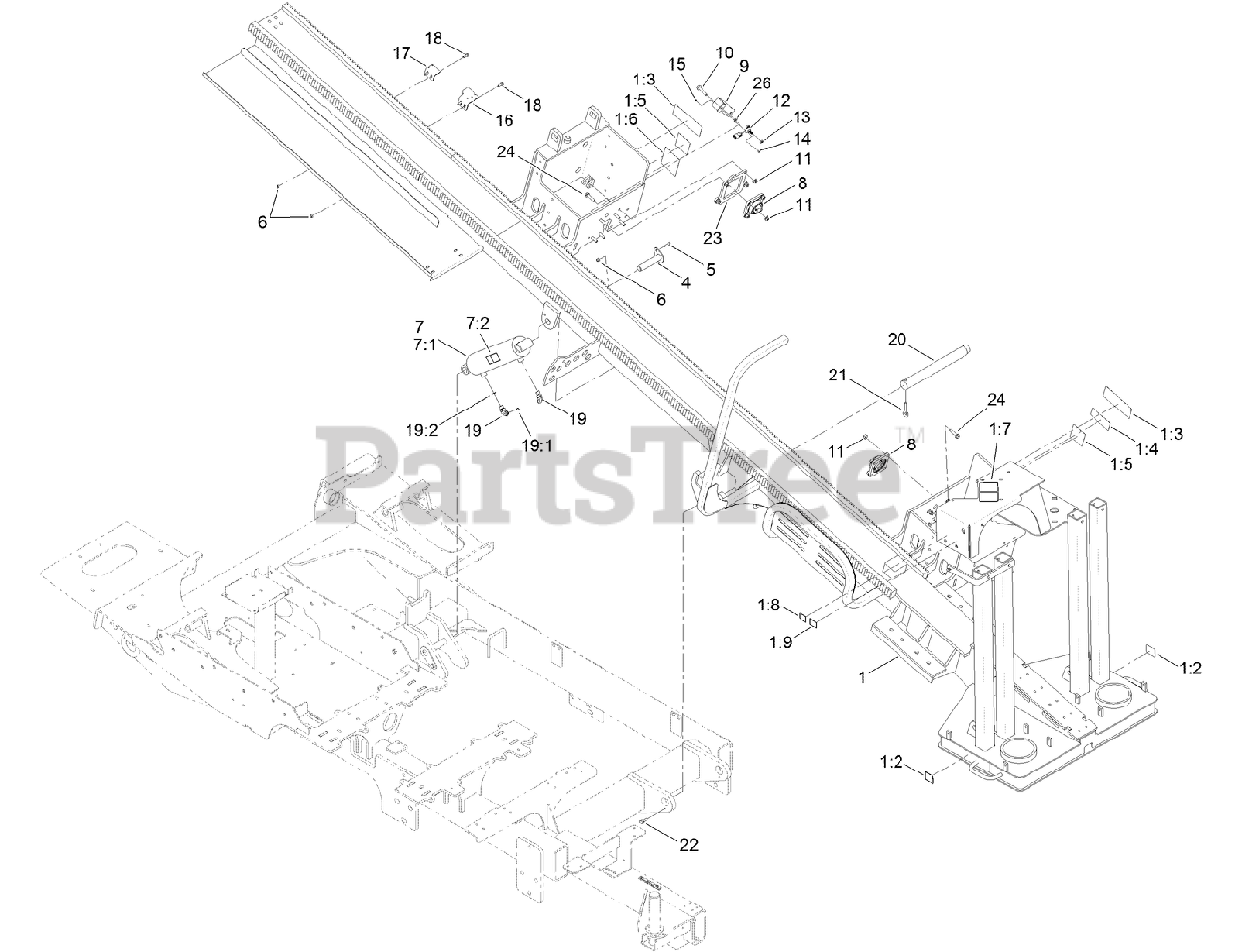

THRUST FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 127-0931

THRUST FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

1:3

Toro 125-6130

DECAL-DANGER, HAZARDOUS AREA

$

$

Currently unavailable

1:4

Toro 125-6128

DECAL-WARNING, HYDRAULIC PRESSURE

$

$

Currently unavailable

1:5

Toro 125-6107

DECAL-WARNING, CRUSHING

$

$

Currently unavailable

1:6

Toro 125-6109

DECAL-SHOCK DANGER

$

$

Currently unavailable

1:7

Toro 125-6111

DECAL-STAKEDOWN SET UP

$

$

Currently unavailable

1:8

Toro 125-6123

DECAL-PIPE RETURN, CLEAR

$

$

Currently unavailable

1:9

Toro 125-6124

DECAL-PIPE BREAKOUT, CLEAR

$

$

Currently unavailable

4

Toro AU117944

PIN-PIVOT

$

$

Currently unavailable

5

Toro 33104-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

6

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 127-0933

LIFT CYLINDER ASM

$

$

Not available

7:1

Toro AU116296

HYD CYLINDER ASM
(Superseded to 127-0933)

$

$

Not available

7:2

Toro 125-6115

DECAL-CAUTION, CYLINDER LOCK

$

$

Currently unavailable

8

Toro AU121325

BEARING-FLANGED Y, SQUARE

$

$

Currently unavailable

9

Toro AU124265-03

PLATE-MOUNTING

$

$

Not available

10

Toro 33106-060

SCREW-HHF

$16.99

$

Usually ships in 3-6 days

0

11

Toro 115-1115

NUT-LOCK, HHF

$2.99

$

Usually ships in 3-6 days

0

12

Toro 130-4461

SENSOR-ROTARY

$

$

Not available

13

Toro 112-8617

NUT-HEX

$

$

Currently unavailable

14

Toro AU440-1088

SCREW

$0.99

$

Usually ships in 3-6 days

0

15

Toro 32149-9

NUT-HEX, KEPS

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU122460-03

PLATE-MOUNT, PROXIMITY SWITCH

$

$

Currently unavailable

17

Toro AU122537-03

PLATE-MOUNT, SWITCH

$

$

Currently unavailable

18

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

19

Toro 340-130

FITTING-ELBOW 90

$143.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 1 left!

0

19:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

20

Toro AU118521

PIN-PIVOT, MAIN

$

$

Currently unavailable

21

Toro AUH313981

PIN-RETAINER

$68.99

$

Usually ships in 3-6 days

0

22

Toro 33105-030

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

23

Toro 125-6511-03

PLATE-SUPPORT, BEARING

$

$

Currently unavailable

24

Toro 33106-050

SCREW-HHF

$

$

Currently unavailable

26

Toro 33096-00

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0
