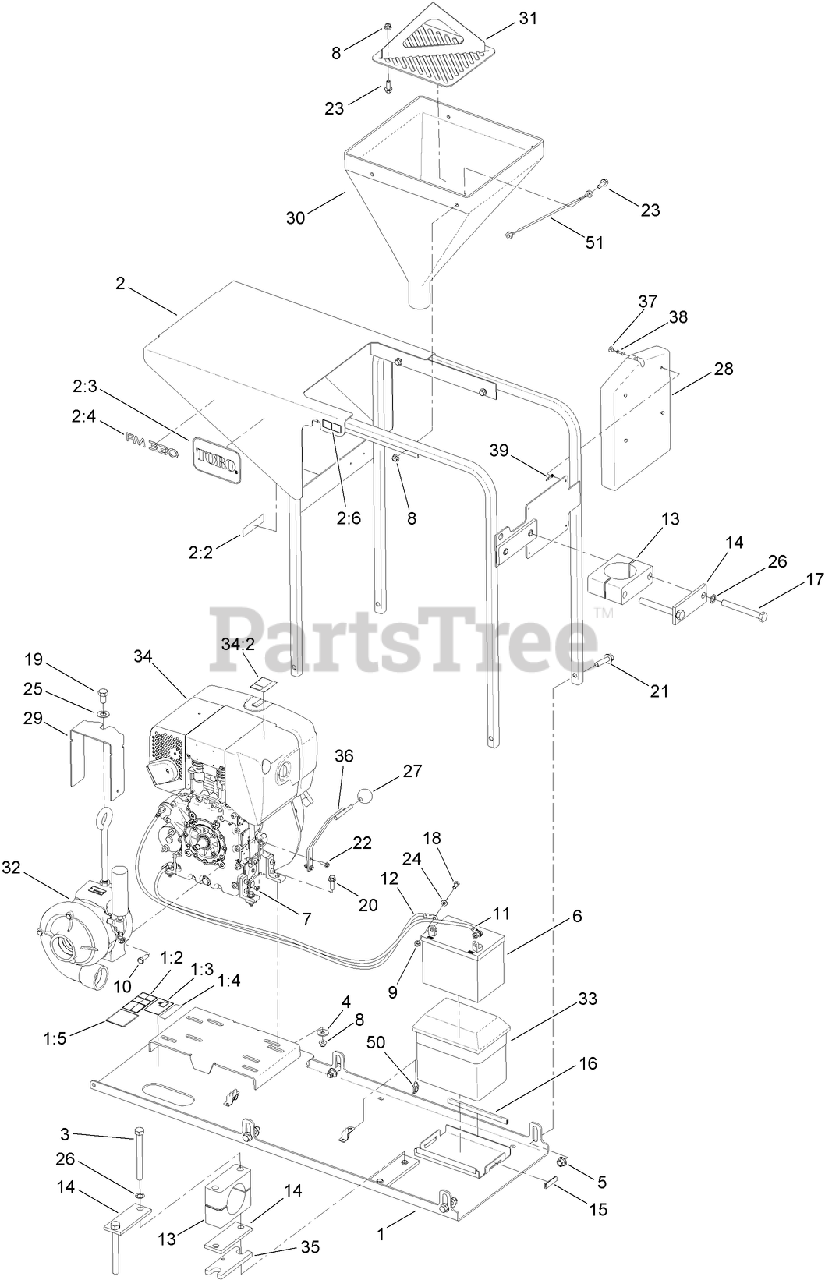

23892 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 313000001 - 313999999) (2013) Frame, Engine and Hopper Assembly Parts Diagram

Diesel-Powered Fluid Mixer

Frame, Engine and Hopper Assembly Parts Diagram

  • Title

1

Toro 127-0987

BASE FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-6155

DECAL-WARNING, MIXER

$

$

Currently unavailable

1:3

Toro 125-6156

DECAL-DRAIN

$

$

Currently unavailable

1:4

Toro 119-0217

DECAL-DANGER

$5.99

$

Usually ships in 3-6 days

0

1:5

Toro 125-6136

DECAL-LOW SULFER DIESEL

$

$

Currently unavailable

2

Toro 127-5340

HOPPER SUPPORT ASM

$

$

Not available

2:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

2:3

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

2:4

Toro 125-6170

DECAL

$

$

Currently unavailable

2:6

Toro 125-6171

Decal-Warning, Puncture

$

$

Currently unavailable

3

Toro 1-800344

SCREW

$17.99

$

Usually ships in 3-6 days

0

4

Toro 93-8806

WASHER-HARDENED

$2.49

$

In Stock, only 2 left!

0

5

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

6

BATTERY

Note: Not serviced separately

$

$

Not available

6

BATTERY

Note: Obtain locally.

$

$

Not available

7

Toro 120-9645

NUT-HHF

$0.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 120-9635

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 122-0215

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

12

Toro 122-0216

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

13

Toro 125-4502

CLAMP-PIPE

$

$

Currently unavailable

14

Toro 125-4503-03

PLATE-CLAMP

$

$

Currently unavailable

15

Toro 127-0997

TRIM-STRAP, BATTERY

$

$

Currently unavailable

16

Toro 127-5315

TRIM-TANK

$

$

Currently unavailable

17

Toro 127-5336

SCREW-HH

$

$

Currently unavailable

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 327-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

20

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

21

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

22

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

23

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

26

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

27

Toro AU305045

KNOB

$

$

Currently unavailable

28

Toro AU103216

HOLDER-MANUAL, OPERATOR

$86.99

$

Usually ships in 3-6 days

0

29

Toro AU10MM3204-01

GUARD-COUPLER, ROTATING

$

$

Currently unavailable

30

Toro AU10MM3230

HOPPER-MIX

$

$

Currently unavailable

31

Toro AU10MM3235-01

CUTTER-BAG

$

$

Currently unavailable

32

Toro AU10MM3304

PUMP ASM

$

$

Currently unavailable

33

Toro AU10MM3305

BOX-BATTERY
(Superseded to 116-6673)

$52.99

$

Usually ships in 3-6 days

0

34

Toro 130-4522

ENGINE ASM

$

$

Currently unavailable

34

Toro AU10MM3501

ENGINE-DIESEL

$

$

Currently unavailable

34:2

Toro 125-6177

DECAL-WARNING, THROTTLE

$

$

Currently unavailable

35

Toro AU10MM3505-03

SPACER

$

$

Currently unavailable

36

Toro AU111411-03

HANDLE-THROTTLE

$

$

Currently unavailable

37

Toro AU151-522

RIVET

$0.99

$

Usually ships in 3-6 days

0

38

Toro AUR46463

POST-MANUAL

$2.49

$

Usually ships in 3-6 days

0

39

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

50

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

51

Toro 92-5971

LANYARD-GATE

$32.99

$

Usually ships in 3-6 days

0
