23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) Lubrication Oil Pump and Governor Assembly Parts Diagram

Diesel-Powered Fluid Mixer

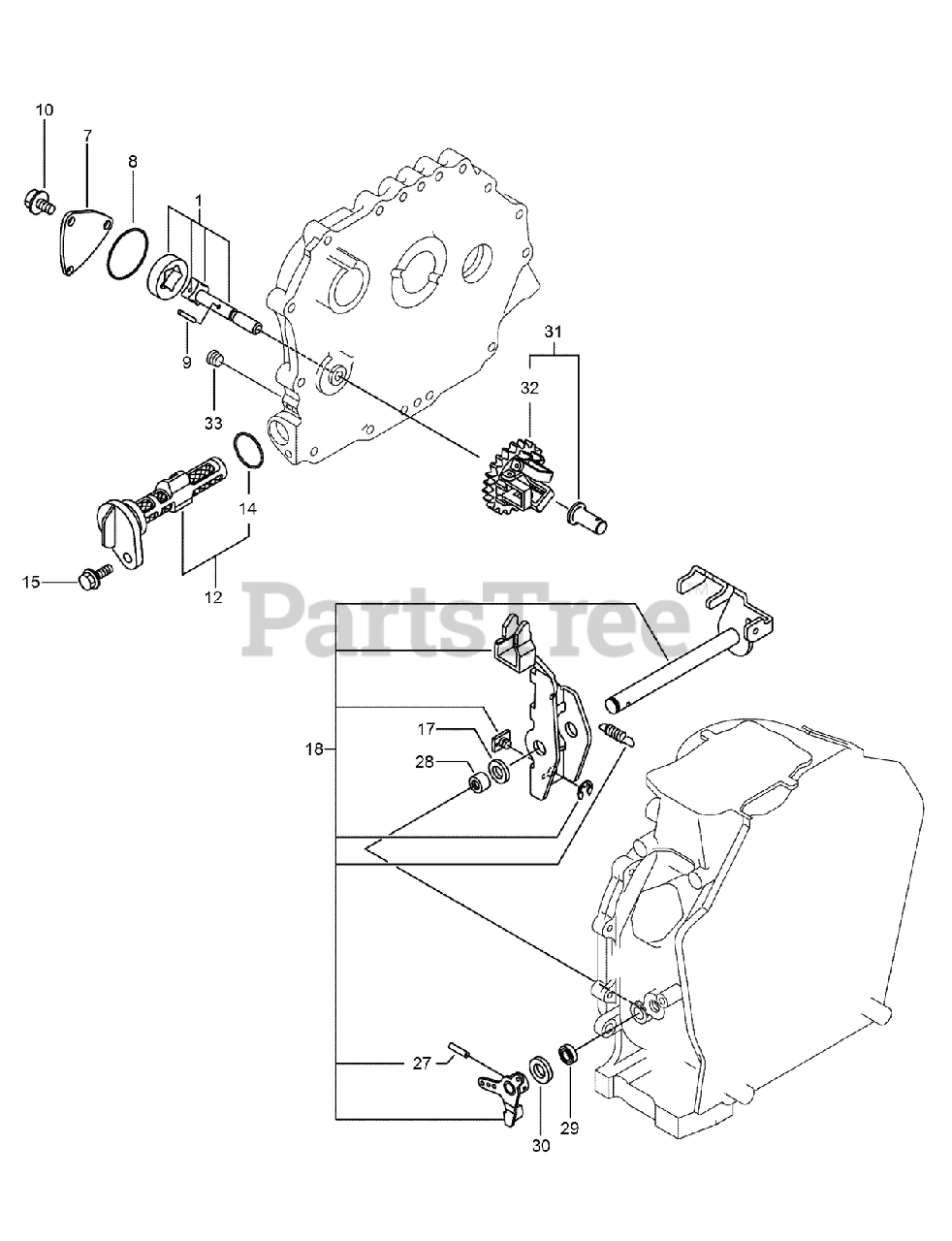

Lubrication Oil Pump and Governor Assembly Parts Diagram

  • Title

1

Toro 136-8191

OIL PUMP ASM

$86.99

$

Usually ships in 3-6 days

0

7

Toro 136-8098

COVER-PUMP, OIL

$21.99

$

Usually ships in 3-6 days

0

8

Toro 136-8099

O-RING

$6.49

$

Usually ships in 3-6 days

0

9

Toro 136-8238

PIN-PARALLEL

$4.49

$

Usually ships in 3-6 days

0

10

Toro 125-7206

BOLT

$2.49

$

Usually ships in 3-6 days

0

12

Toro 136-8100

OIL FILTER ASM

$21.99

$

Usually ships in 3-6 days

0

14

Toro 136-8252

O-RING

$4.49

$

Usually ships in 3-6 days

0

15

Toro 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0

17

Toro 136-8109

WASHER

$4.99

$

Usually ships in 3-6 days

0

18

Toro 136-8139

GOVERNOR LEVER ASM

$631.99

$

Usually ships in 3-6 days

0

27

Toro 136-8240

PIN-TAPER

$3.49

$

Usually ships in 3-6 days

0

28

Toro 136-8217

BEARING-NEEDLE

$33.99

$

Usually ships in 3-6 days

0

29

Toro 136-8110

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

30

Toro 136-8218

WASHER-THRUST

$21.99

$

Usually ships in 3-6 days

0

31

Toro 136-8269

GOVERNOR ASM

$102.99

$

Usually ships in 3-6 days

0

32

Toro 136-8069

GOVERNOR WEIGHT ASM

$113.99

$

Usually ships in 3-6 days

0

33

Toro 125-7195

PLUG

$3.49

$

Usually ships in 3-6 days

0
