23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) RECOIL STARTER ASSEMBLY Parts Diagram

Diesel-Powered Fluid Mixer

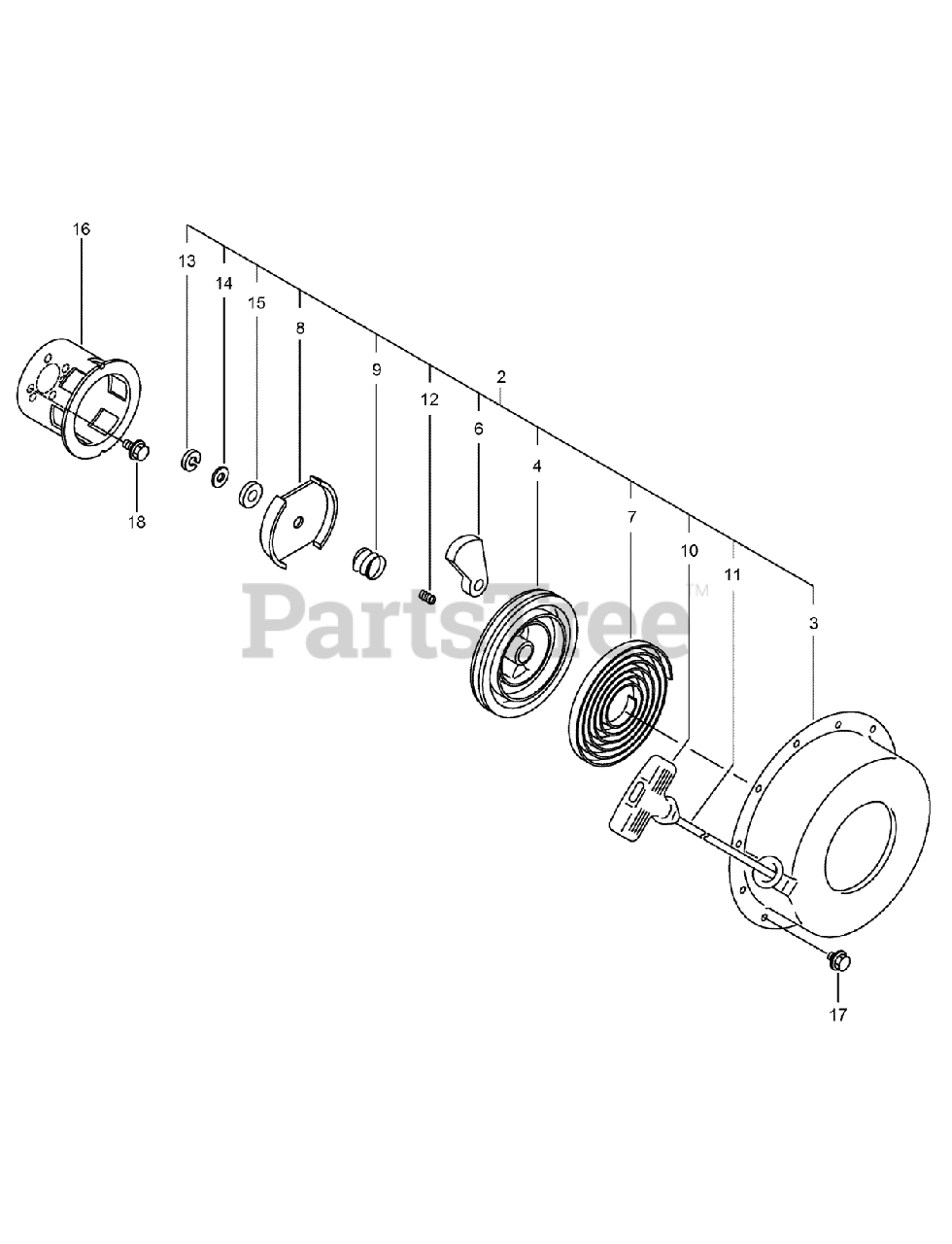

RECOIL STARTER ASSEMBLY Parts Diagram

  • Title

2

Toro 136-8205

RECOIL ASM

$562.99

$

Usually ships in 3-6 days

0

3

Toro 136-8206

CASE-STARTER

$255.99

$

Usually ships in 3-6 days

0

4

Toro 136-8207

REEL-RECOIL

$118.99

$

Usually ships in 3-6 days

0

6

Toro 136-8208

RATCHET

$15.99

$

Usually ships in 3-6 days

0

7

Toro 136-8164

SPRING-SPIRAL

$64.99

$

Usually ships in 3-6 days

0

8

Toro 136-8209

GUIDE-RATCHET

$29.99

$

Usually ships in 3-6 days

0

9

Toro 136-8210

SPRING-FRICTION

$7.49

$

Usually ships in 3-6 days

0

10

Toro 136-8165

KNOB-STARTER

$48.99

$

Usually ships in 3-6 days

0

11

Toro 136-8212

ROPE-STARTER

$45.99

$

Usually ships in 3-6 days

0

12

Toro 136-8213

SPRING-RETURN

$6.99

$

Usually ships in 3-6 days

0

13

Toro 136-8214

CIRCLIP

$8.99

$

Usually ships in 3-6 days

0

14

Toro 136-8215

WASHER

$8.49

$

Usually ships in 3-6 days

0

15

Toro 136-8216

WASHER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 136-8211

PULLEY-STARTER

$42.99

$

Usually ships in 3-6 days

0

17

Toro 136-8255

BOLT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 125-7206

BOLT

$2.99

$

Usually ships in 3-6 days

0
