23897 (FM 330) - Toro Diesel-Powered Fluid Mixer (SN: 400000000 - 999999999) VALVE AND PLUMBING ASSEMBLY Parts Diagram

Diesel-Powered Fluid Mixer

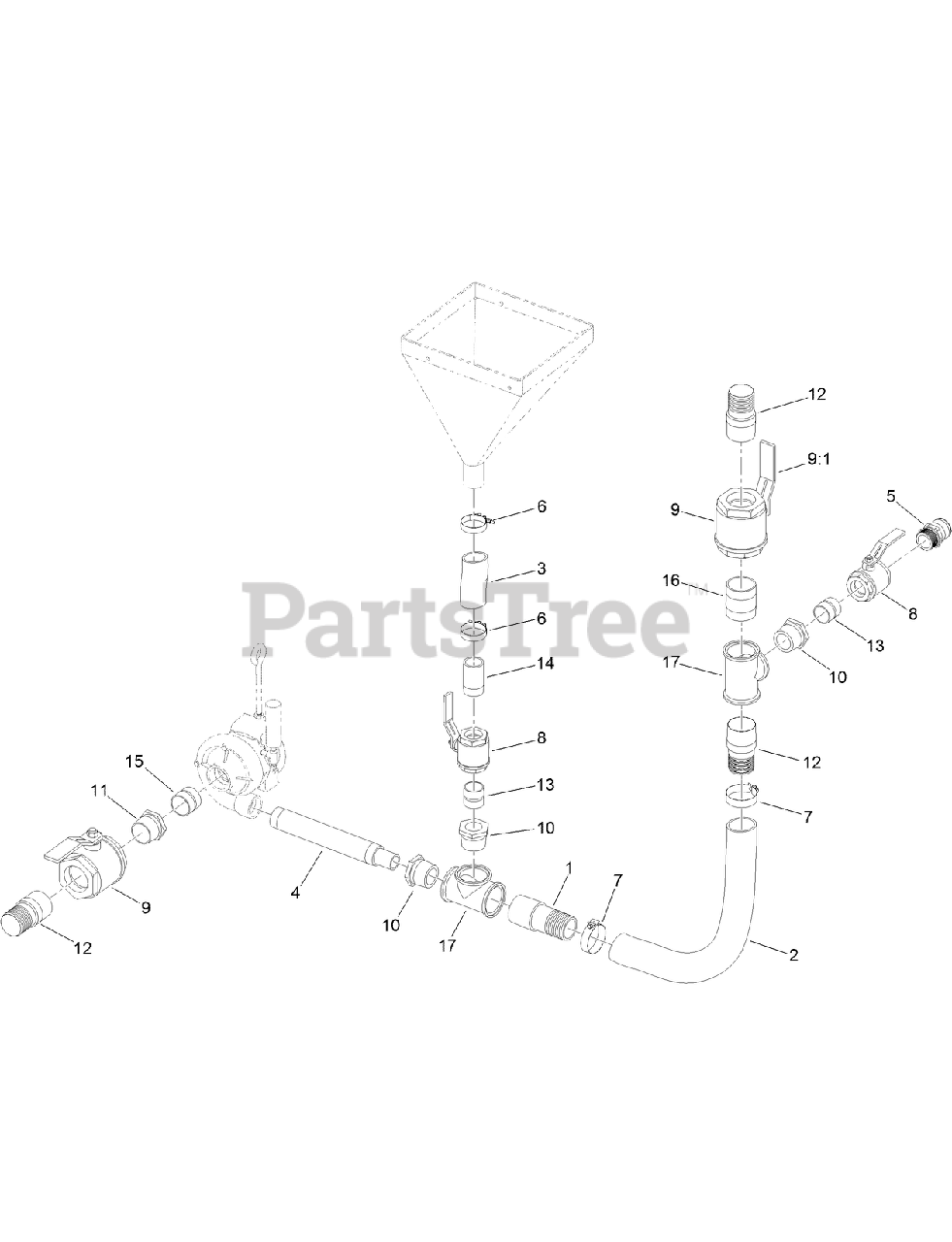

VALVE AND PLUMBING ASSEMBLY Parts Diagram

  • Title
1

Toro 127-5343

TUBE-VENTURI

$

$

Currently unavailable

2

Toro 127-5344

HOSE-SUCTION, WATER

$

$

Currently unavailable

3

Toro 127-5346

HOSE-SUCTION, WATER

$

$

Currently unavailable

4

Toro 127-5349

TUBE-JET

$

$

Currently unavailable

5

Toro AU110378

ADAPTER-MALE

$

$

Currently unavailable

6

Toro AU8CL14040

CLAMP, T-BOLT

$

$

Currently unavailable

7

Toro AU8CL15048

CLAMP-T BOLT

$

$

Currently unavailable

8

Toro AU8HV21032

VALVE-BALL (2.0)

$

$

Currently unavailable

9

Toro AU8HV21048

VALVE-BALL (3.0)

$

$

Not available

9:1

Toro AU8HV21048-01

HANDLE-BALL, 3.0 VALVE
(Superseded to AU8HV21048)

$

$

Not available

10

Toro AU8PB14832

BUSHING-PIPE

$

$

Currently unavailable

11

Toro AU8PB14840

BUSHING-PIPE

$

$

Currently unavailable

12

Toro AU8PN11348

NIPPLE-COMBINATION

$

$

Currently unavailable

13

Toro AU8PN23200

NIPPLE-PIPE

$

$

Currently unavailable

14

Toro AU8PN23208

NIPPLE-PIPE

$

$

Currently unavailable

15

Toro AU8PN24000

NIPPLE-PIPE

$

$

Currently unavailable

16

Toro AU8PN24800

NIPPLE-PIPE

$

$

Currently unavailable

17

Toro AU8PT10048

TEE-PIPE

$

$

Currently unavailable
