23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) 170-NU Cylinder Head Parts Diagram

FLEX Power Unit

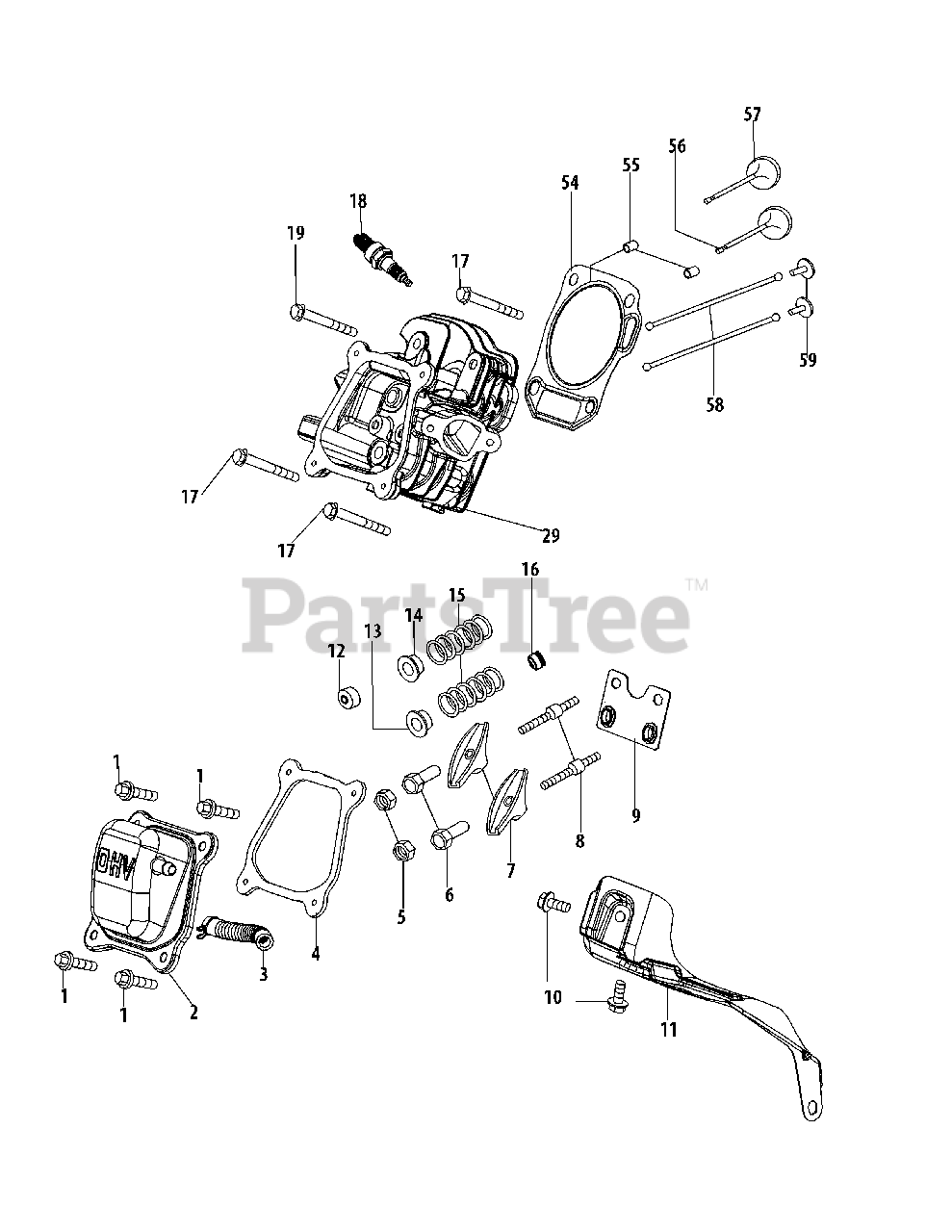

170-NU Cylinder Head Parts Diagram

  • Title

1

Troy-Bilt 710-04968

Bolt M6×16

$6.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11054B

Cylinder Head Cover

$14.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 751-15045

Venting House
(Superseded to 951-15045)

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 951-11565

Gasket, Valve Cover
(Superseded to 751P11565B)

$9.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 751-11124

Lock Nut

$8.99

$

In Stock, Qty 6

0

6

Troy-Bilt 751-11123

Nut

$9.99

$

In Stock, Qty 10

0

7

Troy-Bilt 951-11893

Rocker Arm

$7.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-04902

Rocker Arm Stud

$6.49

$

In Stock, Qty 12

0

9

Troy-Bilt 951-11895

Rocker Arm Base

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 10

0

11

Troy-Bilt 951-11113

Shroud

$8.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 951-12002

Rotator,Exhaust Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 951-12000

Intake Valve Spring Seat

$3.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 951-12003

Exhaust Valve Spring Seat

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 951-12004

Spring Valve
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

16

Troy-Bilt 921-04705

Oil Seal,Valve

$5.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-06080

Flange Bolt M8×60

$5.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 951-10292

Spark Plug(F6Rtc)
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-06384

Flange Bolt M8×70

$5.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 751-15047

Cylinder Head
(Superseded to 951-15047)

$134.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 951-11572

Gasket,Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 951-04090

Dowel Pin 10×16

$3.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 951-14099

Valve Intake
(Superseded to 751P14099A)

$3.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 751-15048

Valve Exhaust
(Superseded to 951-15048)

$13.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 751-15060

Push Rod
(Superseded to 951-15060)

$10.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 951-11899

Tappet

$7.99

$

In Stock, Qty 6

0

Troy-Bilt 952Z170-NU

Complete Engine

Note: (not shown)

$658.99

$

Usually ships in 3-6 days

0
