23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) FLEX Base Unit-Engine Drive Parts Diagram

FLEX Power Unit

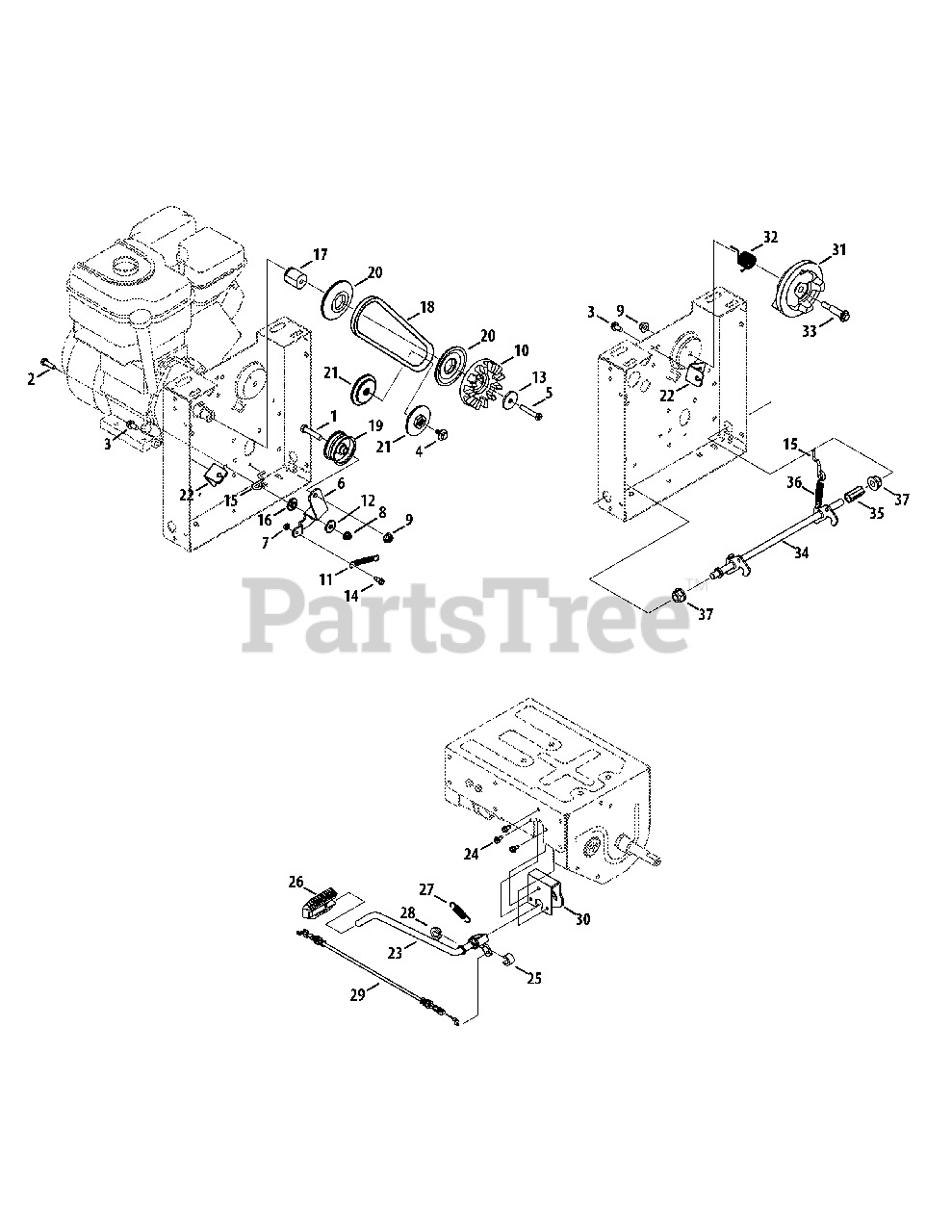

FLEX Base Unit-Engine Drive Parts Diagram

  • Title

1

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

3

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05339A

Hex Cap Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-06303

Hex Cap Screw, 5/16-24 x 1.88

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 787-03345A

Idler Bracket

$36.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

8

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 717-05249

Clutch

$48.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 732-05150A

Extension Spring, 2.675

$3.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-04117

Flat Washer, 1.0 OD x .331 ID

$3.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0505

Flat Washer, .340 x 1.50 x .150

$5.99

$

In Stock, Qty 6

0

14

Troy-Bilt 938-1225

Shoulder Screw, 1/4-20 x .3175 x .188
(Superseded to 738-1225)

$

$

Not available

15

Troy-Bilt 747-06556

Spring Hook Rod

$5.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

17

Troy-Bilt 750-06352

Spacer, .875 ID x 1.255 OD

$21.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 954-05070

V-Belt

$23.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 756-0117

Idler Pulley, 2.46 OD

$22.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 756-05103

Half Pulley, 3.4 Dia.

$16.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 756-05118

Half Pulley, 2.6 Dia.

$12.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 787-03297-0637

PTO Cable Bracket

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 647-05051B-0638

Lever Rod Assembly

$44.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 731-05470

Spacer, .500 ID x .500 Lg

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 731-11136A

Kickstand Cover

$5.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 732-05259

Extension Spring, .50 OD x 2.142

$6.99

$

In Stock, Qty 10

0

28

Troy-Bilt 741-04136B

Hex Flange Bearing, .500 ID

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 946-05194A

Control Cable, 12.75"

$26.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 787-03277A

Kick Stand Release Lever Bracket
(Superseded to 787-03277B)

$35.99

$

In Stock, Qty 7

0

31

Troy-Bilt 731-10483A

Lug Actuator

$15.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 732-05272

Torsion Spring, RH

$6.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 687-05104A

Lock Latch Assembly

$36.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 731-10603

Spacer, .515 ID x 1.500 LG

$5.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 732-04580

Extension Spring, .500 Dia x 2.733 Lg

$5.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 741-04453A

Flange Bearing, .50 ID

$4.49

$

Usually ships in 3-6 days

0
