23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) FLEX Base Unit-Handles Parts Diagram

FLEX Power Unit

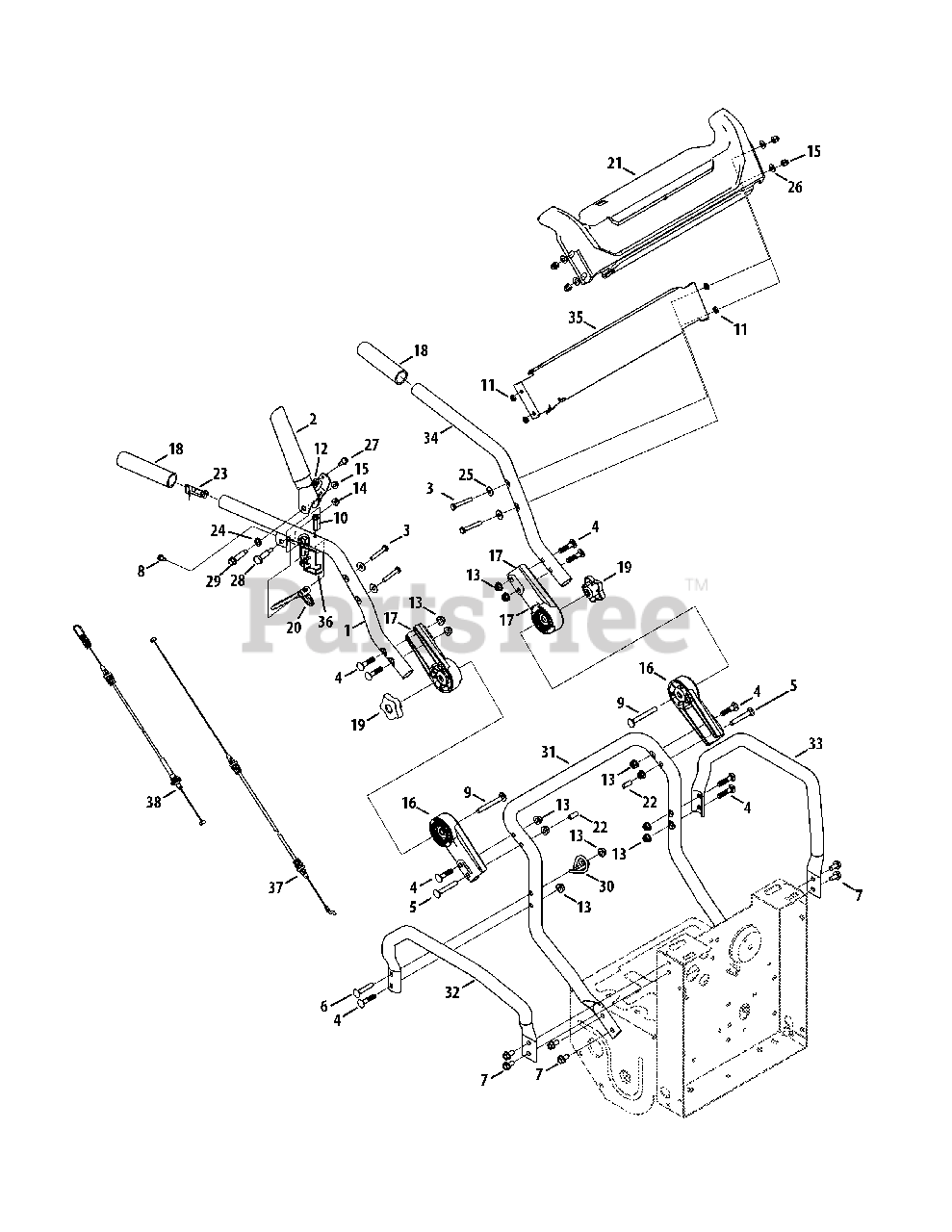

FLEX Base Unit-Handles Parts Diagram

  • Title

1

Troy-Bilt 649-05060A-0638

Upper Handle Assembly, RH

$71.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 687-05136

Lever Assembly, RH
(Superseded to 687-05136A)

$21.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0136

Hex Cap Screw, 1/4-20 x 1.75

$3.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

5

Troy-Bilt 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 5

0

8

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-06075

Carriage Bolt, 5/16-18 x 2.75

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-3288

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 15

0

11

Troy-Bilt 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-0392

Nut, 1/4-28, Lock

$6.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

16

Troy-Bilt 719-05180

Lower Handle Adjustment

$35.99

$

In Stock, Qty 10

0

17

Troy-Bilt 719-05195

Upper Handle Adjustment
(Superseded to 719-05195A)

$

$

Not available

18

Troy-Bilt 720-0274

Grip, 1.0 x 5.0

$11.99

$

In Stock, Qty 6

0

19

Troy-Bilt 720-05028

Star Knob, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 731-11124A

Drive Lever

$6.49

$

In Stock, Qty 13

0

21

Troy-Bilt 731-11125

Handle Cover

$25.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt n/a

Cap

$

$

Currently unavailable

23

Troy-Bilt 732-05328

Spring, Button Plug

$9.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

25

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 10

0

26

Troy-Bilt 936-0463

Flat Washer, .250 x .630 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

27

Troy-Bilt 738-04425

Shoulder Bolt, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 938-0572

Shoulder Screw, .374 x 1.16
(Superseded to 738-0572)

$

$

Not available

29

Troy-Bilt 938-1226

Shoulder Screw,, 1/4-20 x .375 x 1.355

$7.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 747-06516A

Rope Guide

$6.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 749-05271A-0638

Lower Handle

$58.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 749-05327A-0638

Frame Tube, RH
(Superseded to 749-05327-0638)

$37.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 749-05328A-0638

Frame Tube, LH
(Superseded to 749-05328-0638)

$39.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 749-05404-0638

Upper Handle, LH

$32.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 787-03375A-0637

Handle Panel
(Superseded to 787-03375B-0637)

$48.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 787-03443-0638

Cable Support Bracket

$12.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 946-05219

Engagement Cable

$31.99

$

In Stock, only 4 left!

0

38

Troy-Bilt 946-05220

Drive Cable

$42.99

$

Usually ships in 3-6 days

0
