23A-1AXA711 - Troy-Bilt FLEX Power Unit (2015) FLEX Base Unit-Transmission & Wheels Parts Diagram

FLEX Power Unit

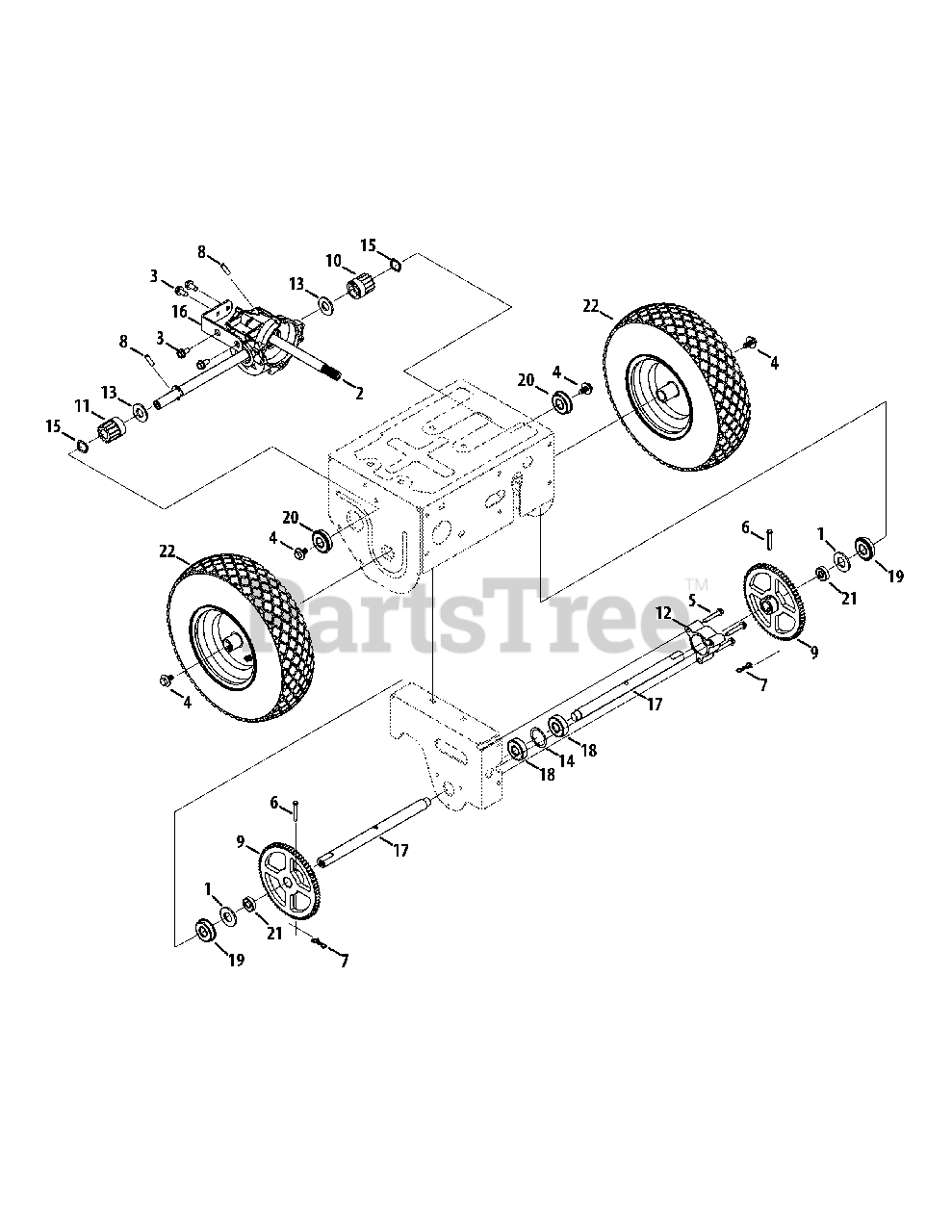

FLEX Base Unit-Transmission & Wheels Parts Diagram

  • Title

1

Troy-Bilt 2969

Washer, .764 x 1.312 x .091

$3.49

$

In Stock, Qty 14

0

2

Troy-Bilt 918-07074

Transmission Assembly

$408.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05339A

Hex Cap Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.99

$

In Stock, Qty 13

0

6

Troy-Bilt 711-1364

Clevis Pin, 1/4 x 1.3725

$8.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 715-05041

Square Key, 1/4 x .845

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 917-04073A

Gear, 70 Tooth

$64.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 717-05276

Gear, Spur, 14T, LH
(Superseded to 917-05276)

$20.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 917-05277

Gear, Spur, 14T, RH

$20.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 718-04261

Cup, Bearing

$21.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 736-04376

Flat Washer, .677 x 1.375 x .120

$6.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 736-04516

Washer, 1.25 x 1.57 x .01

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-05127

Wave Washer, .681 x .869 x .014

$5.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 787-03357-0637

Transmission Bracket
(Superseded to 787-03357B)

$9.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 738-05120

Axle, .75 OD x 10.95 Lg

$32.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 741-04547

Ball Bearing

$10.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 741-05143A

Ball Bearing, 75 x 40 x 12

$8.99

$

In Stock, Qty 6

0

20

Troy-Bilt 941-0563

Ball Bearing, 17 x 40 x 12

$38.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 950-04191

Spacer, .76 ID x 1.16 OD x .25

$6.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 934-05155

Wheel, 13 x 4

$155.99

$

Usually ships in 3-6 days

0
