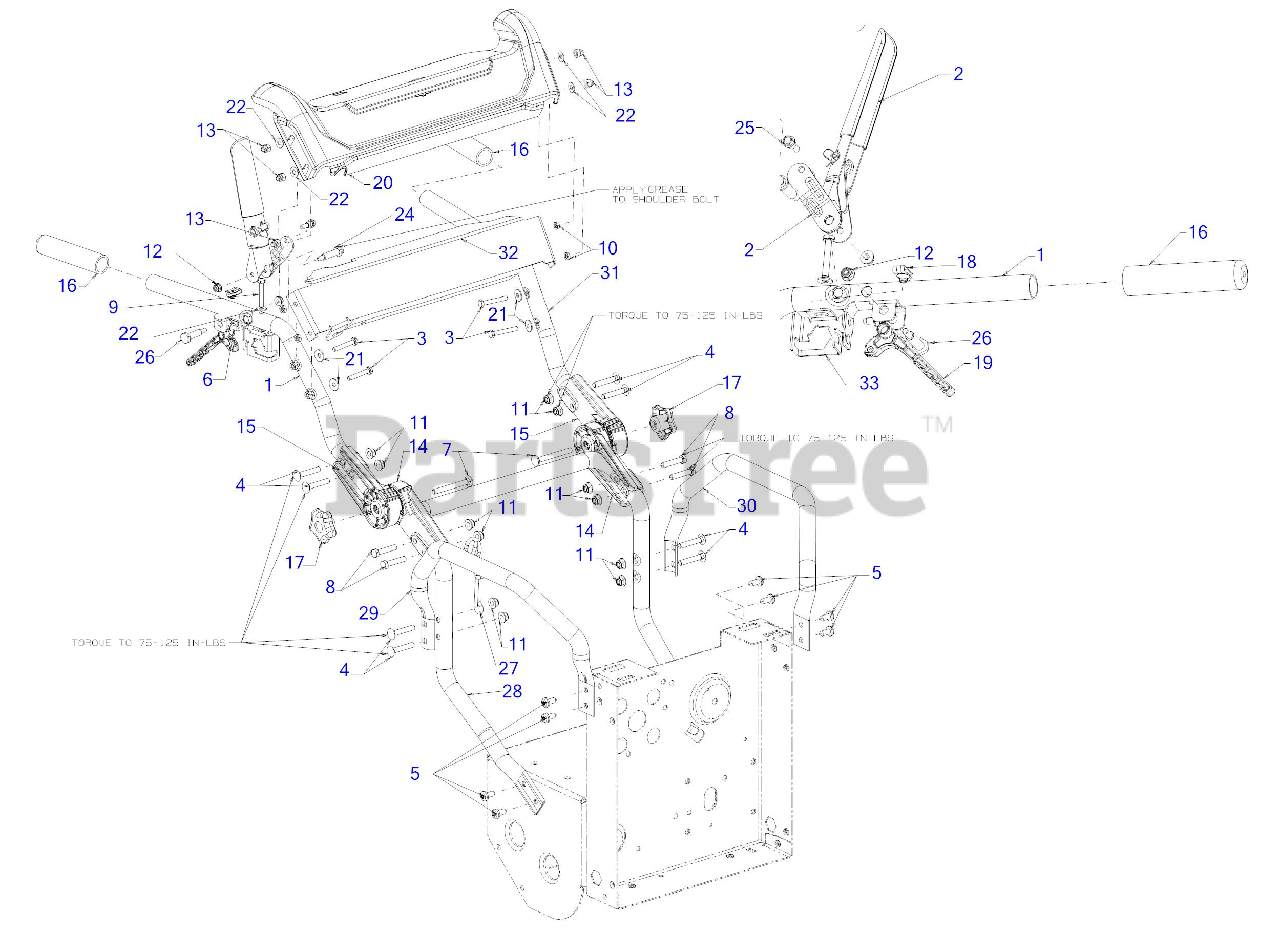

23A-1AXA711 - Troy-Bilt FLEX Power Unit (2017) Handle Parts Diagram

FLEX Power Unit

Handle Parts Diagram

  • Title

1

Troy-Bilt 649-05060A-0638

UPPER HANDLE ASSEMBLY (RH)

$71.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 687-05222

LEVER LOCK ASSEMBLY

$34.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0136

HEX SCREW 1/4-20 x 1.75

$4.49

$

In Stock, Qty 14

0

4

Troy-Bilt 710-0458

CARRIAGE BOLT 5/16-18 x 1.75

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-05424

SCREW 5/16-18 x .750

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-06075

CARRIAGE BOLT 5/16-18 x 2.75 GR5

$7.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3288

BOLT 1/4-20X1.62 GR5

$7.49

$

In Stock, Qty 10

0

10

Troy-Bilt 912-0298

HEX NUT

$6.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

14

Troy-Bilt 719-05180

LOWER ADJUST HANDLE

$37.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 719-05195

HANDLE-UPPER ADJUST
(Superseded to 719-05195A)

$

$

Not available

16

Troy-Bilt 720-0274

GRIP

$12.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 720-05028

STAR KNOB- RED

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 726-3054

U-CLIP NUT

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 731-11124A

DRIVE CABLE LEVER

$6.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 731-11125

HANDLE COVER

$25.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 736-0270

SPRING WASHER BELL

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 936-0463

FLAT WASHER
(Superseded to 736-0463)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 738-05041A

SHOULDER BOLT .375X1.285:1/4-20

$6.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 938-0572

SHOULDER SCREW
(Superseded to 738-0572)

$

$

Not available

27

Troy-Bilt 747-06516A

ROPE GUIDE ROD

$6.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 749-05271A-0638

LOWER HANDLE

$62.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 749-05327-0638

CART FRAME TUBE (RH)

$37.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 749-05328-0638

CART FRAME TUBE (LH)

$39.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 749-05404-0638

UPPER HANDLE (LH)

$32.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 787-03375B-0637

HANDLE PANEL

$51.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 787-03443-0638

CABLE BRACKET

$13.99

$

In Stock, only 1 left!

0
