23AAAA8X711 - Troy-Bilt FLEX Mower Attachment (2015) FLEX Mower Attachment-Drive Attachment Parts Diagram

FLEX Mower Attachment

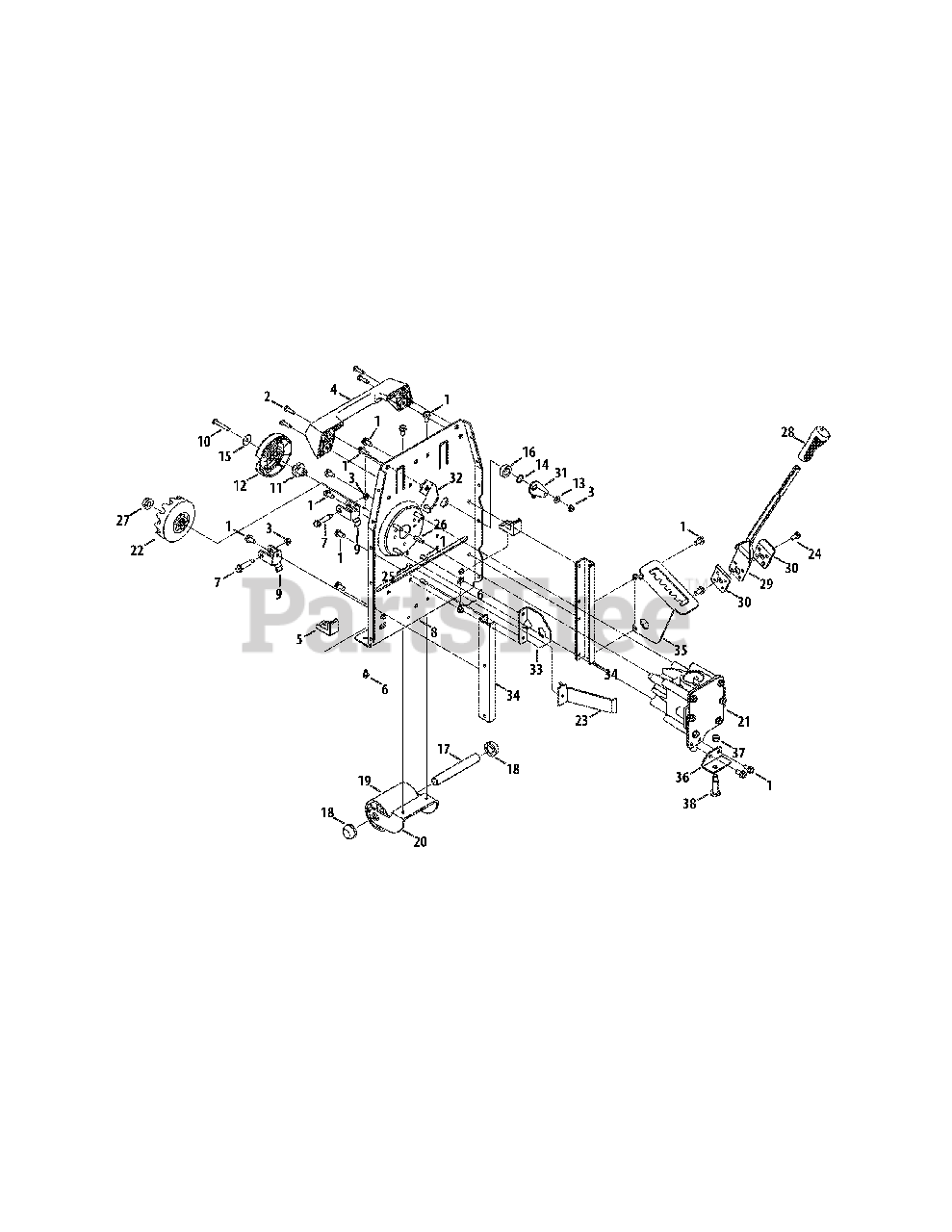

FLEX Mower Attachment-Drive Attachment Parts Diagram

  • Title

1

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-05074

Self-tapping Screw, 1/4-20 x 1.00

$3.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-10490

Rear Handle

$41.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 735-05069

Bumper Pad

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 938-1226

Shoulder Screw,, 1/4-20 x .375 x 1.355
(Superseded to 738-1226)

$8.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 787-03177B-0637

Frame Mounting Bracket
(Superseded to 787-03177D-0638)

$71.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 787-03195-0637

Support Bracket

$12.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0136

Hex Cap Screw, 1/4-20 x 1.75

$4.49

$

In Stock, Qty 14

0

11

Troy-Bilt 711-06319

Clutch Link Shaft

$9.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-10493A

Idler Clutch

$11.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-04353

Wave Washer, .65 ID x .855 x .010

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 736-3092

Flat Washer, .265 x 1.0 x .030

$4.49

$

In Stock, only 4 left!

0

16

Troy-Bilt 741-04237B

Hex Flange Bearing 5/8 PM

$7.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 711-06428

Roller Shaft, .75 x 5.440

$10.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

19

MTD 731-3305

Deck Roller

$34.99

$

In Stock, Qty 19

0

20

Troy-Bilt 787-03348-0637

Roller Bracket

$33.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 918-07117

Gearbox

$440.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 931-05304

Clutch Assembly

$89.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 787-03382B

Keeper Bracket

Variations

787-03382B-0637

Troy-Bilt 787-03382B-0637

BRACKET-KEEPER - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 710-05339A

Hex Cap Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 9

0

25

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-0602

Self-Tapping Screw, 5/16-18 x 1.00

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-04150

Flange Lock Nut, 1/2-13

$4.99

$

In Stock, Qty 11

0

28

Troy-Bilt 720-0311

Grip Handle, 1/2

$16.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 732-04418B

Deck Height Lever
(Superseded to 732-04418C)

$47.99

$

In Stock, Qty 12

0

30

Troy-Bilt 787-01521-0637

Pivot Lever Bracket
(Superseded to 787-06323-0637)

$9.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 787-03175B

Deck Engagement Bracket

$14.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 787-03181

Deck Cable Bracket

$5.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 787-03252A-0637

Shift Lift Bracket

$14.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 787-03338

Deck Channel Bracket

$34.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 787-03425

Height Adjustment Bracket

Variations

787-03425-0638

Troy-Bilt 787-03425-0638

BRACKET-HEIGHT ADJ - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 787-03429A

Keeper Bracket

Variations

787-03429A-0637

Troy-Bilt 787-03429A-0637

BRACKET-KEEPER - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 712-0375

Hex Lock Nut, 3/8-16, Centerlock

$4.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 738-1014

Shoulder Screw, .500 x 1.25 x 3/8-16

$4.49

$

In Stock, only 1 left!

0
